45
W301-0411E
Chapter B Chapter B
User Mode

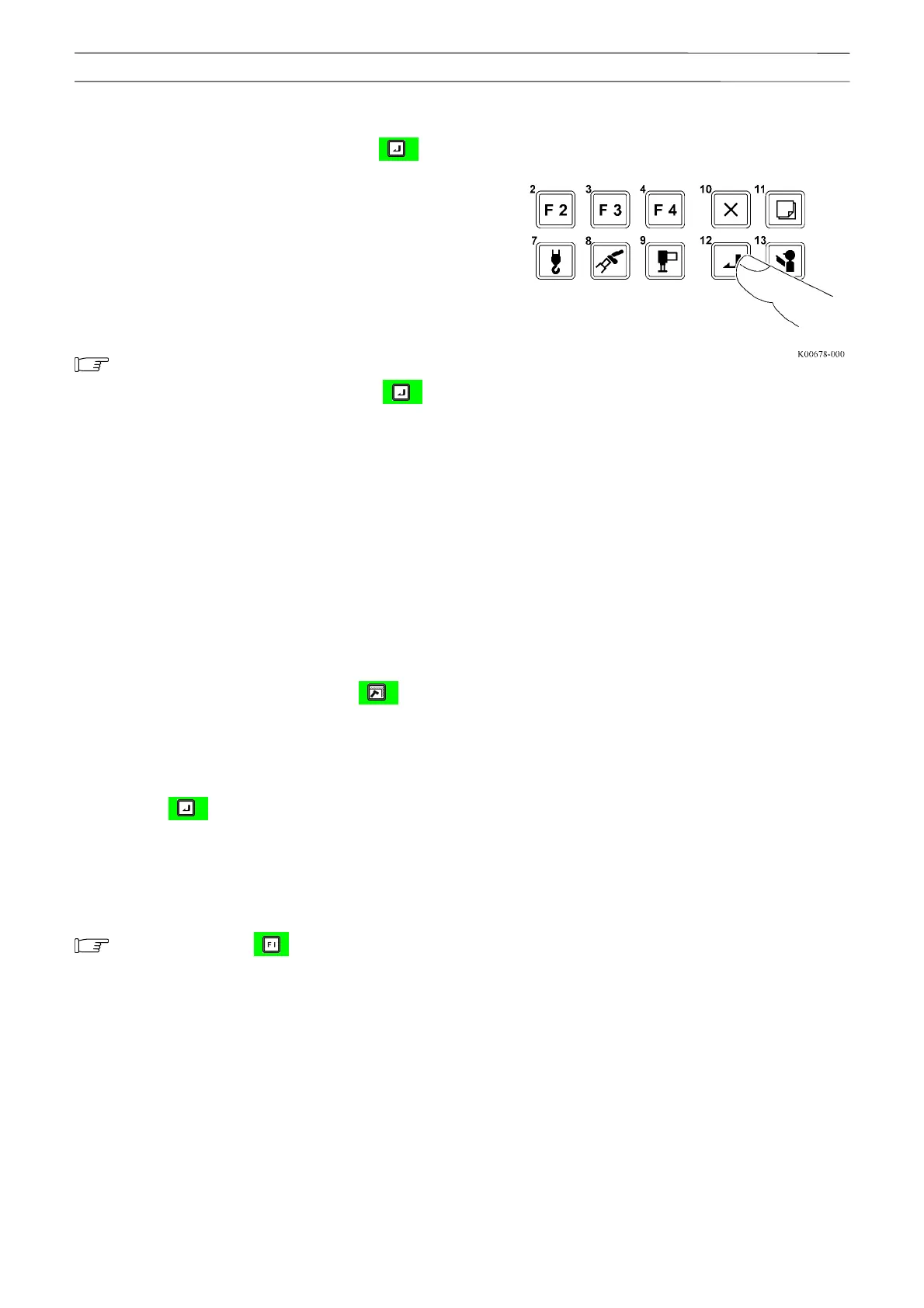

2. After you operate the boom (jib) to the desired boom
angle, height, and load radius, push the < > key
(set).
• The corresponding limit indicator flashes in the LED
display, and the work range limit is registered.
• After registration is completed, the pop-up window
closes and the AML returns to the crane operation
state.
If you select the item with the limit value already
registered, remember that pushing the < > key
(set) cancels the registration of the work range limit.
3. Move the boom (jib) within the limit range.
• The indicator lamp turns to staying lit.
• When the state of the crane reaches the registered
limit, the indicator lamp flashes.
The corresponding operation of the boom (jib)
automatically stops, and the warning code is shown
on the display panel. The AML built-in buzzer
repeats short beeps for 3 seconds.
4. To cancel the limit function, push the < > key
(working range limit) to select the item to be canceled.
• The pop-up window for work range limit registration
appears on the display panel.
5. Push the < > key (set).
• The corresponding limit indicator lamp goes out.
• The pop-up window closes and the AML returns to
the basic display.
When you push the < > key (clear), all the work
range limits are canceled.
To Next Page
