Chapter A Chapter A
Components of AML System
24
W301-0411E

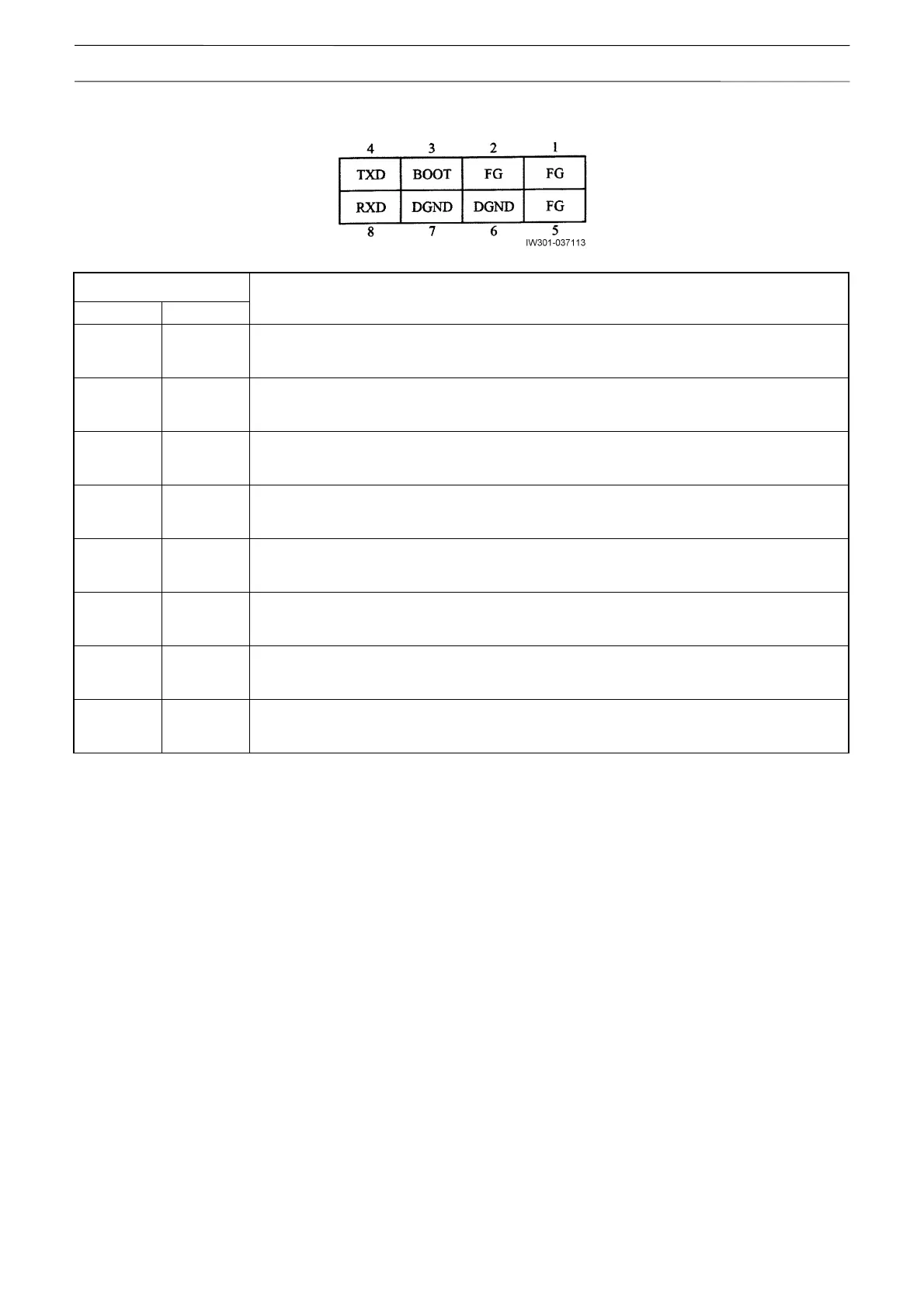

2.1.9 CN8 Connector (8-Pin)
CN8 connector
Pin No. Name
Signal names and functions
1 FG
(Spare)
2 FG
(Spare)
3 BOOT
Boot (Boot mode activation with GND connection)
For maintenance (data readout and rewriting)
4 TXD
RS232C communication
For maintenance (data readout and rewriting)
5 FG
(Spare)
6 DGND
Digital ground
For maintenance (data readout and rewriting)
7 DGND
Digital ground
For maintenance (data readout and rewriting)
8 RXD
RS232C communication
For maintenance (data readout and rewriting)
To Next Page
