3.3 Display Contents
The crane information contents displayed in the integrated information screen are shown in Fig. 3.3.1, and the
vehicle information contents are shown in Fig. 3.3.2. For the function specific display (slow stop adjustment,
over-front special performance, etc.), refer to the corresponding function specification.

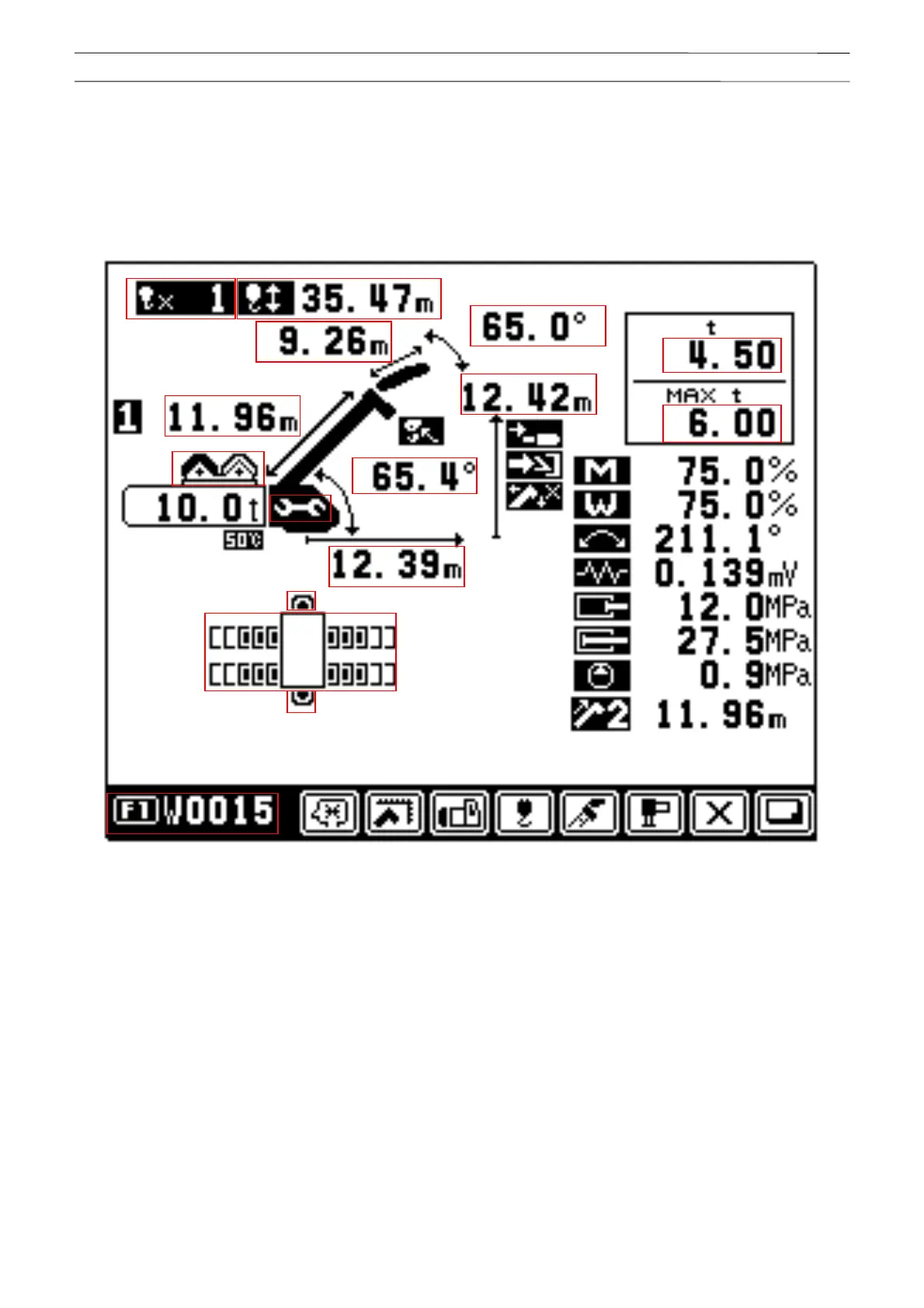

Fig. 3.3.1 Integrated information screen (Display contents)
[1
]:
Number of part lines
[2
]:
Hook movement
[3
]:
Jib length (Displayed only when jib operation is selected)
[4
]:
Jib angle display (Displayed only when jib operation is selected)
[5
]:
Boom length
[6
]:
Boom angle
[7
]:
Top sheave lift
[8
]:
Load radius
[9]:
Hoist medium load (Payload + Sling + Hook block)
[10
]:
Rated capacity = Max. hoist medium load
[11
]: Load moment ratio
[21]
[22]
[23]
[24]
[25] [26] [27] [28] [29] [30] [31] [32] [33]
[35]
[34]
[36]
[37]
[39]
[20]
[19]
[18]
[17]
[16]
[7]
[12]
[11]
[8]
[14]
[15]
[13]
[5]
[10]
[9]
[4]
[2]
[3]
[1]
[6]
[38]
