Tadano AML-C User Manual

Chapter A Chapter A
Components of AML System
2
W301-0411E

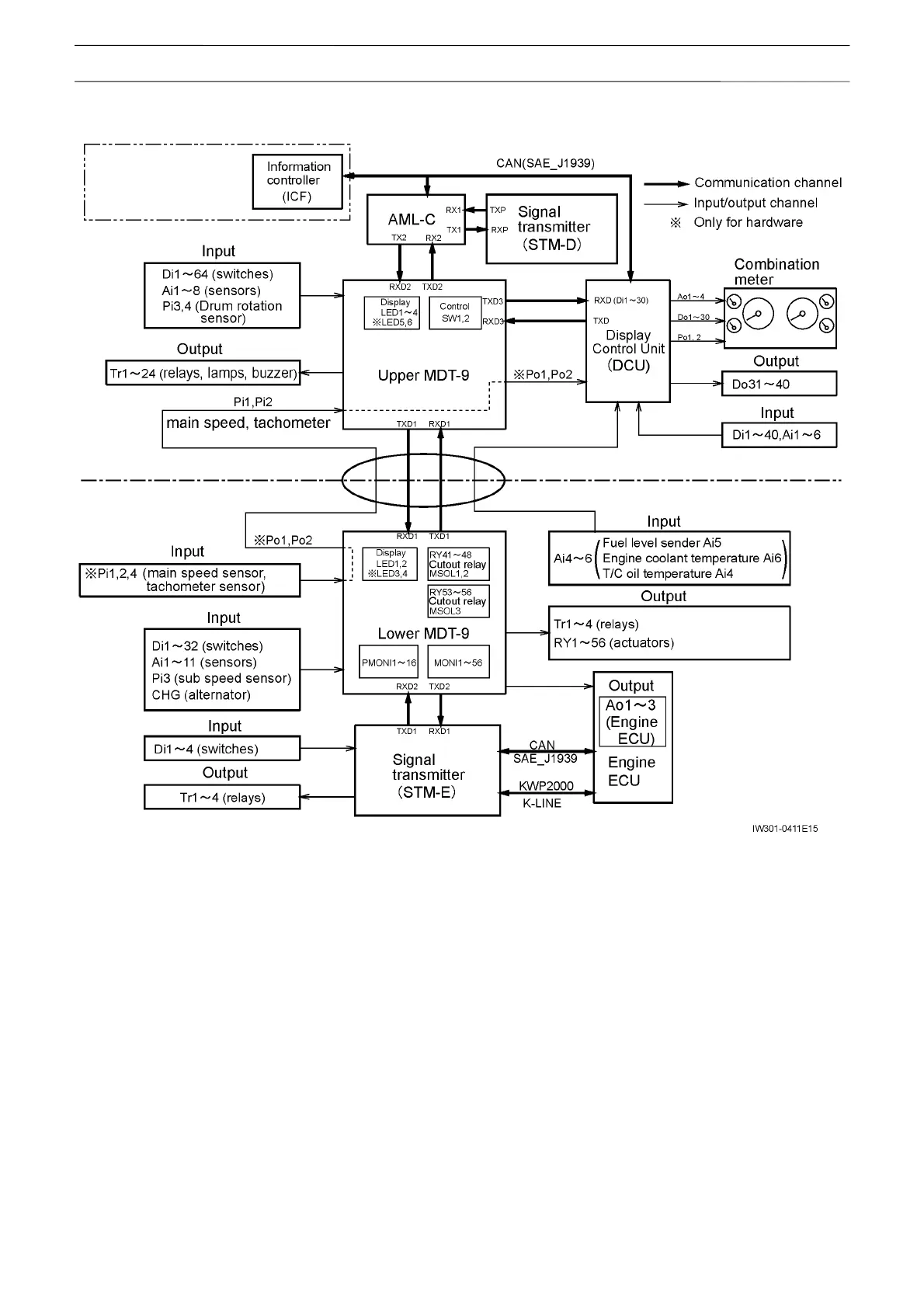

1.1.2 AML-C Block diagram
1. While the PTO switch is ON, AML-C and DCU give and take the data on the version No. of the DCU and error
occurring in the DCU.
For details of the data, refer to the "N-1 DCU" section in the service manual for the corresponding model.
2. The signal transmitter (STM-E) is common to all GR model.
For details of the data, refer to the "N-1 STM-E" section in the service manual for the corresponding model.
3. Communication between STM-E and ECU on the machine with Mitsubishi engine (GR-750XL-2,
GR-1000XL-2) is sent via K-LINE.

Tadano AML-C Specifications

General

Brand	Tadano
Model	AML-C
Category	Measuring Instruments
Language	English
