Tadano AML-C User Manual

Chapter A Chapter A
Components of AML System
23
W301-0411E

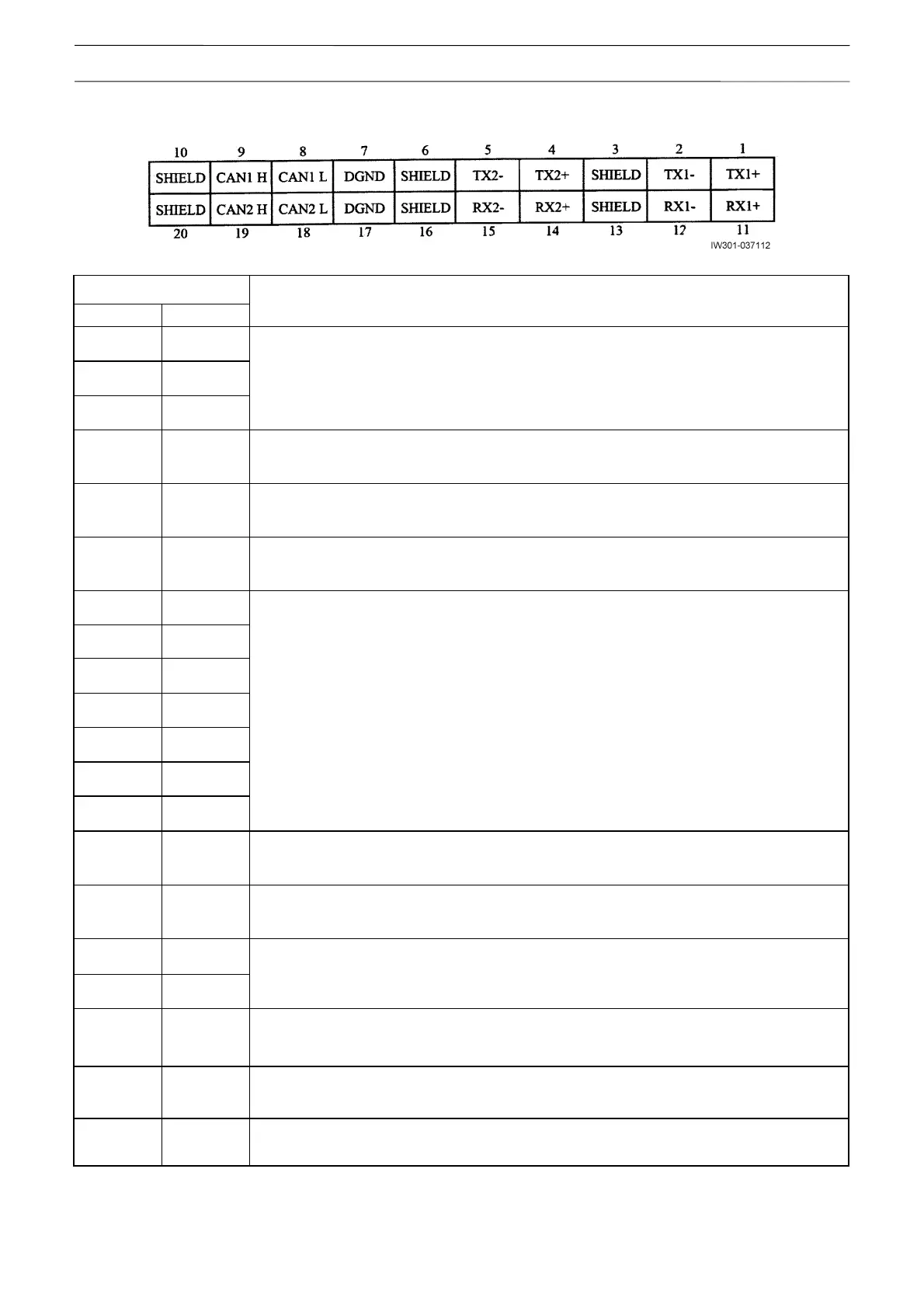

2.1.8 CN7 Connector (20-Pin)
CN7 connector
Pin No. Name
Signal names and functions
1 TX1+
2 TX1-
3 SHIELD
(Spare)
4 TX2+
- Signal name: Serial port 2 transmission (+) output signal
[Transmission data to MDT (Multiplex Data Transmitter)]
5 TX2-
Signal name: Serial port 2 transmission (-) output signal
[Transmission data to MDT (Multiplex Data Transmitter)]
6 SHIELD
- Signal name: Serial port 2 shield
Input voltage: DC 0 V
7 DGND
8 CAN1_L
9 CAN1_H
10 SHIELD
11 RX1+
12 RX1-
13 SHIELD
(Spare)
14 RX2+
- Signal name: Serial port 2 reception (+) input signal
[Reception data from MDT (Multiplex Data Transmitter)]
15 RX2-
- Signal name: Serial port 2 reception (-) input signal
[Reception data from MDT (Multiplex Data Transmitter)]
16 SHIELD
17 DGND
(Spare)
18 CAN2_L
CAN communication
19 CAN2_H
CAN communication
20 SHIELD
Shield
