27
W301-0411E
Chapter B Chapter B
User Mode

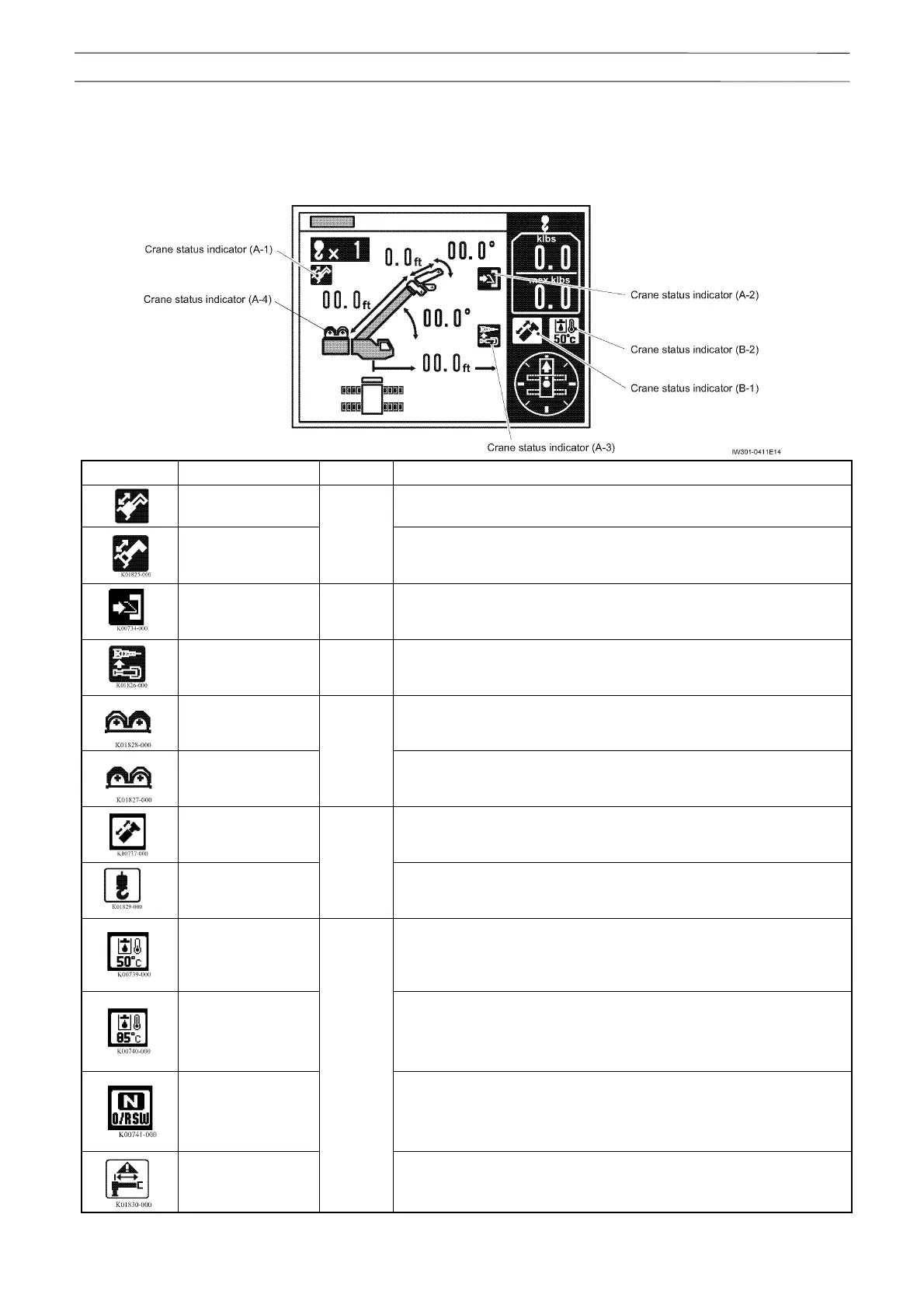

1.3 Operation Indicator Display
The crane state is displayed by the indicator (icon).
Operation indicators and displayed contents are as follows.
Icon Designation Position Display condition
Telescoping mode I
The boom telescoping mode I is selected.
Telescoping mode II
A-1
The boom telescoping mode II is selected.
Jib lock
A-2
Under the jib set state, the jib extension/retraction switch is set to "Ext".
and the jib offset cylinder is fully extended.
Jib dismount
A-3
The jib is dismounted from the boom, and the jib status switch is set to
"REMOVED".
Winch selection
(Main winch)
The main winch is selected.
Winch selection
(Auxiliary winch)
A-4
The auxiliary winch is selected during single top lift or jib lift.
Boom telescoping
control
The boom telescoping/auxiliary hoist control selector switch is set to
"Boom telescoping".
Auxiliary Winch
Control
B-1
The boom telescoping/auxiliary hoist control selector switch is set to
"Auxiliary winch".
Hydraulic oil
temperature 50°C
Flashes when the hydraulic oil temperature is between 122° F (50°C) and
185°F (85°C).
(If more than one icon are to appear in this area, they appear alternately
at each 3 seconds. )
Hydraulic oil
temperature 85°C
Flashes when the hydraulic oil temperature exceeds 185°F (85°C).
(If more than one icon are to appear in this area, they appear alternately
at each 3 seconds. )
Outrigger switch out of
neutral
Flashes when the extend/retract selector switch or jack/slide selector
switch is set to the positions other than neutral position.
(If more than one icon are to appear in this area, they appear alternately
at each 3 seconds. )
Outrigger state
emergency
registration
B-2
Flashes when the emergency outrigger control switch is set to "ON".
(If more than one icon are to appear in this area, they appear alternately
at each 3 seconds. )
To Next Page
