Tadano AML-C User Manual

Chapter A Chapter A
Components of AML System
22
W301-0411E

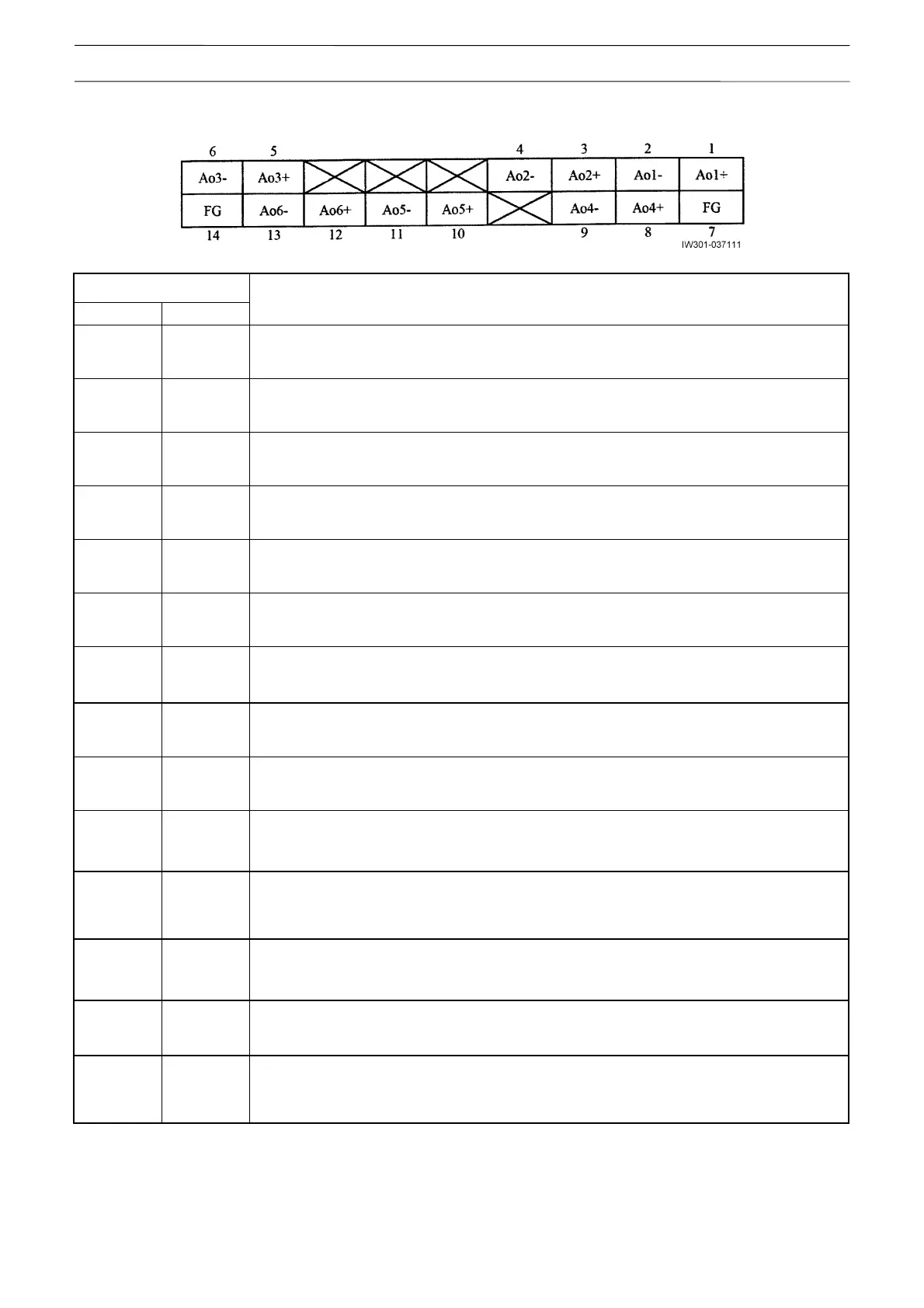

2.1.7 CN6 Connector (14-Pin)
CN6 connector
Pin No. Name
(Data No. #---)
Signal names and functions
1 Ao1+
(
#17804-1)
- Signal name: Swing right proportional solenoid valve
Drives the proportional reducing valve for right swing.
2 Ao1-
- Signal name: Swing right proportional solenoid valve COM
(Output return terminal)
3 Ao2+
(
#17804-2)
- Signal name: Swing left proportional solenoid valve
Drives the proportional reducing valve for left swing.
4 Ao2-
- Signal name: Swing left proportional solenoid valve COM
(Output return terminal)
5 Ao3+
(
#17804-9)
- Signal name: Boom raising proportional solenoid valve
Drives the proportional reducing valve for boom raising.
6 Ao3-
- Signal name: Boom raising proportional solenoid valve COM
(Output return terminal)
7 FG
Frame ground
8 Ao4+
(
#17804-10)
- Signal name: Boom lowering proportional solenoid valve
Drives the proportional reducing valve for boom lowering.
9 Ao4-
- Signal name: Boom lowering proportional solenoid valve COM
(Output return terminal)
10 Ao5+
(
#17804-16)
- Signal name: Swing relief proportional solenoid valve
Drives the proportional reducing valve for swing relief.
11 Ao5-
- Signal name: Swing relief proportional solenoid valve COM
(Output return terminal)
12 AO6+
(Spare)
13 AO6-
(Spare)
14 FG
Frame ground
