Chapter E Chapter E
Information and Data
189
W301-0411E

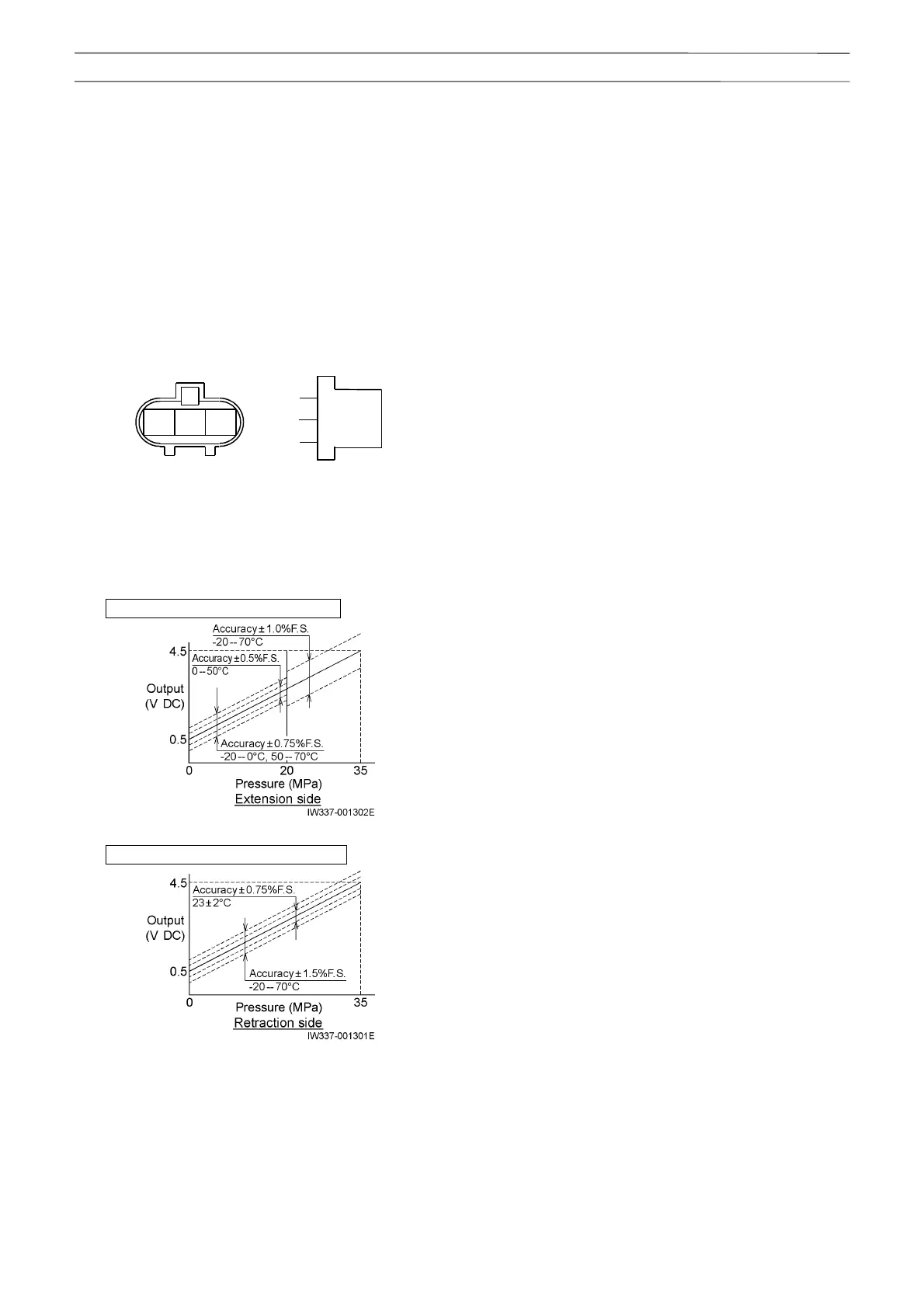

2.2.5 Pressure Sensor for Moment Detection
1. Set the PTO switch to "ON."
(Between R and B of pressure sensor connector,
voltage of DC 5 V is impressed.)
2. Measure the output voltage between W and B of
pressure sensor connector.
Pressure sensor (CN584) of extension side
elevating cylinder (361-801-10000)
Pressure sensor (CN585) of retraction side
elevating cylinder (361-801-60000)
WB R
M
R
W
B
+5V
GND
IW301-037119
出力
3. The W-B output voltage is proportional to the
elevation cylinder pressure. The specified
resistance values are as follows:
:Extension side (361-801-10000)
: Retraction side (361-801-60000)
△
1
361-801-10000
△
0
361-801-60000
Output
To Next Page
