Chapter D
Chapter DAdjustment mode
155
W301-0411E
1.3.4 Adjustment Main Menu
When the ID code is correctly input, the adjustment main menu is displayed as shown in Fig. 1.3.3.

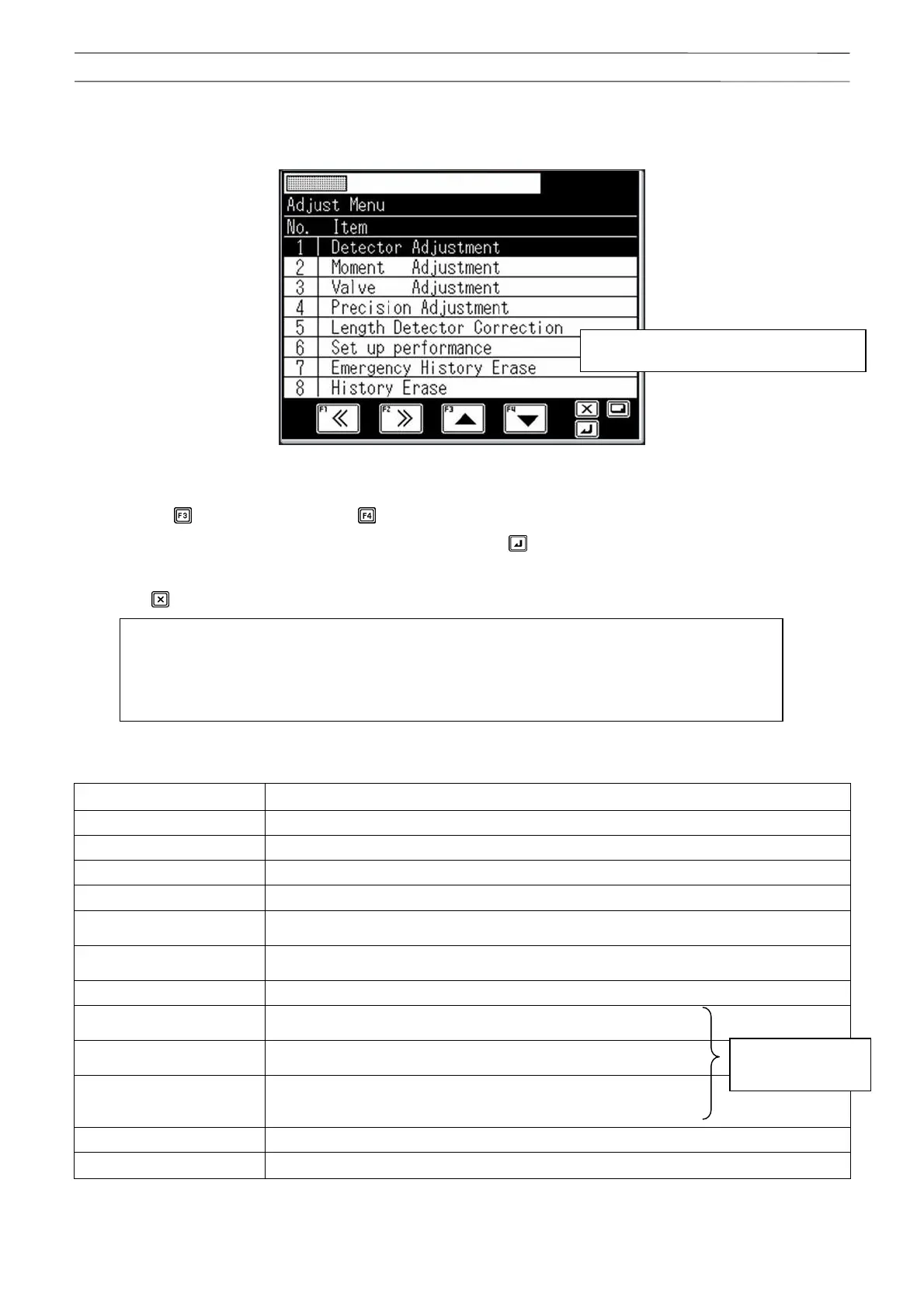

Fig. 1.3.3 Adjustment main menu display
Perform the selection of adjustment menu as described below.
Pressing the <
> key (scroll up) or the < > key (scroll down) moves the selected maintenance menu item
(highlighted). After the desired menu is selected, pressing the <
> key starts the selected menu.
Be sure to perform the adjustment in sequence starting from the menu No.1. To terminate the adjustment mode,
press the <
> key while the adjustment main menu is being displayed.
Table 1.3.1 shows the adjustment main menu list (items differ depending on the model).
Table 1.3.1 Adjustment main menu list
Displayed menu Work contents
Detector Adjustment Detector adjustment
Moment Adjustment Moment and load radius adjustment
Valve Adjustment Storing of actuator's operating speed characteristics for valve control output
Precision Adjustment Precision correction (adjustment of displayed load and load radius precision)
Length Detector
Correction
Adjustment value setting of boom length detection value
Option Select
Selection of availability of swing angle detector, anemometer, main pressure
detector, etc.
Set up performance Setting of performance-related data
Emergency History
Erase
Erasing of AML emergency or override SW history
Will not be displayed after erasing for three times.
History Erase
Erasing of operation history
Will not be displayed after erasing for three times.
O/R Emergency History
Erase
Erasing of outrigger emergency setting history
Will not be displayed after erasing the operation history
for three times.
Slow Stop Adjustment Adjustment of slow stop deceleration table
Telematics setup Adjustment not allowed
Note: When performing adjustments, always set up the crane on the firm level surface and
fully extend outriggers (except for outrigger length adjustment).
For the adjustment notice, condition, and values, refer to the “AML Adjustment
alue List” in the Cha
ter E.
When AML board is
replaced.
(The items differ depending on the model.)
To Next Page
