2.8.9 MDT Check, Display of Lower Section Do Power Check State
Displays the input/output status of MDT. In the MDT check selection menu of Fig. 2.8.1, select "Lower Do Power
Check," and press the <
> key to display the MDT check lower Do power signal state display screen shown in
Fig. 2.8.7. To go back to the MDT check selection menu, press the <
> key.

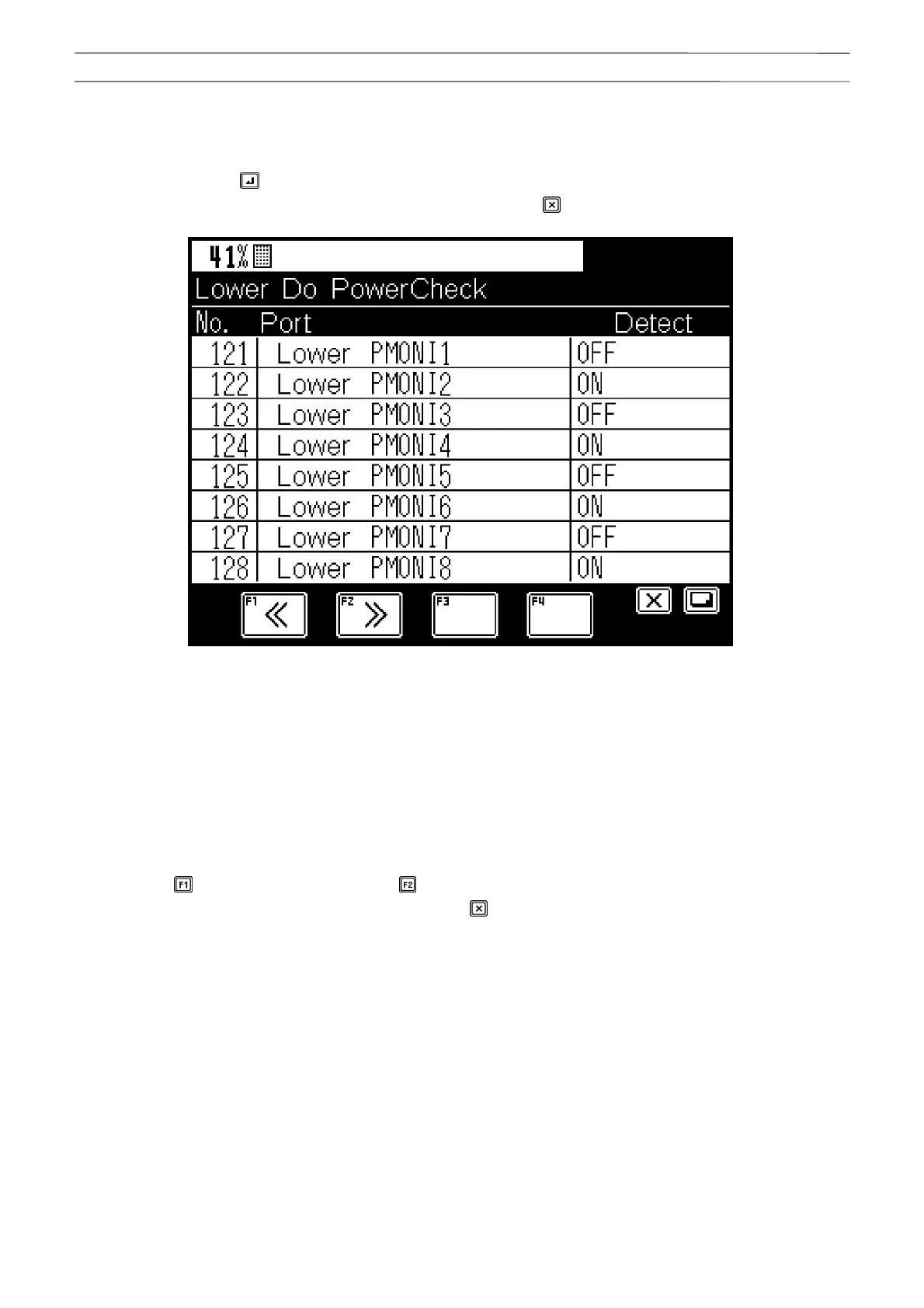

Fig. 2.8.7 Display screen of MDT check lower Do power signal state
<Description of display contents>
No.: Input/output number of lower Do power signal state display (121 to 136)
Port: Lower Do power state display signal name
Detect: ON ….. Output ON
OFF … Output OFF
<Operation method>
Pressing the <
> key (previous page) or the < > key (next page) changes the pages.
To go back to the MDT check selection menu, press the <
> key.
To Next Page
