Chapter C Chapter C
Maintenance Mode
142
W301-0411E
3.EXTRACTION OF CONTACTS:
Insert tip end of the tool into the housing cavity
from the mating side of housing, so as to raise the
locking lance of housing. This will make contact
unlocking.

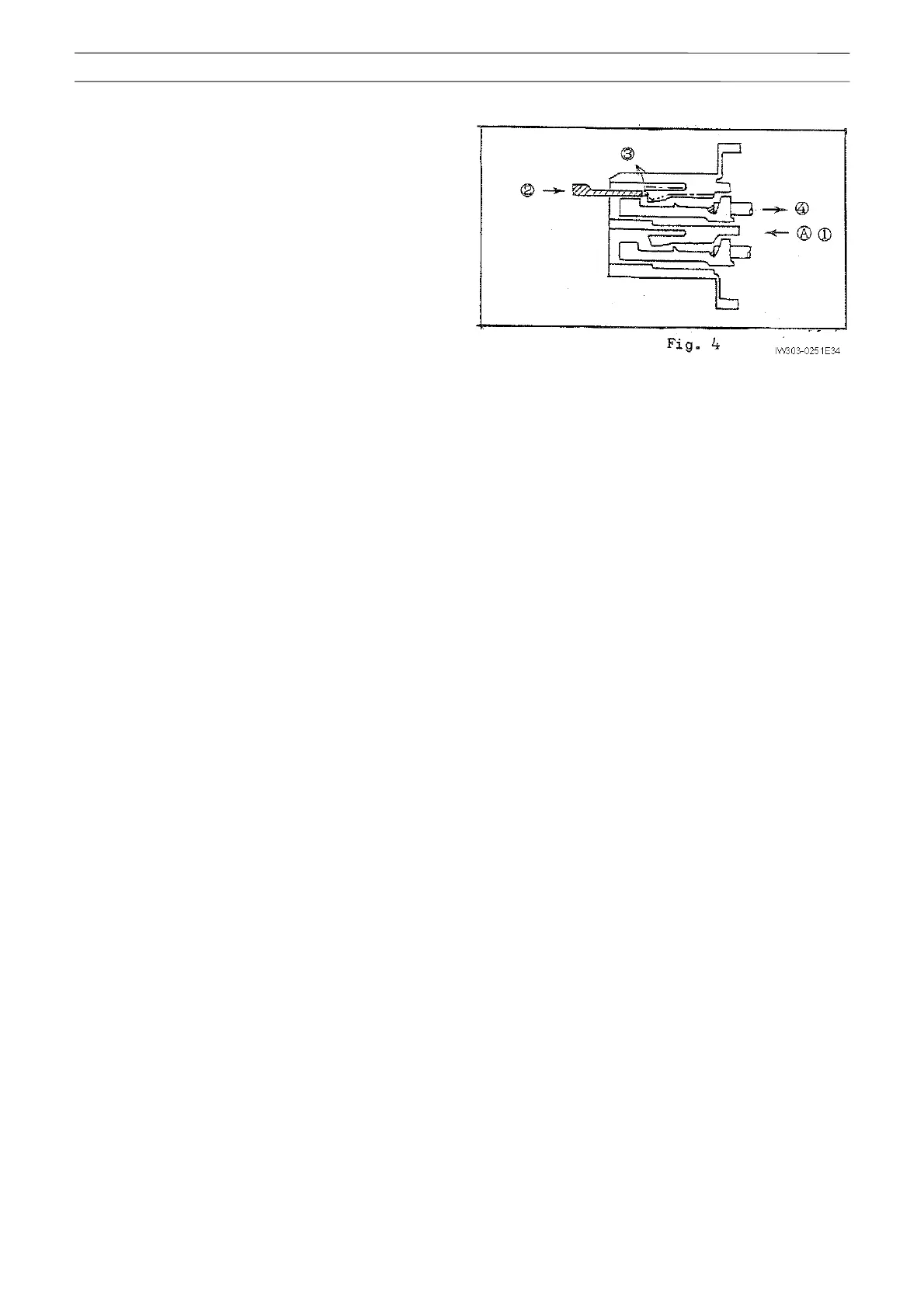

Proceed as follows (Fig.4):
1. Push back the contact into the housing in the
direction "A". This will result relaxing of locking
tension prior to unlocking.
2. Insert extraction tool into the housing cavity.
3. Raise the locking lance in housing.
4. Pull back the contact from the housing.
NOTICE
Avoid inserting tool tip from reaching the contact
leaf area for prevention from contact deformation
and damage.
To Next Page
