Chapter C
Chapter C
Maintenance Mode
145
W301-041
1E

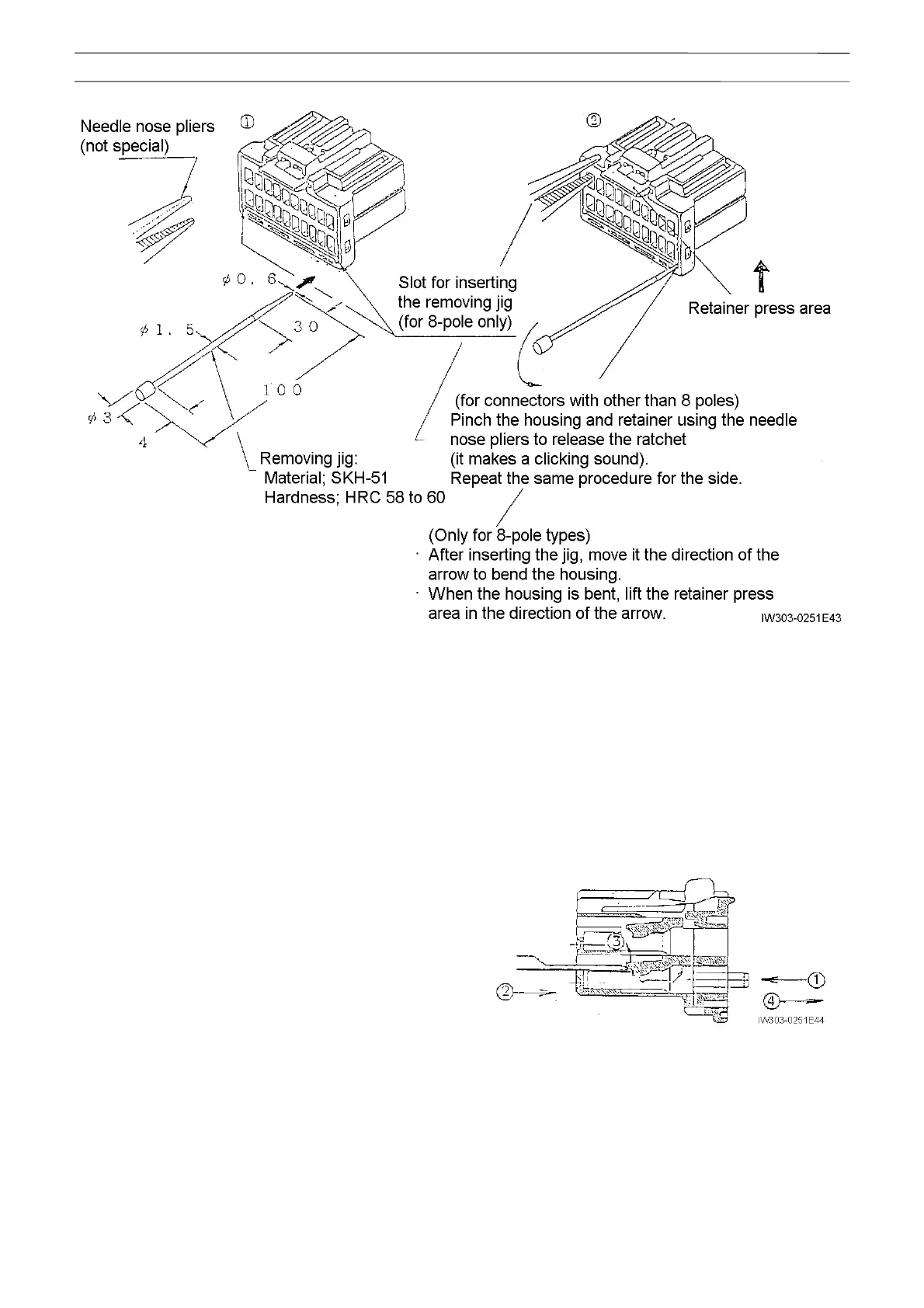

Extracting Contacts
Remove cont
act
s by inserting the jig from the
connector fitting side to lift up the conne
ctor housing
lance.
1.
Depress the cont
act in the direction of the arrow
.
2. Insert
jig.
3.
Lift up the lance.
4.
Remove the contact.
NOTICE
Do not insert the removing jig into the contacting
area of receptacle contacts (in order to prevent the
contact leaf from deforming).
