Chapter A Chapter A
Components of AML System
20
W301-0411E
CN5 connector
Pin No. Name
(Data No. #---)
Signal names and functions
14 Do14-
(#17802-9)
- Signal name: External indicator lamp (up to 90%, green)
When the moment load factor is less than 90%, the green external indicator lamp lights.
Output condition:
(1) and (2) and (3)
(1): Load moment ratio is less than 90%.
(2): 100% cancel indication (Di6) is "Not canceled" status.
(3): Twoblocking cancel indication (Di5) is "Not canceled" status.

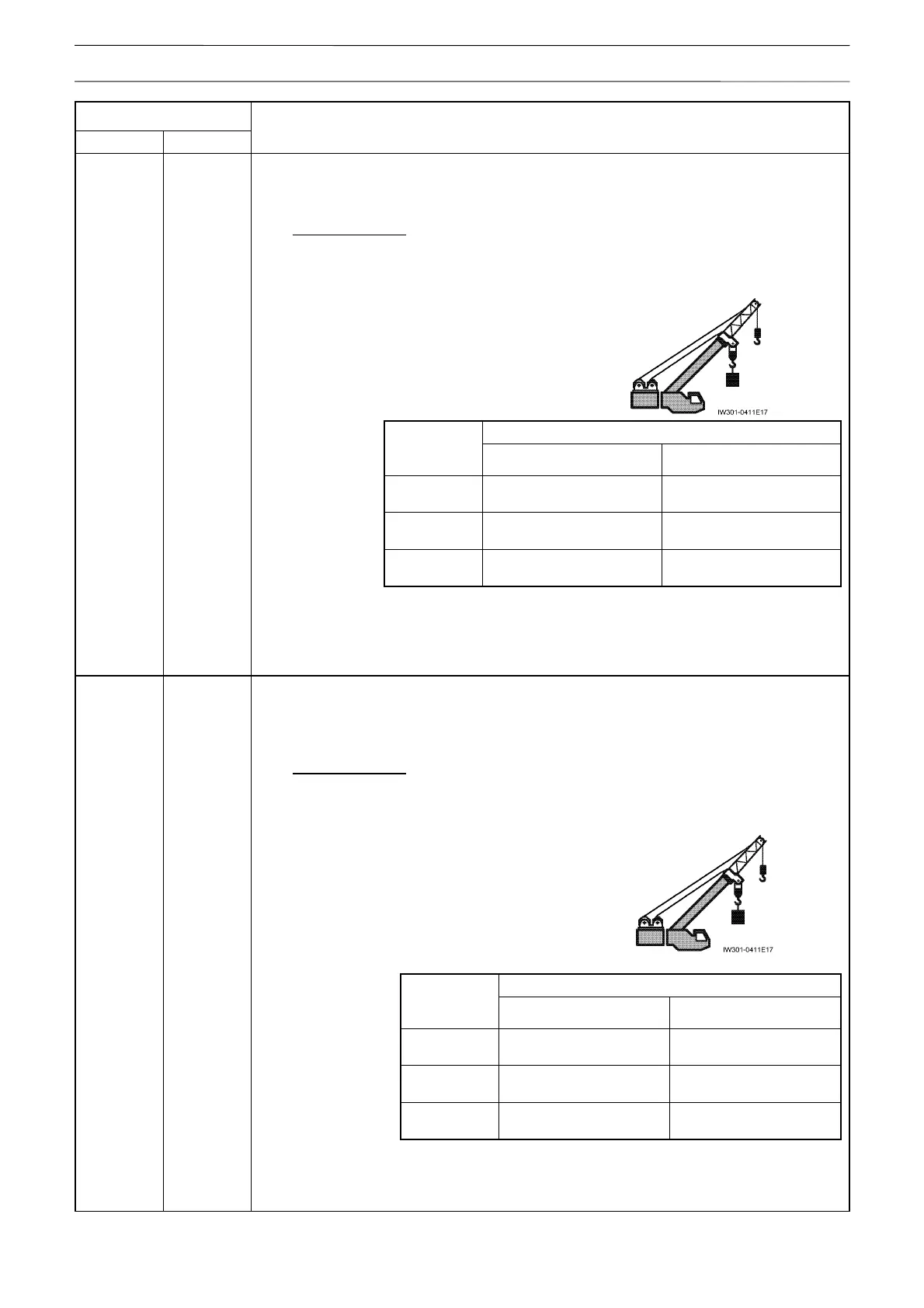

When in the boom operation with jib elected
(during main operation with jib elected), the green
external indicator lamp lights when the load
moment ratio described below is reached.
(#20803)
Output
Outrigger
extension
width
GR-750XL-2 GR-1000XL-2
Maximum
extension
Less than 78％ Less than 84％
Middle
extension 2
Less than 77％ Less than 83％
Middle
extension 1
Less than 70％ Less than 82％
Output when condition is met: OFF output
15 Do15-
(#17802-10)
- Signal name: External indicator lamp (90% to 100%, yellow)
When the moment load factor is 90% or more and less than 100%, the yellow external
indicator lamp lights.
Output condition:
(1) and (2) and (3)
(1): Load moment ratio is 90% or more and 100% or less.
(2) 100% cancel indication (Di6) is "Not canceled" status.
(3): Twoblocking cancel indication (Di5) is "Not canceled" status.
When in the boom operation with jib
elected
(during main operation with jib
elected), the
yellow external indicator lamp lights when the
load moment ratio described below is reached.
(#20803)
Output
Outrigger
extension
width
GR-750XL-2 GR-1000XL-2
Maximum
extension
78％ or more
Less than 88％
84％ or more
Less than 94％
Middle
extension 2
77％ or more
Less than 87％
83％ or more
Less than 93％
Middle
extension 1
70％ or more
Less than 80％
82％ or more
Less than 92％
Output when condition is met: OFF output
