4 – Mixer configuration and settings

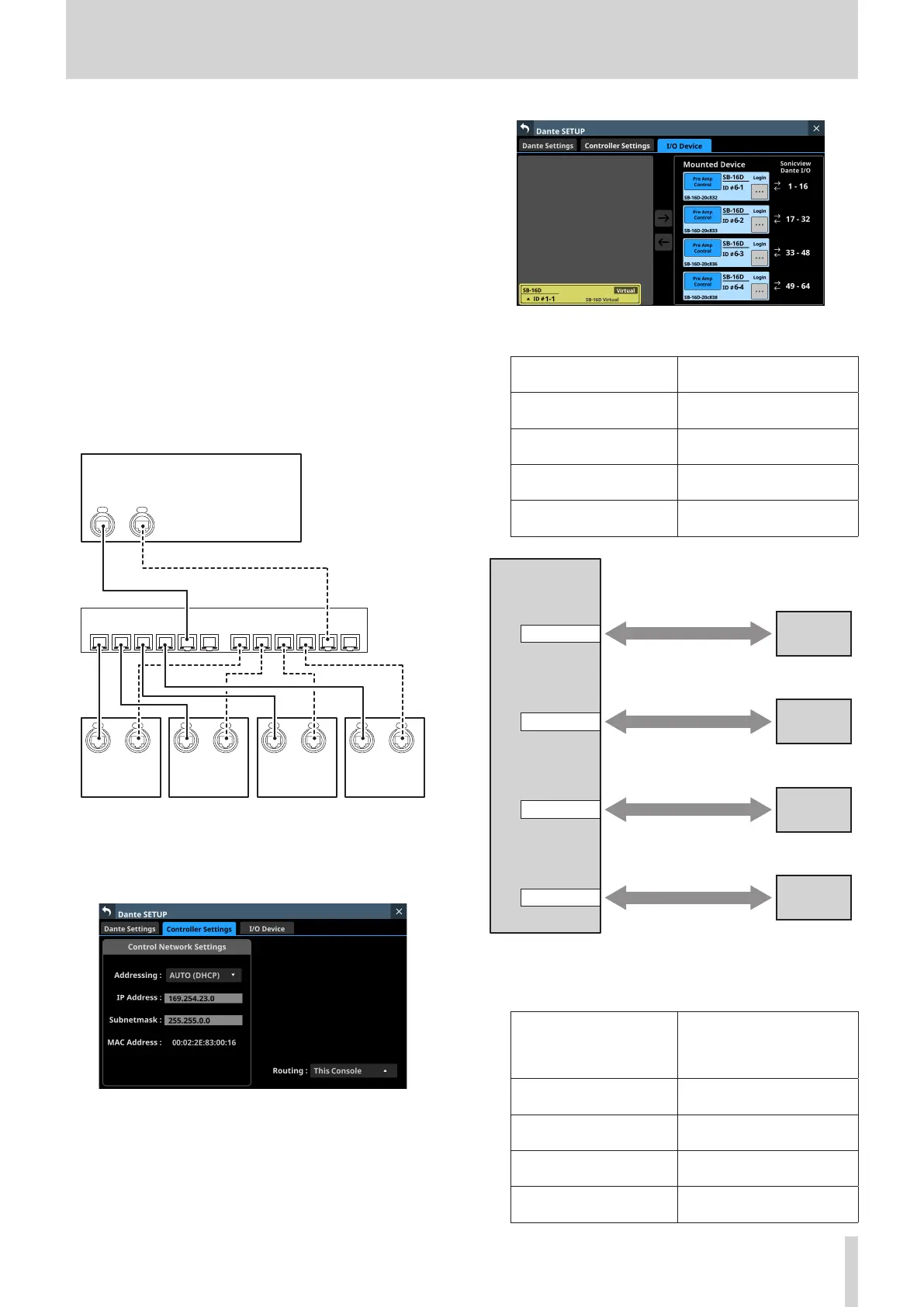

Procedures for connecting 4 SB-16D units by
Dante when the sampling rate of this unit’s
built-in Dante module is “48kHz”.
In this case, Dante connection without using Dante Controller is
possible. Moreover, controlling a preamp of that SB-16D from a
module with a built in Dante port assigned is possible.
1. If multiple SB-16D units are connected to the Dante
network, set IDs that are not duplicated on them in advance
in order to enable their identification. For details about ID
setting procedures, see the SB-16D operation manual.
2. Connect the following Dante ports to the same Dante
network.
i Dante ports built into this unit
i Dante ports of 4 SB-16D units
When connecting multiple SB-16D units, connect them
through a switching hub as shown below. In this case,
connect Primary and Secondary to different VLANs or
connect them to different switching hubs.
Sonicview
Dante
Secondary
Primary
Dante
Switch
VLAN 1 VLAN 2
SB-16D
Dante
Secondary
Primary
Dante
SB-16D
Dante
Secondary
Primary
Dante
SB-16D
Dante
Secondary
Primary
Dante
SB-16D
Dante
Secondary
Primary
Dante
3. Set the Dante routing control method.
Tap Menu Screen > Rear Panel Setup > Dante Setup to open
the Dante SETUP screen and tap the Controller Settings tab.
4. Set the Routing control setting to “This Console”.
5. Tap “I/O Device” to open the I/O Device page.
6. Following the procedures in “Mounting of devices
connected to the Dante network” on page 62, mount 4
SB-16D units one at a time from the top in the Mounted
Device list.
Through these procedures, the Dante I/O ports of this unit
and the 4 SB-16D units are routed by Dante as follows.
Dante I/O ports of this
unit
SB-16D Dante I/O ports
Dante I/O 1–16 of this unit
Dante I/O 1–16 of the SB-16D
mounted 1st in the list
Dante I/O 17–32 of this
unit
Dante I/O 1–16 of the SB-16D
mounted 2nd in the list
Dante I/O 33–48 of this
unit
Dante I/O 1–16 of the SB-16D
mounted 3rd in the list
Dante I/O 49–64 of this
unit
Dante I/O 1–16 of the SB-16D
mounted 4th in the list
Sonicview
Dante I/O 1-16
SB-16D #1-1
Dante I/O 17-32
Dante I/O 33-48
Dante I/O 49-64
SB-16D #1-2
SB-16D #1-3
SB-16D #1-4
Automatic routing
when mounted
Automatic routing
when mounted
Automatic routing
when mounted
Automatic routing
when mounted
As a result, the preamps (Analog GAIN, PAD ON/OFF,
Phantom ON/OFF) of the corresponding SB-16D INPUT can
be operated on the Home Screen and MODULE screen of
the module that has Dante 1–64 inputs assigned.
Module that can operate
SB-16D preamps
Object of preamp
operation on the Home
Screen and MODULE screen
of the module (at left)
Module with Dante IN
1–16 assigned
INPUT 1–16 of the mounted
SB-16D 1st in the list
Module with Dante IN
17–32 assigned
INPUT 1–16 of the mounted
SB-16D 2nd in the list
Module with Dante IN
33–48 assigned
INPUT 1–16 of the mounted
SB-16D 3rd in the list
Module with Dante IN
49–64 assigned
INPUT 1–16 of the mounted
SB-16D 4th in the list
