Tascam Sonicview 16 User Manual

4 – Mixer configuration and settings

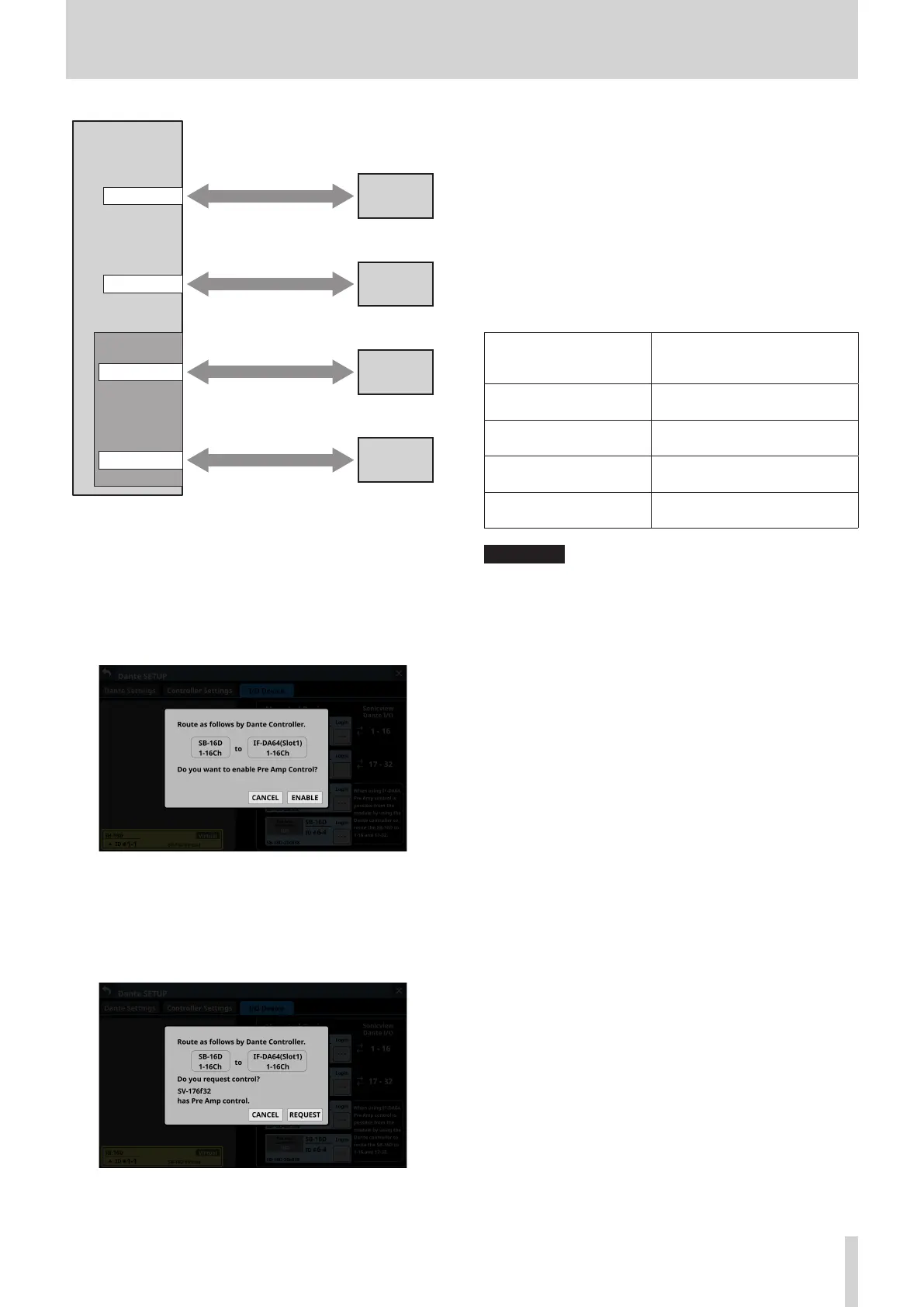

Sonicview
Dante I/O 1-16
SB-16D #1-1
Dante I/O 17-32
SB-16D #1-2
SB-16D #1-3
SB-16D #1-4
IF-DA64
SLOT 1 I/O 1-16
SLOT 1 I/O 17-32
Automatic routing
when mounted
Automatic routing
when mounted
Routing using Dante
Controller
Routing using Dante
Controller
9. Acquire control privileges to enable operation from this
unit of SB-16D units mounted 3rd and 4th from the top and
routed through an IF-DA64.
Tap the “Pre Amp Control OFF” buttons for the 3rd and 4th
devices to open the following confirmation message.
o If control privileges for those SB-16D units have not been
acquired by other devices:
The following message will be shown.
Tapping the ENABLE button will set the control privileges
and “Pre Amp Control” will be shown in the control
privilege display area.
o If control privileges for those SB-16D units have been
acquired by other devices:
The following message will be shown.
Tapping the REQUEST button and following the
procedures from step 5 in “Mounting of devices
connected to the Dante network” on page 62 to acquire
the control privileges will cause “Pre Amp Control” to be
shown in the control privilege display area.
10. Conduct step 9 for the SB-16D units mounted 3rd and 4th
in the list.
This will enable operation from this unit of SB-16D units
mounted 3rd and 4th from the top and routed through an
IF-DA64.
After completing these procedures, the preamps (Analog GAIN,
PAD ON/OFF, Phantom ON/OFF) of the corresponding SB-16D
units can be operated on the Home Screens and MODULE
screens of the modules that have Dante 1–32 and SLOT 1-1 1–32
input ports assigned.
Module that can operate
SB-16D preamps
Object of preamp operation on
the Home Screen and MODULE
screen of the module (at left)
Module with Dante IN
1–16 assigned
INPUT 1–16 of the mounted SB-
16D at the top of the list
Module with Dante IN
17–32 assigned
INPUT 1–16 of the mounted SB-
16D 2nd in the list
Module with SLOT 1 IN
1–16 assigned
INPUT 1–16 of the mounted SB-
16D 3rd in the list
Module with SLOT 1 IN
17–32 assigned
INPUT 1–16 of the mounted SB-
16D 4th in the list
ATTENTION
In these procedures, maintain the routing settings of the SB-
16D units mounted 3rd and 4th from the top and the IF-DA64
(Dante card) as follows.
i Connect Dante I/O 1–16 of the IF-DA64 installed in this
unit to Dante I/O 1–16 of the SB-16D mounted 3rd from
the top
i Connect Dante I/O 17–32 of the IF-DA64 installed in this
unit to Dante I/O 1–16 of the SB-16D mounted 4th from
the top
If routings are changed from the above by Dante Controller,
the preamp of an unintended SB-16D channel will be
affected if a preamp is operated on this unit from the Home
Screen or MODULE screen of a module with a corresponding
SLOT input assigned.
TASCAM Sonicview 16/Sonicview 24 V1.1.0 83
