RUN EXCITE: Service & Maintenance Manual - rev. 1.5

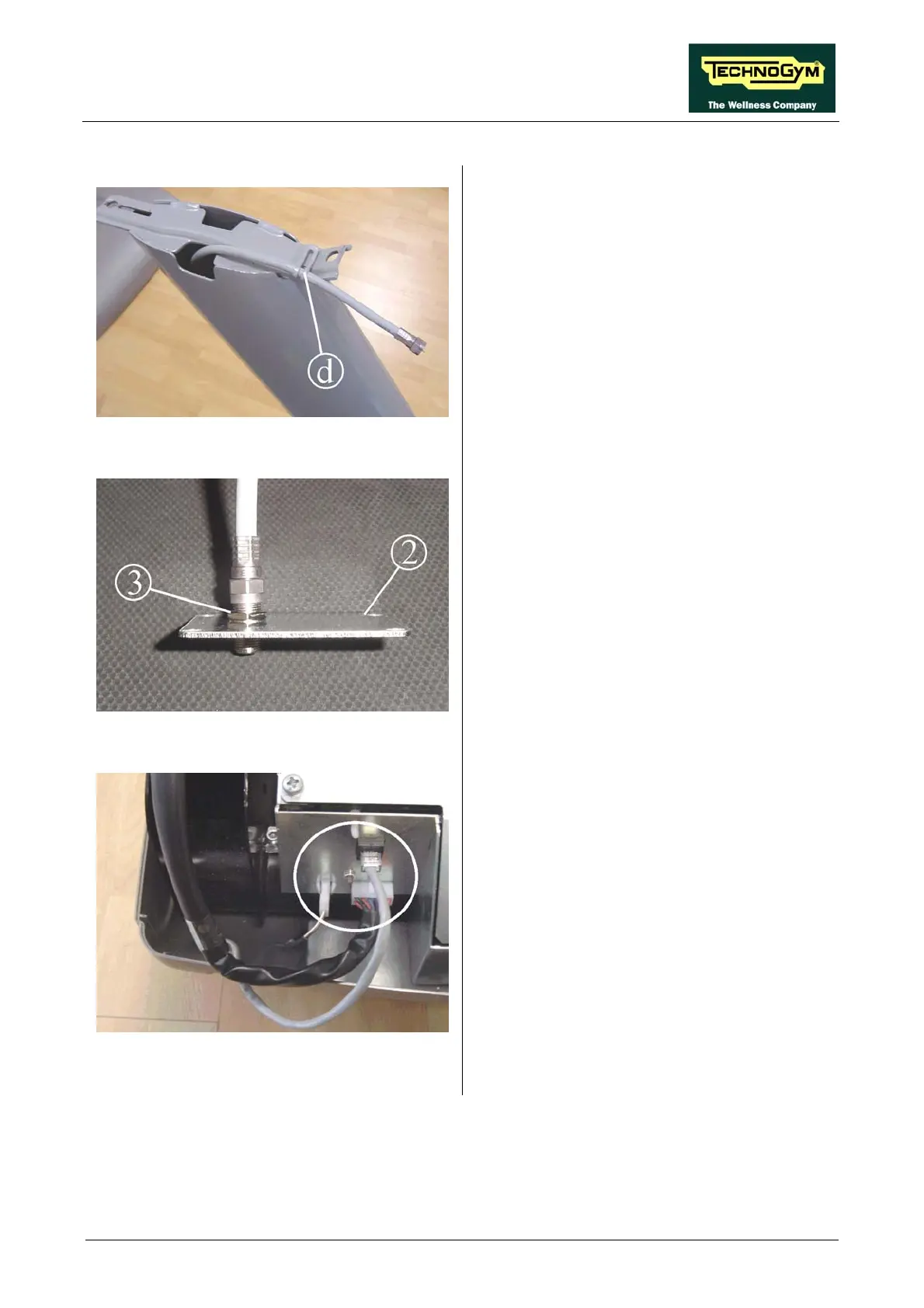

Figure 4.6-6
9. Fix the cable to the top of the column using
the fastener d already fitted on the machine
frame.
Figure 4.6-7
11.
into connecto
10. Fix the union connector 3 to the cable
clamping plate 2, securing it with its lock
nut, as shown in the figure.
Plug the lower terminal of cable TRM-46
r 3.
Figure 4.6-8
12. Unplug the three connectors indicated in the
figure (fan cable, power supply cable and
serial communication cable) from the lower
electronics box on the machine.
Continued on following page →
Page 4.7
