STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.19

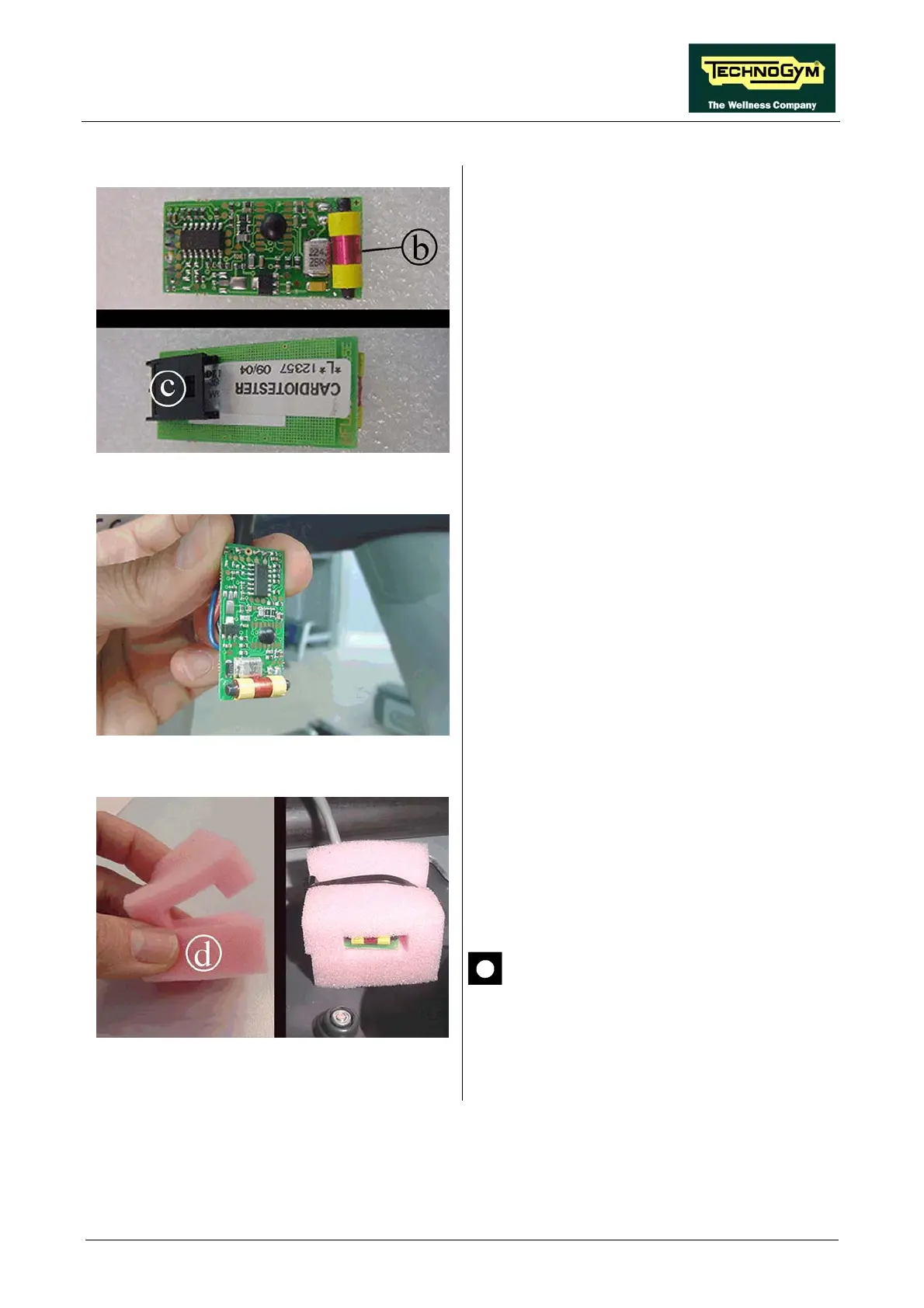

Figure 7.4-4
To assemble the new receiver:
1. On the HFU receiver, there are the receiving
coil b and the connector c.
Figure 7.4-5
2. Connect the cable to the cardio receiver and
bend the cable on a side of the connector.
Figure 7.4-6
3. Place the receiver in the sponge d as shown
in the picture to side.
4. Use a cable tie to secure the receiver in the
sponge.
the receiving coil must be oriented
upwards and toward the user.
Continued on following page →
