STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.26

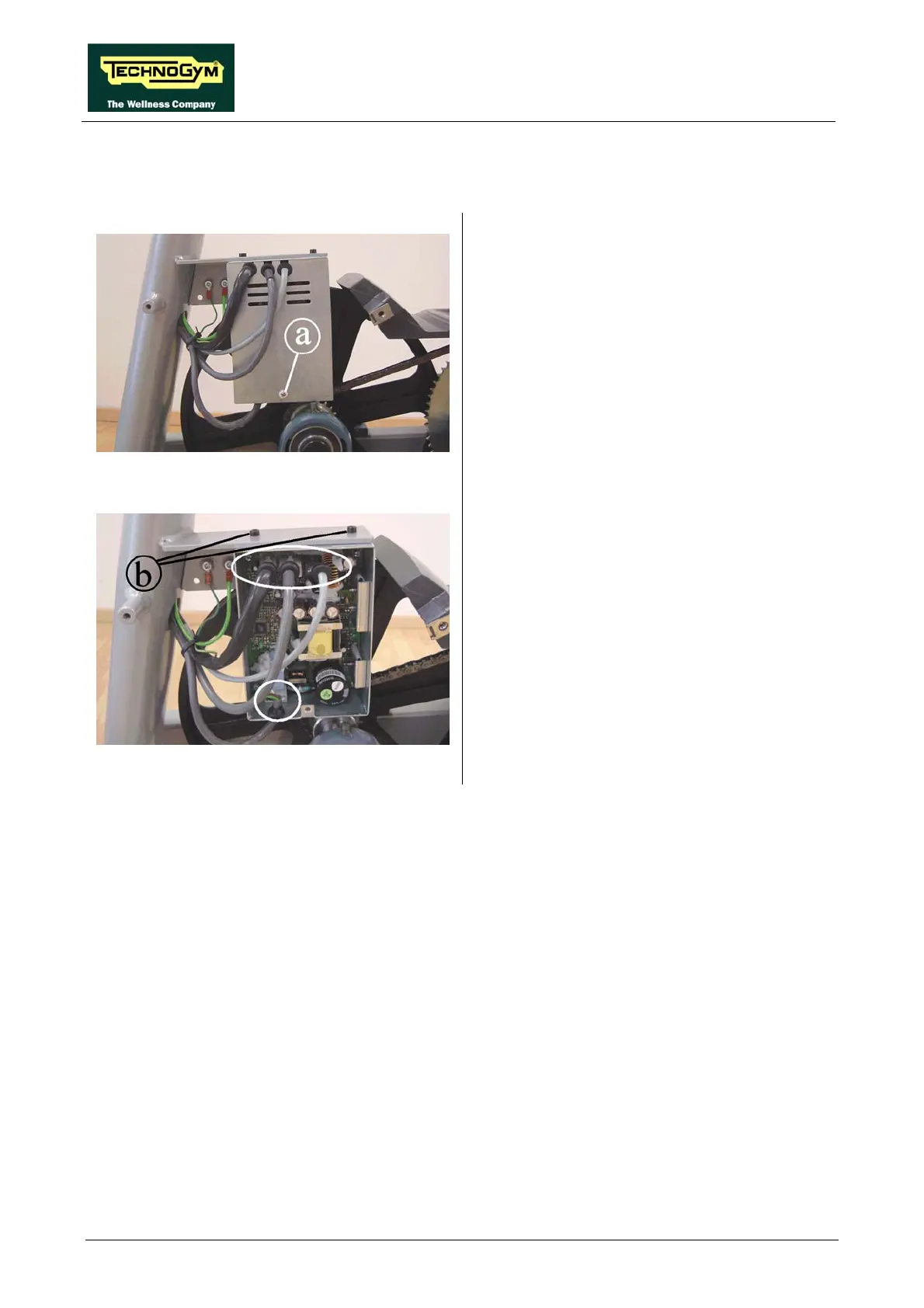

7.8. DISASSEMBLING THE ELECTRICAL BOX
Figure 7.8-1
1. Carry out steps 1-2 of procedure 7.7.
“Disassembling the guards”.
2. Back off the screw a using a medium Phillips
screwdriver.
3. Remove the cover plate from the electrical
box.
Figure 7.8-2
4. Unplug the 4 connectors indicated in the
figure at left.
5. Back off the 2 screws b using an 4-mm hex
wrench.
6. Remove the electrical box.
To reassemble the electrical box, carry out the
above steps in reverse order.
