STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 8.7
8.7. LEVELLING

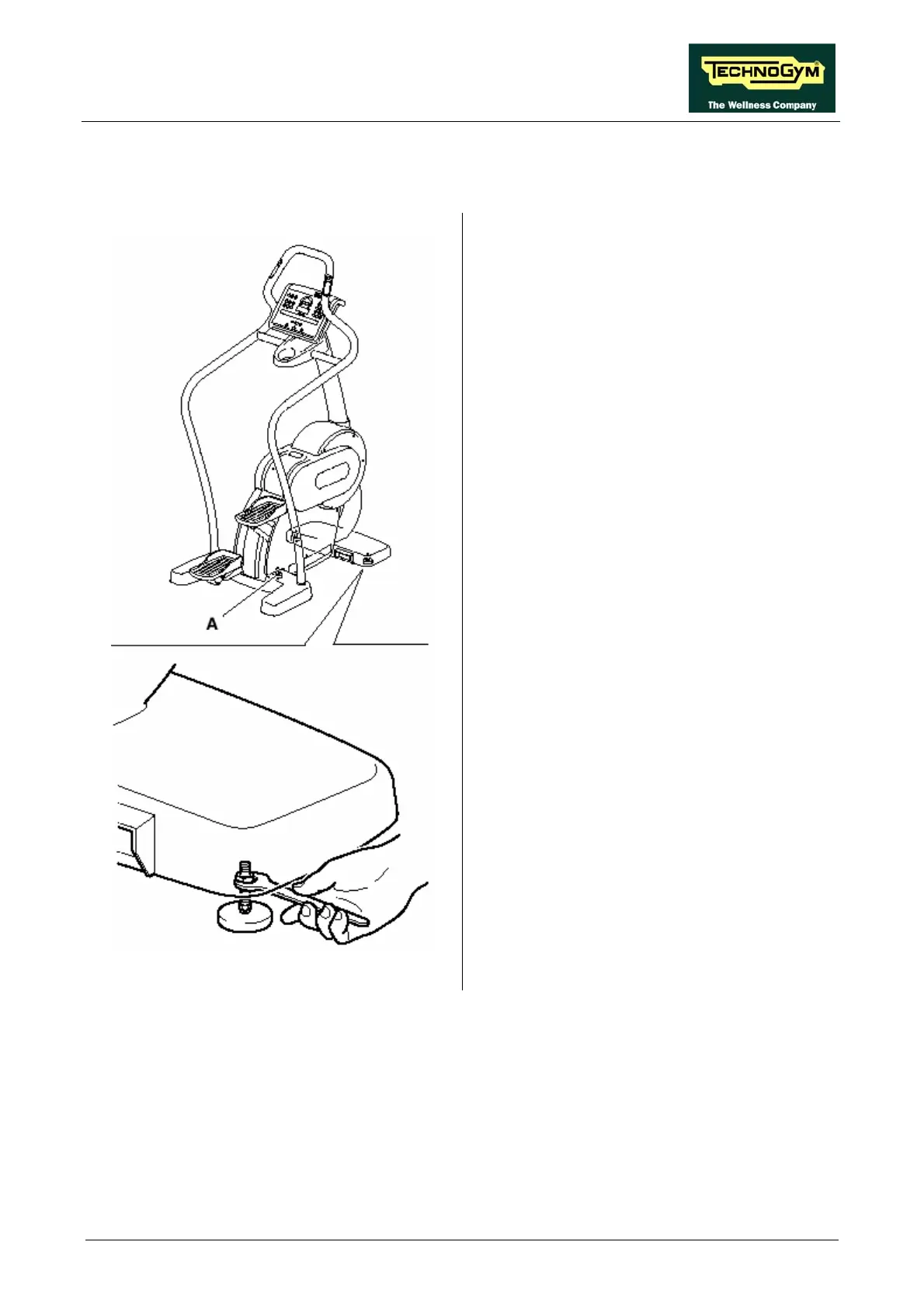

Figure 8.7-1
Carry out the procedure below, working on the
two front feet and on the center foot A.
1. Back off the lock-nuts and screw or unscrew
the two front feet until the frame is in a
stable position.
2. Tighten the lock-nuts.
3. Back off the lock-nut and unscrew the center
foot A until it rests on the floor.
4. Tighten the lock-nut.
