STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.23
7.6. DISASSEMBLING THE SENSOR
Only for 700i, 700i SP and 700i E versions.

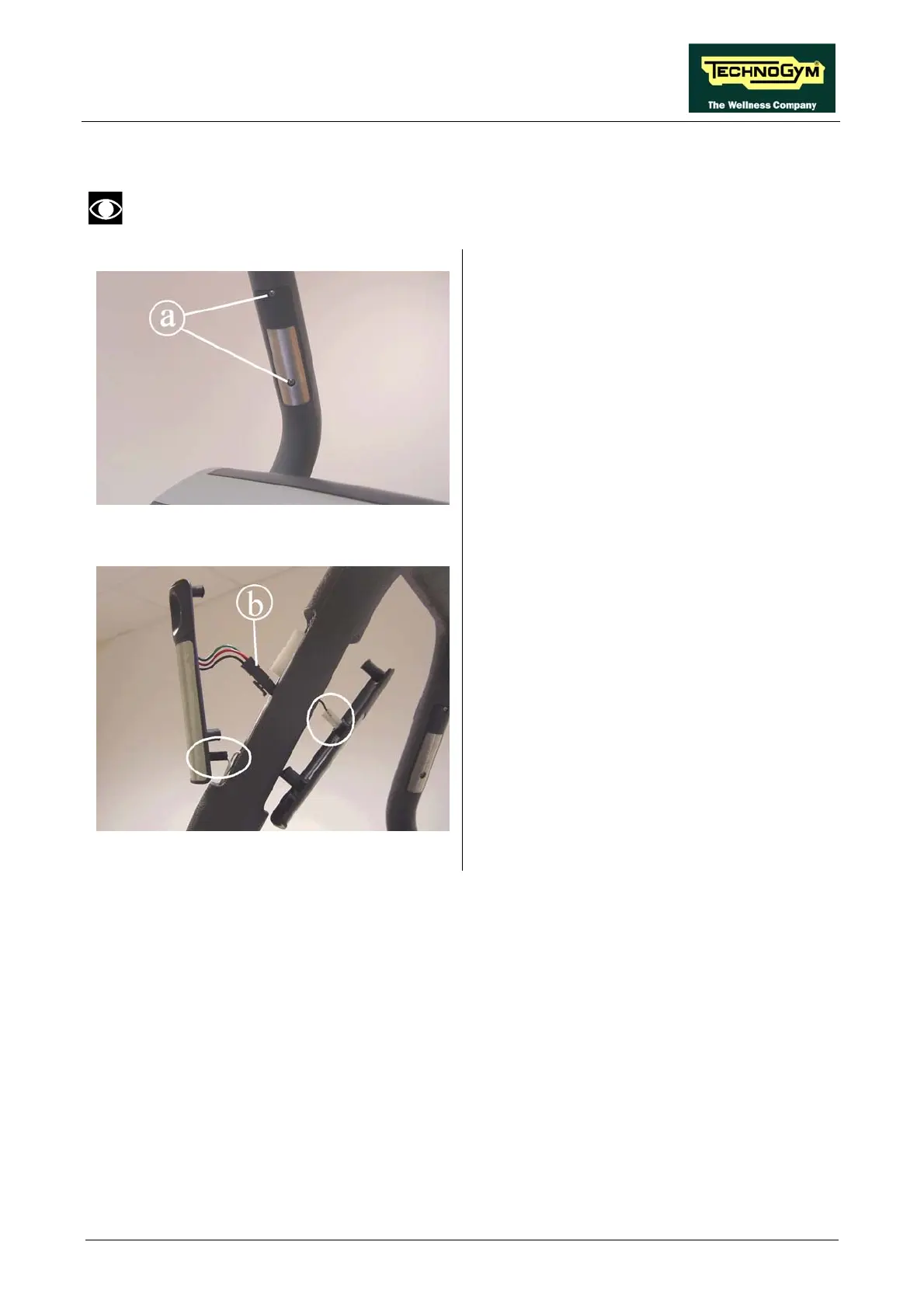

Figure 7.6-1
Turn off the machine and unplug the mains lead
from the wall outlet.
For each sensor:
1. Back off the 2 screws a using a medium
Phillips screwdriver.
Figure 7.6-2
2. Lift up the top sensor.
3. Remove the lower sensor.
4. To remove the sensors, unplug the two faston
and the connector b of the touch sensor
indicated in the figure.
To reassemble the sensors, carry out the above
steps in reverse order.
