STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.18
7.4. DISASSEMBLING THE CARDIO RECEIVER

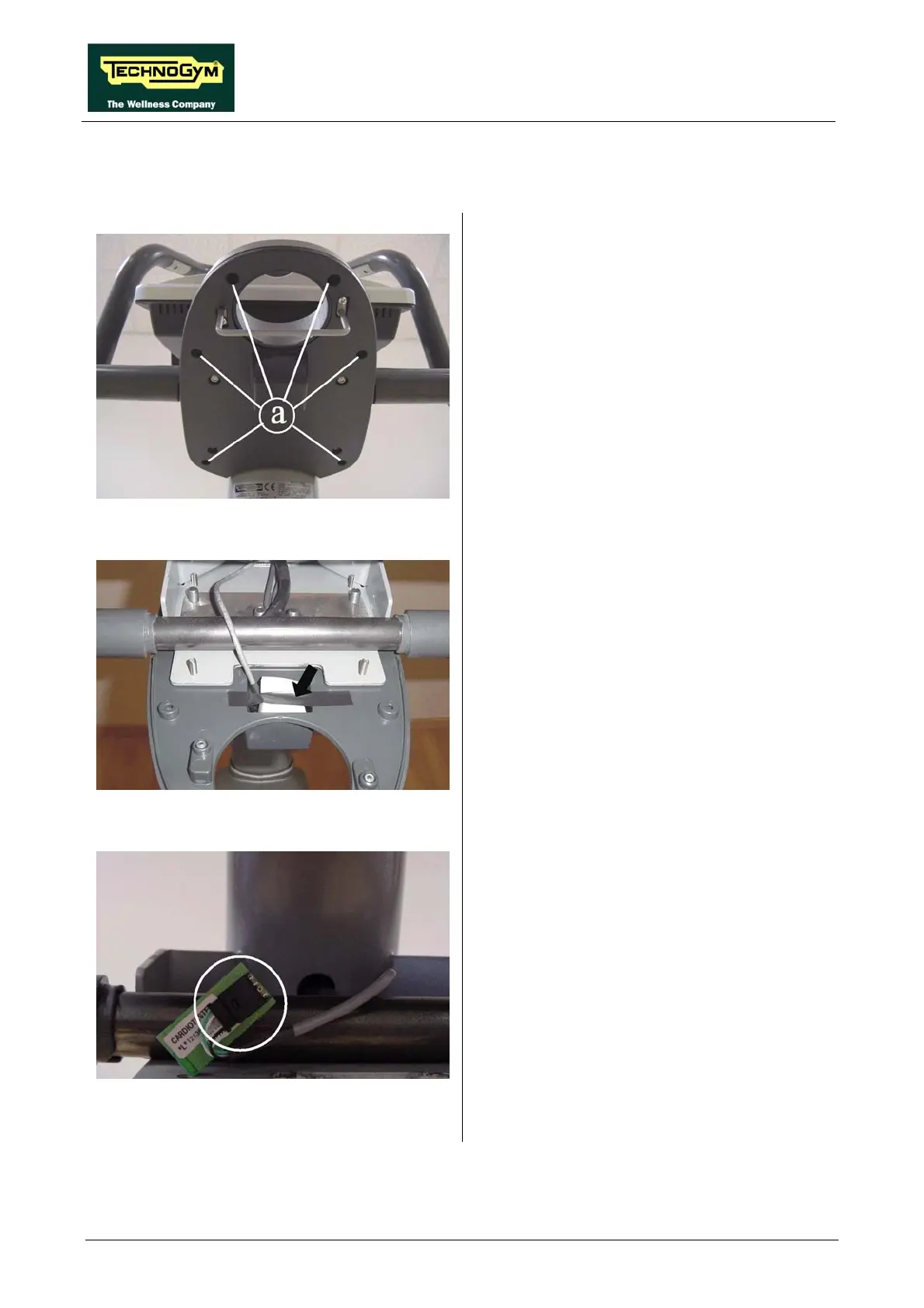

Figure 7.4-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 6 screws a using a medium
Phillips screwdriver.
3. Lift up the upper tray bracket.
Figure 7.4-2
4. Remove the adhesive tape.
5. Remove the cardio receiver from the
sponges.
Figure 7.4-3
6. Unplug the connector indicated in the figure.
7. Remove the receiver.
Continued on following page →
