STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.43
7.19. DISASSEMBLING THE BATTERY

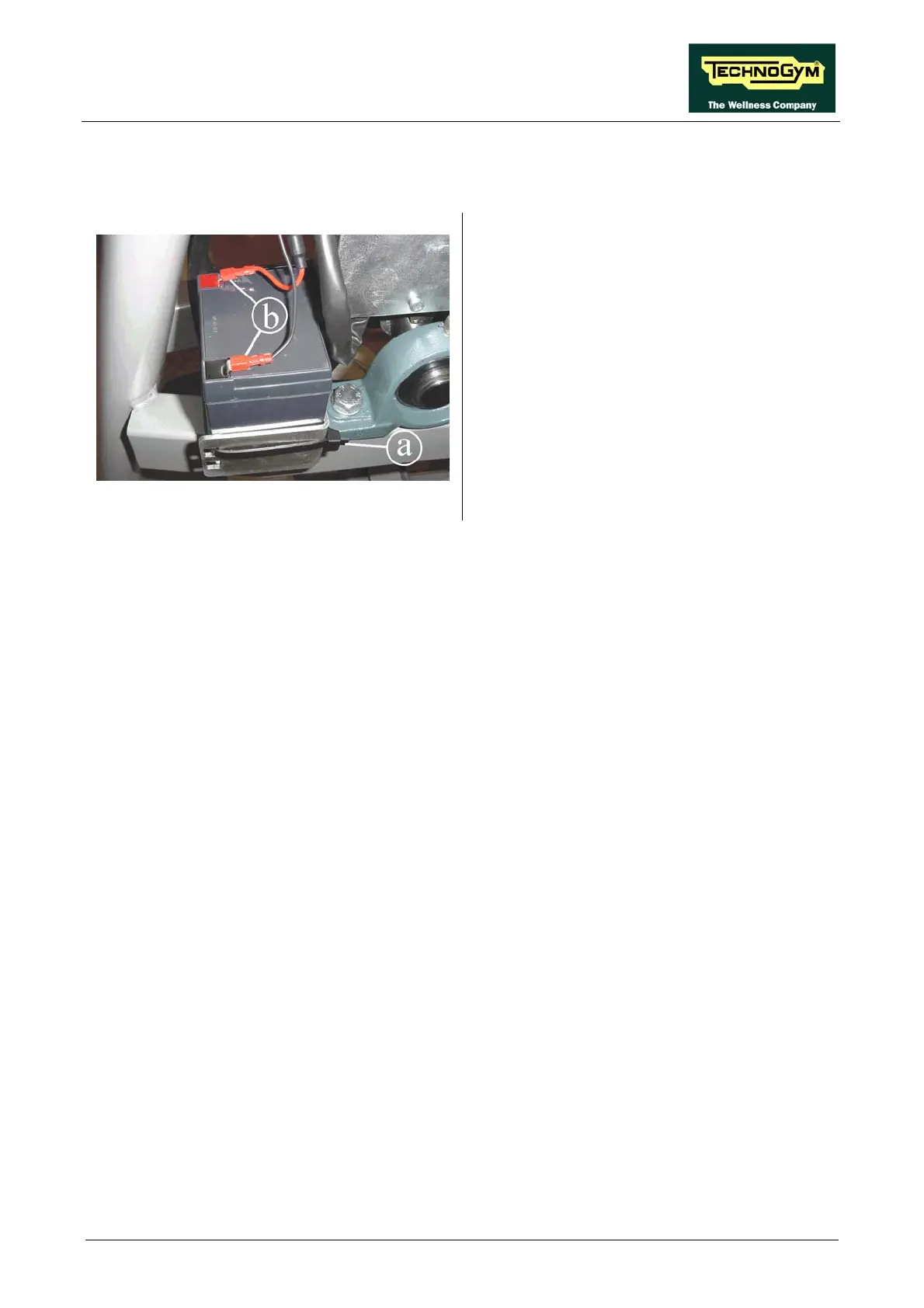

Figure 7.19-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
1. Cut the strip tie a.
2. Unplug the two faston b and remove the
battery.
To reassemble the battery carry out the above
steps in reverse order.
