STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 4.2
When programming the machine sometimes it is necessary to fit plug into the free RJ-45
port on the back of the display, to avoid any type of interference during the operation.

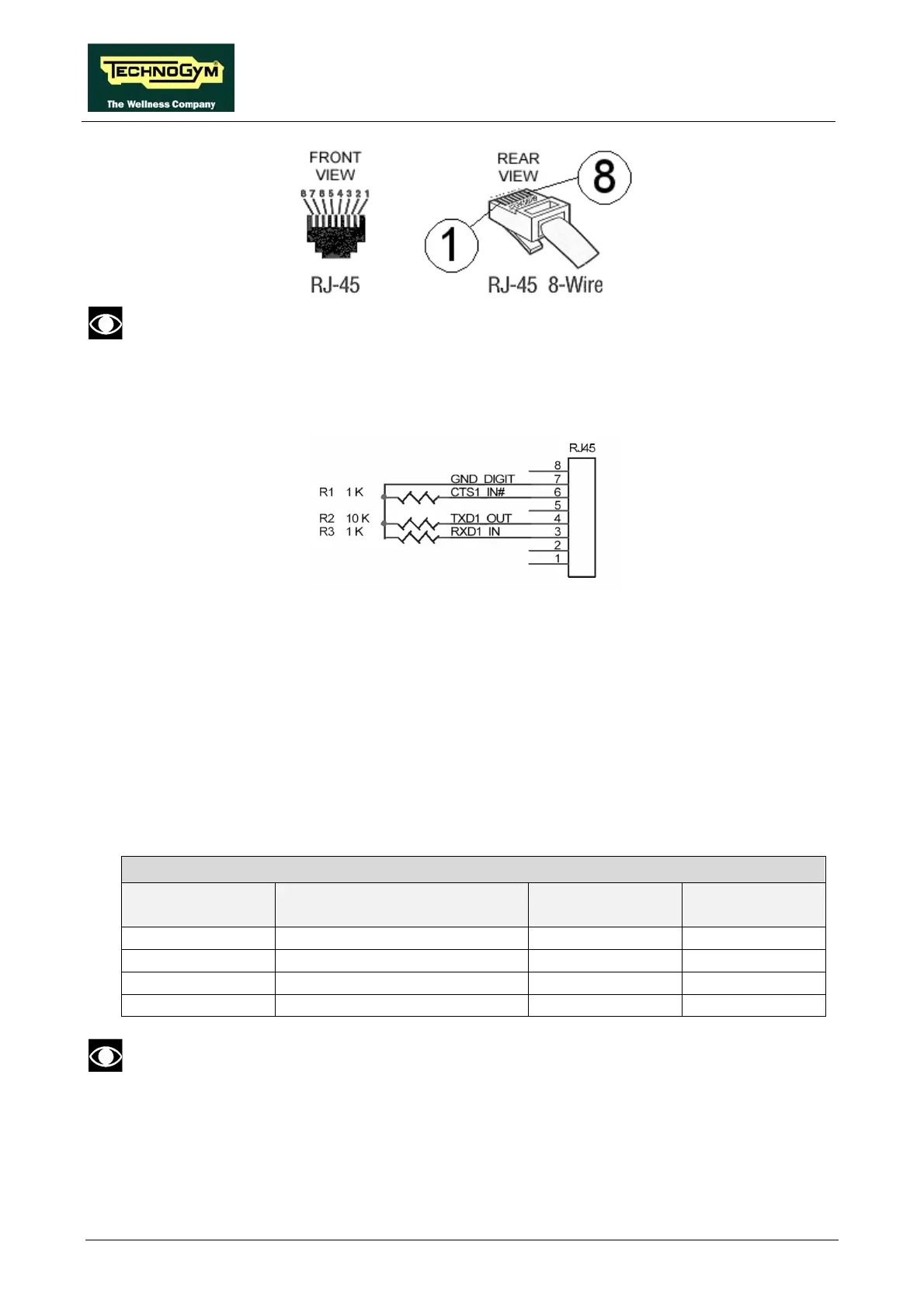

The wiring diagram of the RJ-45 plug is as follows:
Programming cable and plug can be ordered using the code H0002534AA.
4.3. CABLE FOR EXCHANGING TV CHANNEL TUNING DATA
BETWEEN TWO MACHINES
The link for transferring the TV channel tuning data from one machine to the other is effected via a
special cable, which plugs into the RJ45 connectors of the CSafe boards.
The cable to use (code 0WC00644AA) must be wired as follows:
Cable
CSafe Board;
RJ45
Signal Color CSafe Board;
RJ45
3 Tx White 4
4 Rx Brown 3
7 Digital Ground Green 7
8 Ground Shield Yellow 8
ATTENTION: for the numbering of the pins, on RJ45 connector, please refer to the
diagram below:
