STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.24

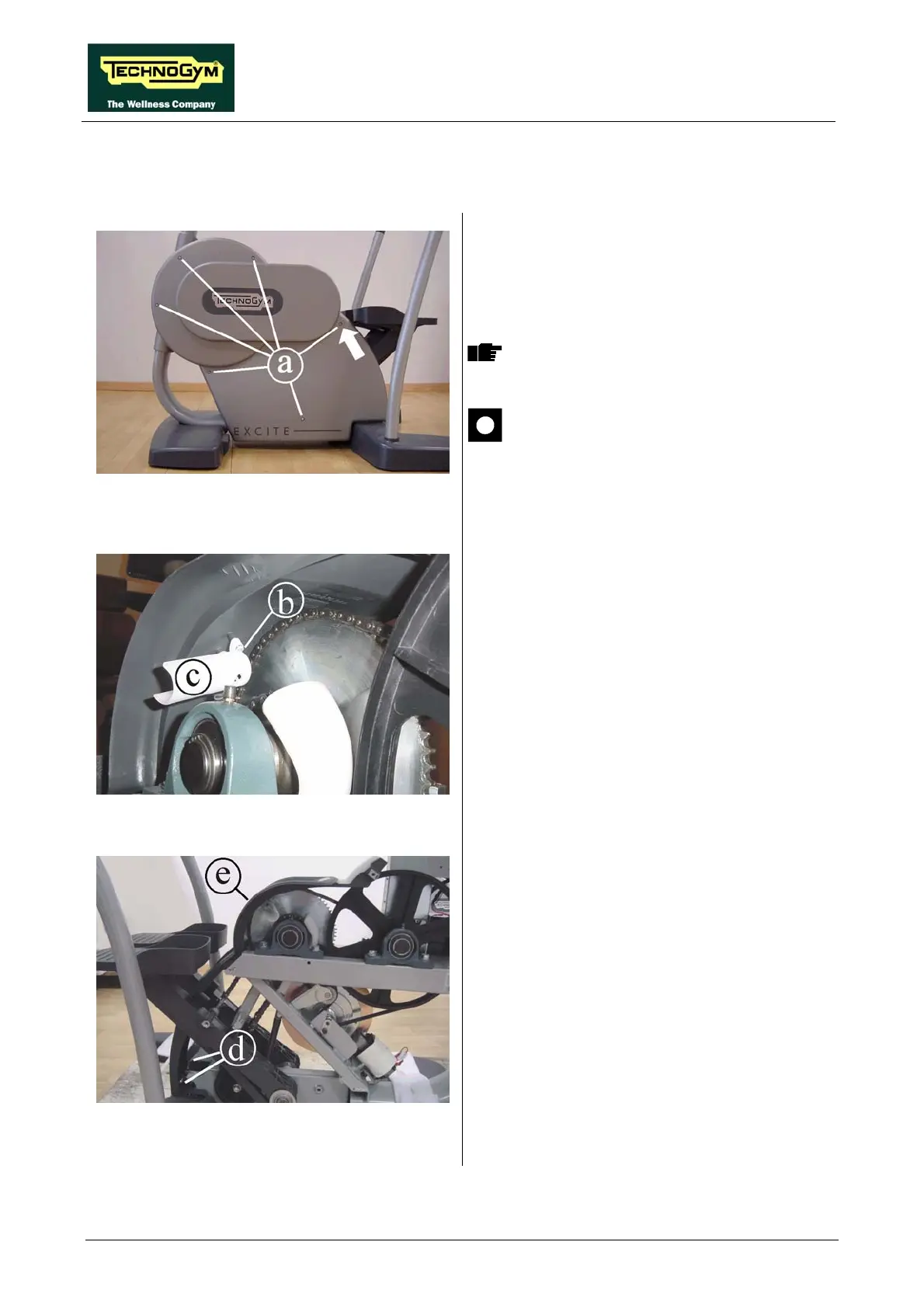

7.7. DISASSEMBLING THE GUARDS
Figure 7.7-1
Turn off the machine and unplug the mains lead
from the wall outlet.
1. Back off the screws a, on both sides of the
machine, using a 4-mm hex wrench.
During reassembly, insert the longer
screw in the position indicated by the
arrow.
During reassembly, lock down the
screws “a” using a torque wrench
setting of 2 Nm.
2. Remove the lateral guards.
Figure 7.7-2
To disassemble the drip flat c:
3. Back off the screw b, using a small Phillips
screwdriver.
4. Remove the drip flat c.
Figure 7.7-3
5. Back off the 2 screws d using an 4-mm hex
wrench.
6. Lower the pedals and pull out guard e from
the top.
Continued on following page →
