STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.25

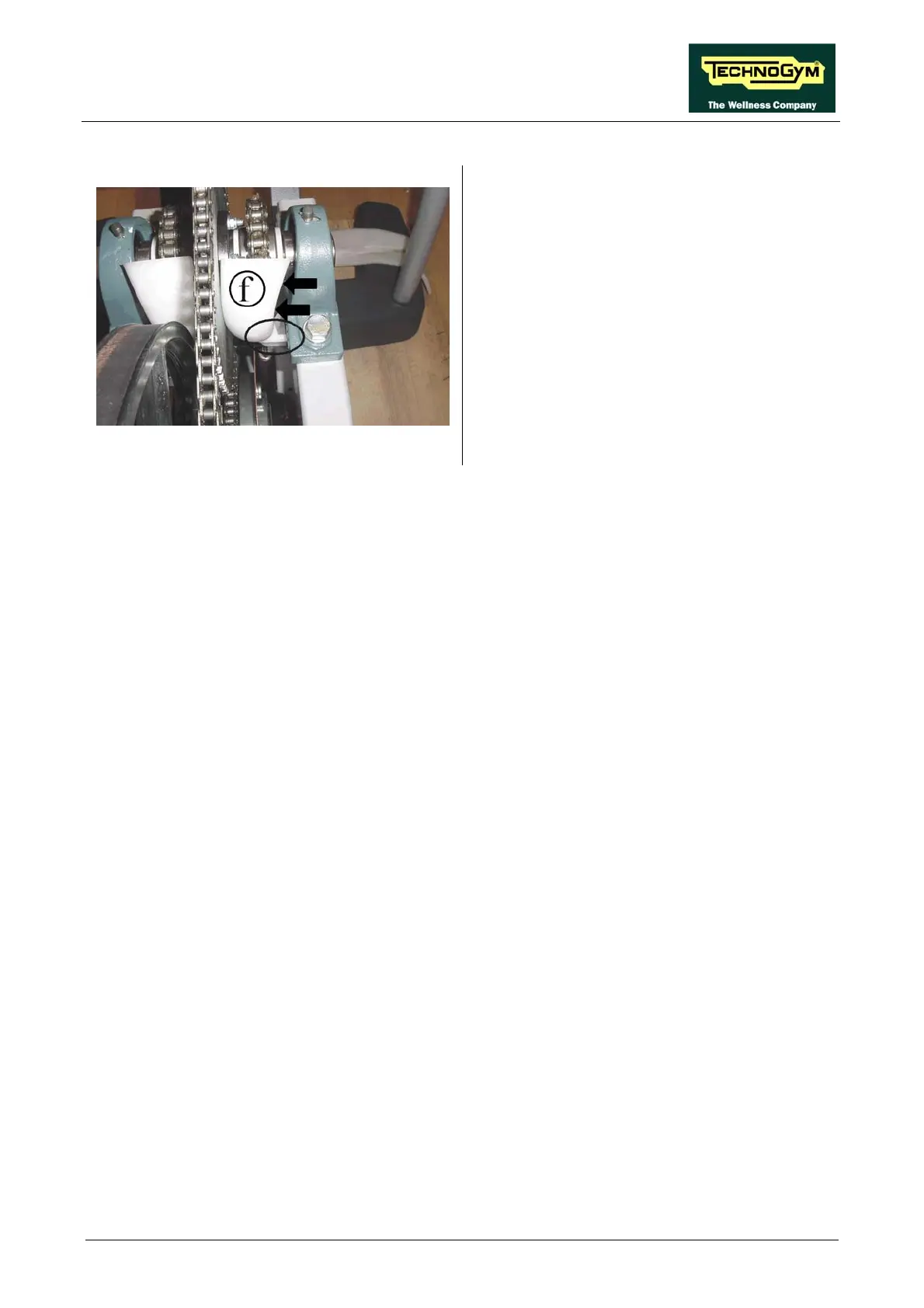

Figure 7.7-4
To disassemble the drip flat f:
7. Push the drip flat f toward the crown wheel
as far as the plastic pin, highlighted in the
figure, comes out of the machine frame.
8. Remove the drip flat from the top.
To reassemble the guards, carry out the above
steps in reverse order.
