STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 8.5
8.5. TENSION THE CHAIN CONNECTING THE PRIMARY AND
SECONDARY SHAFTS

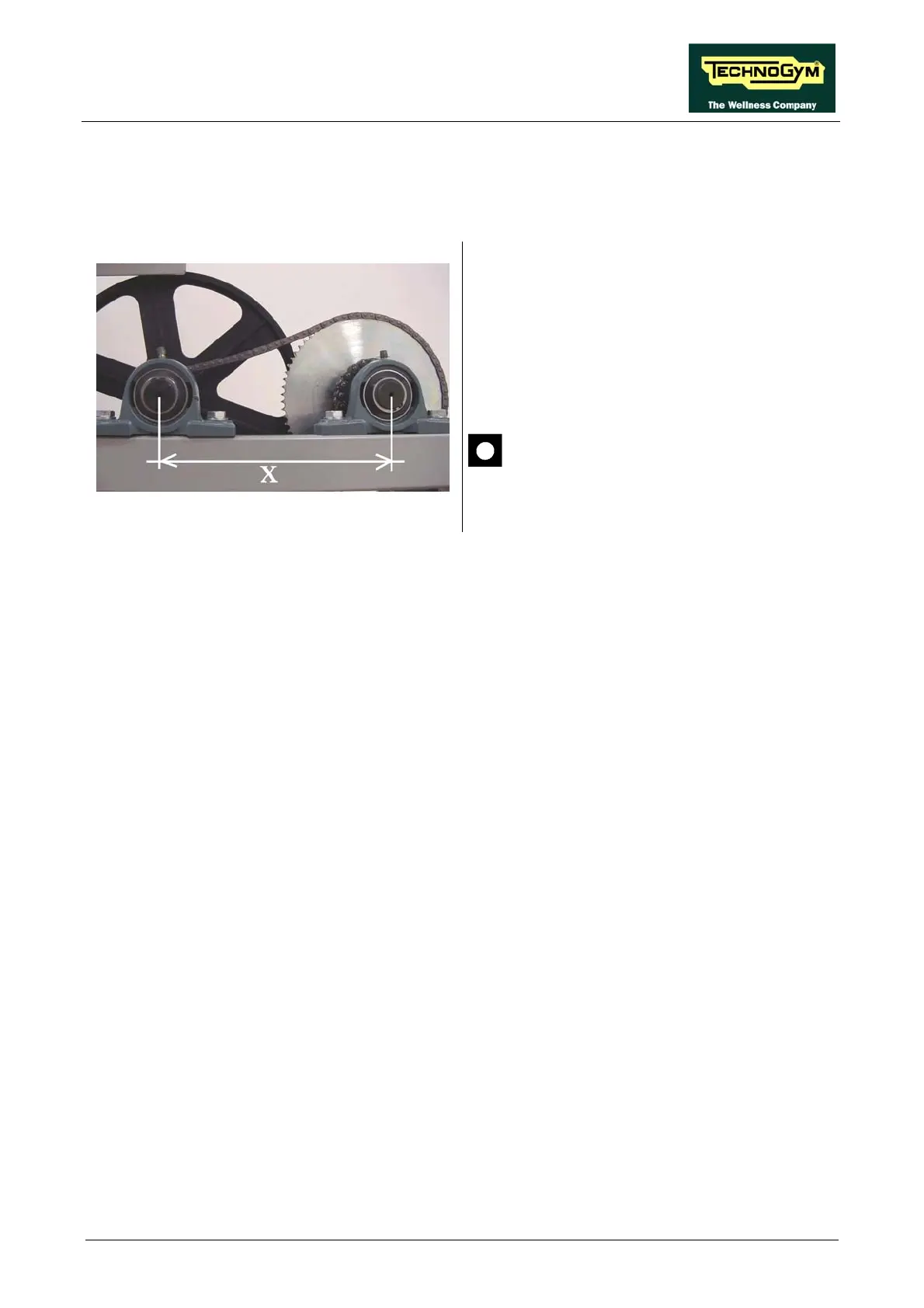

Figure 8.5-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
1. In order to adjust the chain tension, check
that the centre distance “x” between the
primary and secondary shafts is 25.6 cm on
both the right and left hand side.
After completing the procedure, check
the alignment of the chain and the belt,
as described in the previous procedures.
