STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.40
7.16. DISASSEMBLING THE SPEED SENSOR
Only for 500i, 700i and 700i E versions.

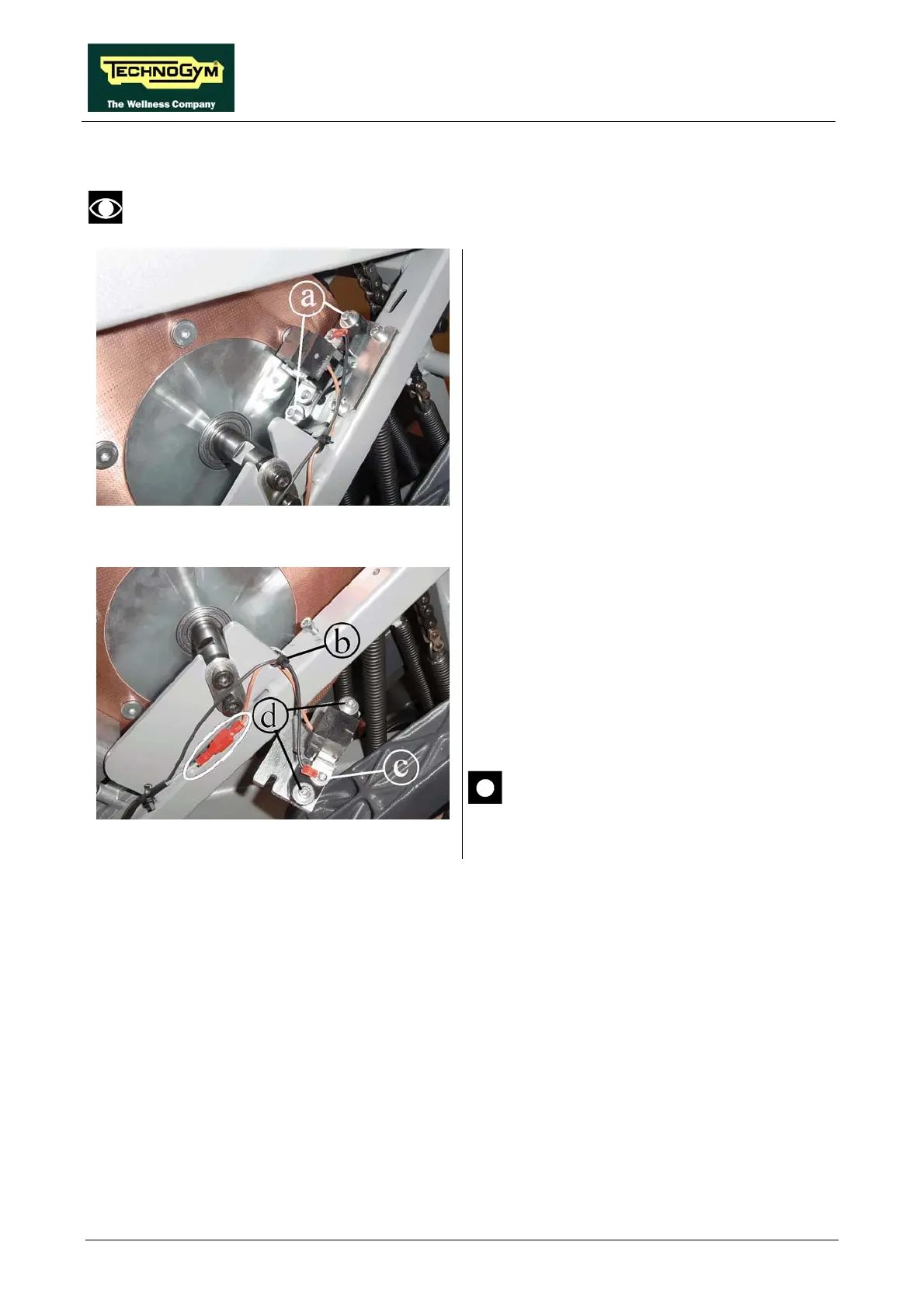

Figure 7.16-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
1. Back off the 2 screws a using a 4-mm hex
wrench.
2. Remove the speed sensor and its support.
Figure 7.16-2
3. Cut the cable tie b.
4. Unplug the faston indicated in the figure.
5. Back off the screw c using a small Phillips
screwdriver and remove the eyelet.
6. Back off the 2 screws d using a Phillips
screwdriver, and remove the sensor.
To reassemble the speed sensor, carry out the
above steps in reverse order.
After completing the reassembly, adjust
the position of the sensor as described in
paragraph 8.2. “Speed sensor position”.
