Technogym Step 700i E - D Isassembling the Pedals

STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.27
7.9. DISASSEMBLING THE PEDALS

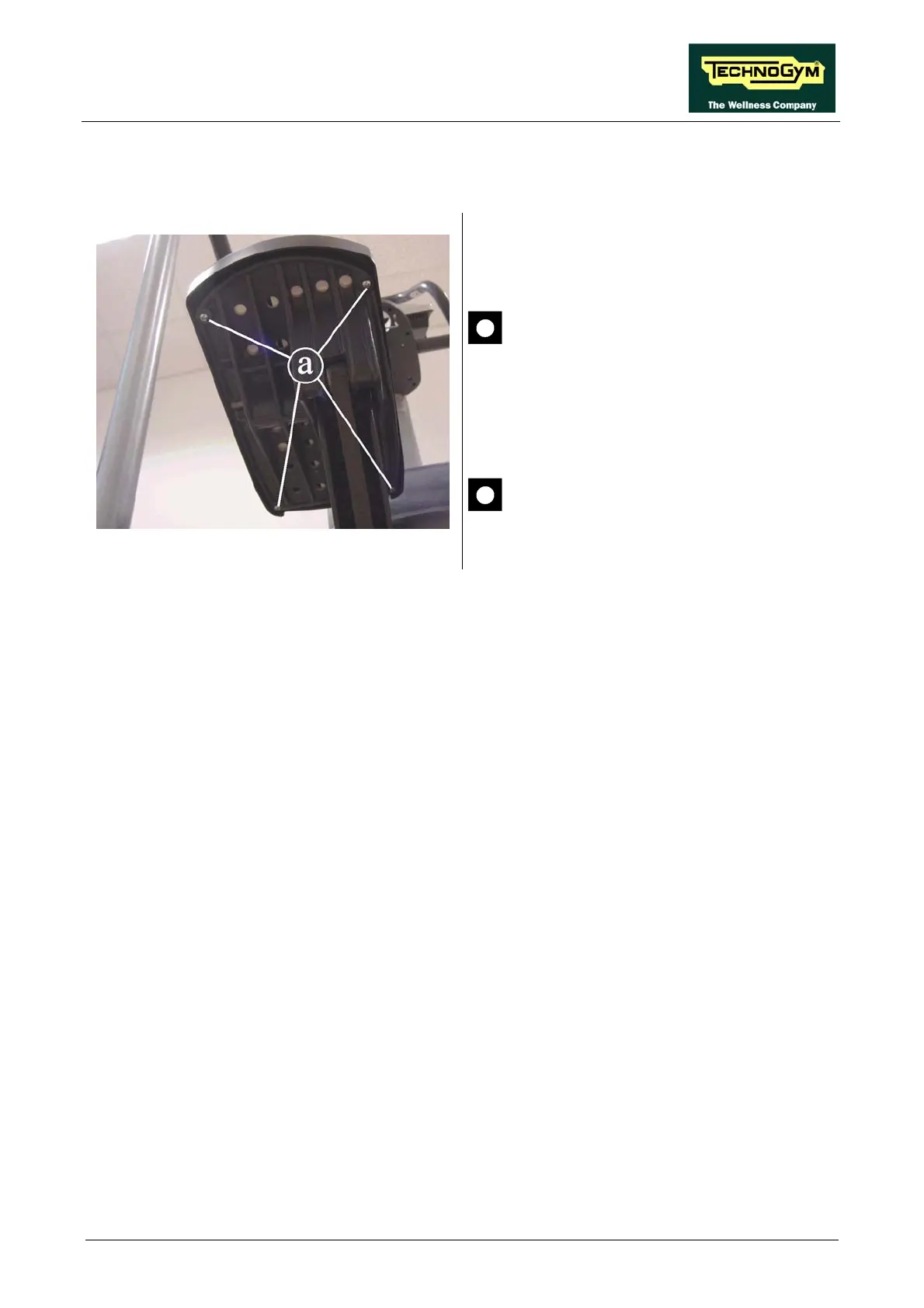

Figure 7.9-1
1. Back off the 4 screws a using a medium
Phillips screwdriver.
2. Remove the pedal.
During reassembly, lock down the
screws “a” using a torque wrench
setting of 2.5 Nm.
To reassemble the pedals, carry out the above
steps in reverse order.
During reassembly check that the
adhesive tape is present between the
plastic pedal and the metal plate.
