7.18. DISASSEMBLING THE PLATFORMS

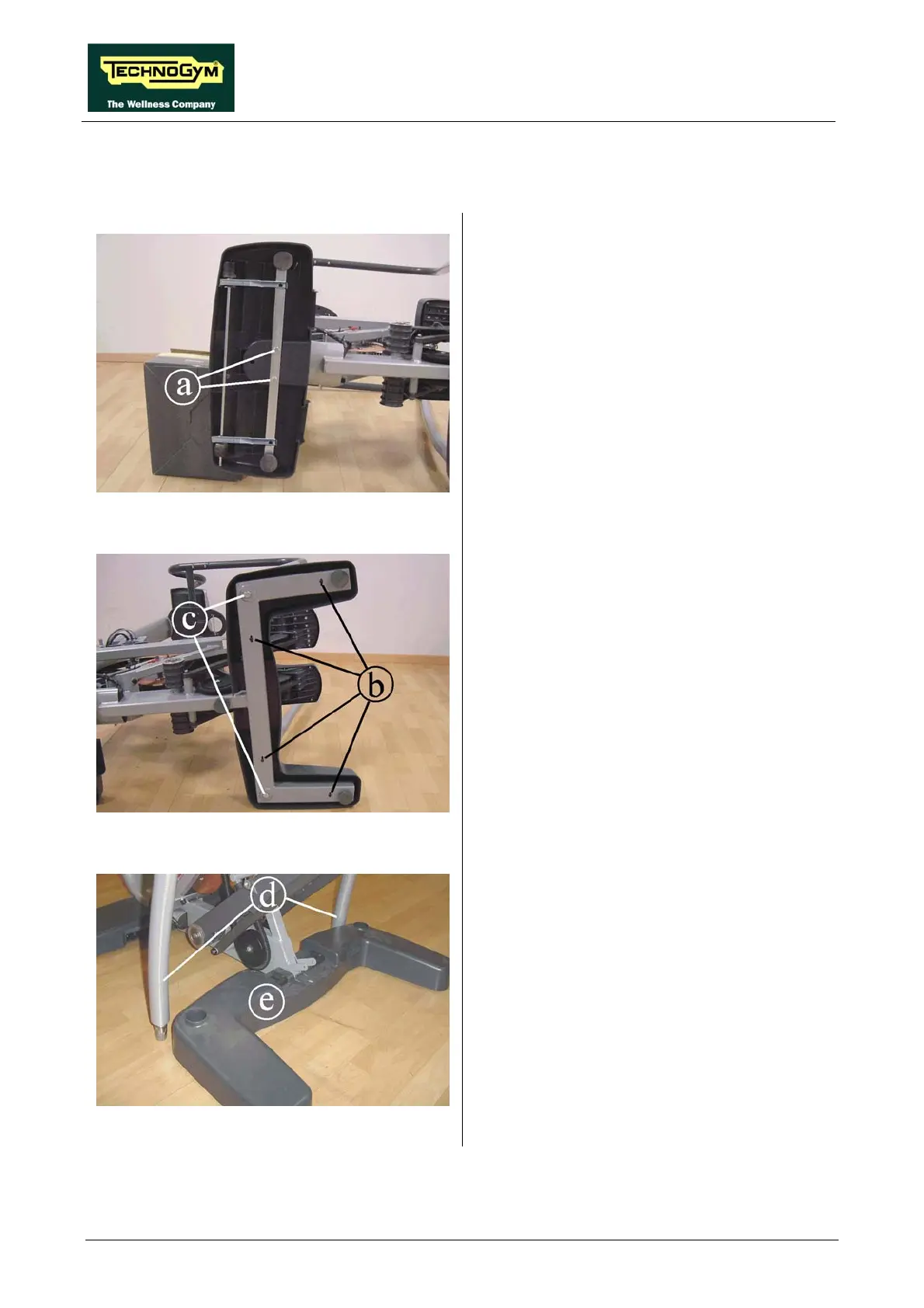

Figure 7.18-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
To disassemble the front platform:
1. Turn the machine over on one side, resting
the frame on a box to keep the platform
raised off the ground.
2. Carry out the operations described in
paragraph 7.17. “Disassembling the power
entry module and the wheels”, to remove the
power entry module.
3. Back off the 2 screws e using a 17-mm
wrench and remove the front platform.
Figure 7.18-2
To disassemble the rear platform:
1. Turn the machine over on one side:
2. Back off the 4 screws b, using a medium
Phillips screwdriver.
3. Back off the 2 screws c using a 17-mm
wrench, and remove the rear platform.
Figure 7.18-3
4. Replace the machine in its working position.
5. Carry out the operations described in
paragraph 7.5. “Disassembling the
handlebar” up to step 6.
6. Remove the handlebars d from the top.
7. Remove the rear platform e.
To reassemble the platforms, carry out the above
steps in reverse order.
