STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 8.3
8.3. BRAKE WINDING POSITION

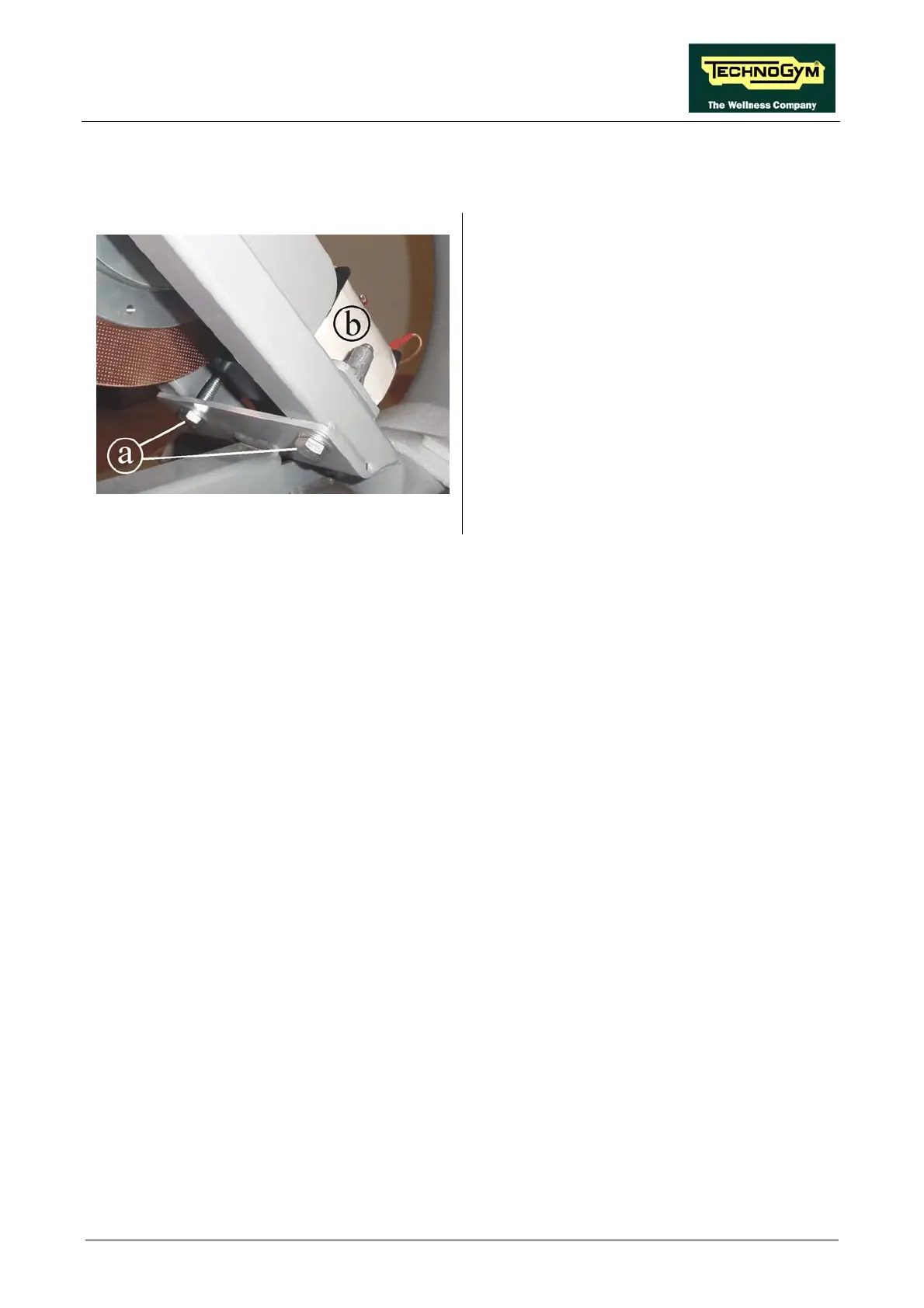

Figure 8.3-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
1. Back off the 2 screws a and position the
brake winding support b so that it is centered
on the copper disk, using a 1-m
m thickness
gauge.
2. Lock the screws back down.
