STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.31
7.12. DISASSEMBLING THE FLYWHEEL ASSEMBLY

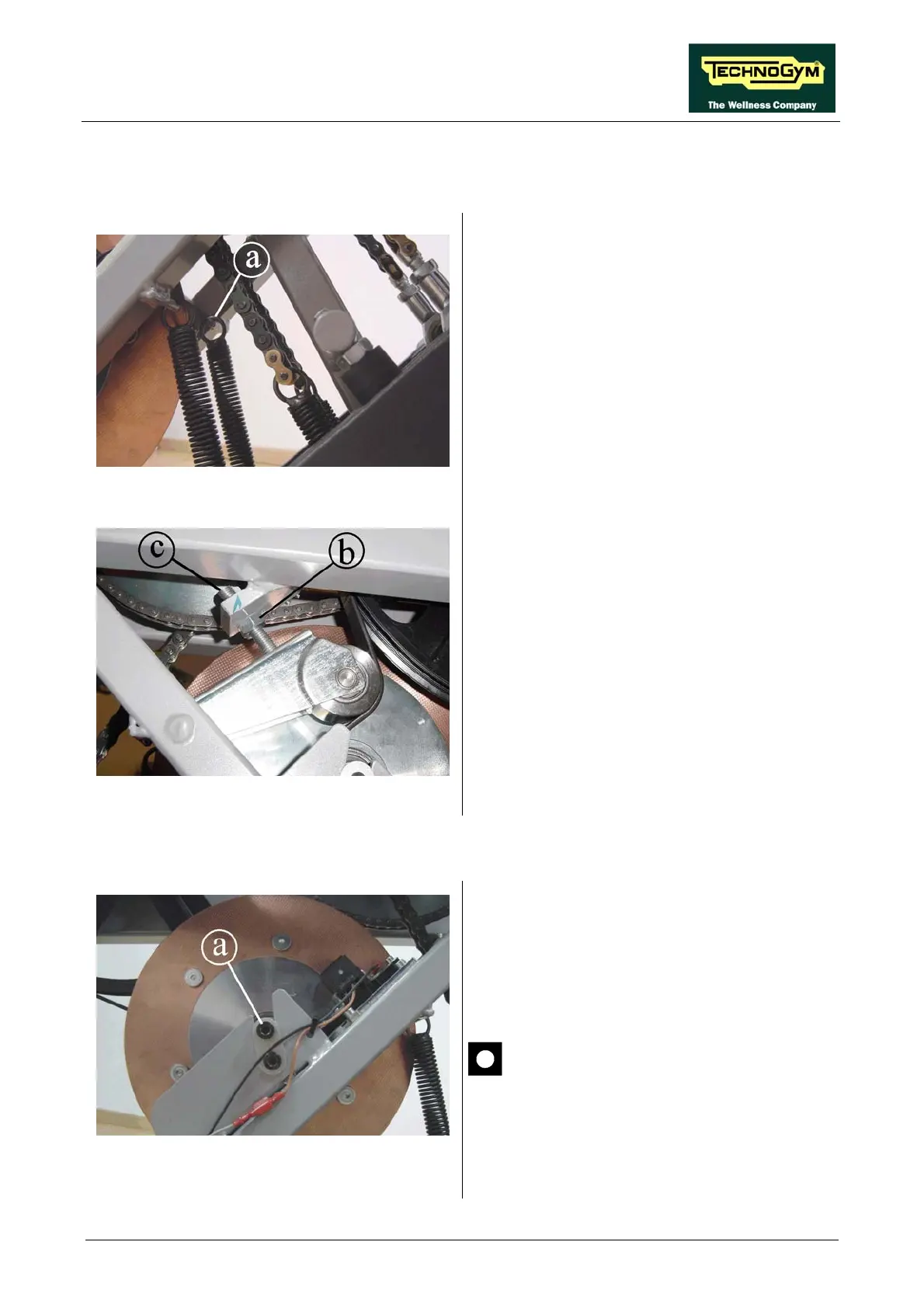

Figure 7.12-1
Carry out the operations described in paragraphs
7.7. “Disassembling the guards” and 7.11.
“Disassembling the brake winding”.
1. Remove the spring from the pin a on the
frame of the machine.
Figure 7.12-2
2. Back off the nut b of the belt tensioning
mechanism, using a 17-mm hex wrench.
3. Back off the grub screw c, using a 5-mm hex
wrench, in order to decrease the tension of
the belt.
P
OWERED MODELS 500I, 700I AND 700I E
Figure 7.12-3
On the left side of the machine:
1. Back off the screw a, using a 6-mm hex
wrench.
During reassembly, lock down the screw
“a” using a torque wrench setting of 25
Nm.
Continued on following page →
