STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.32

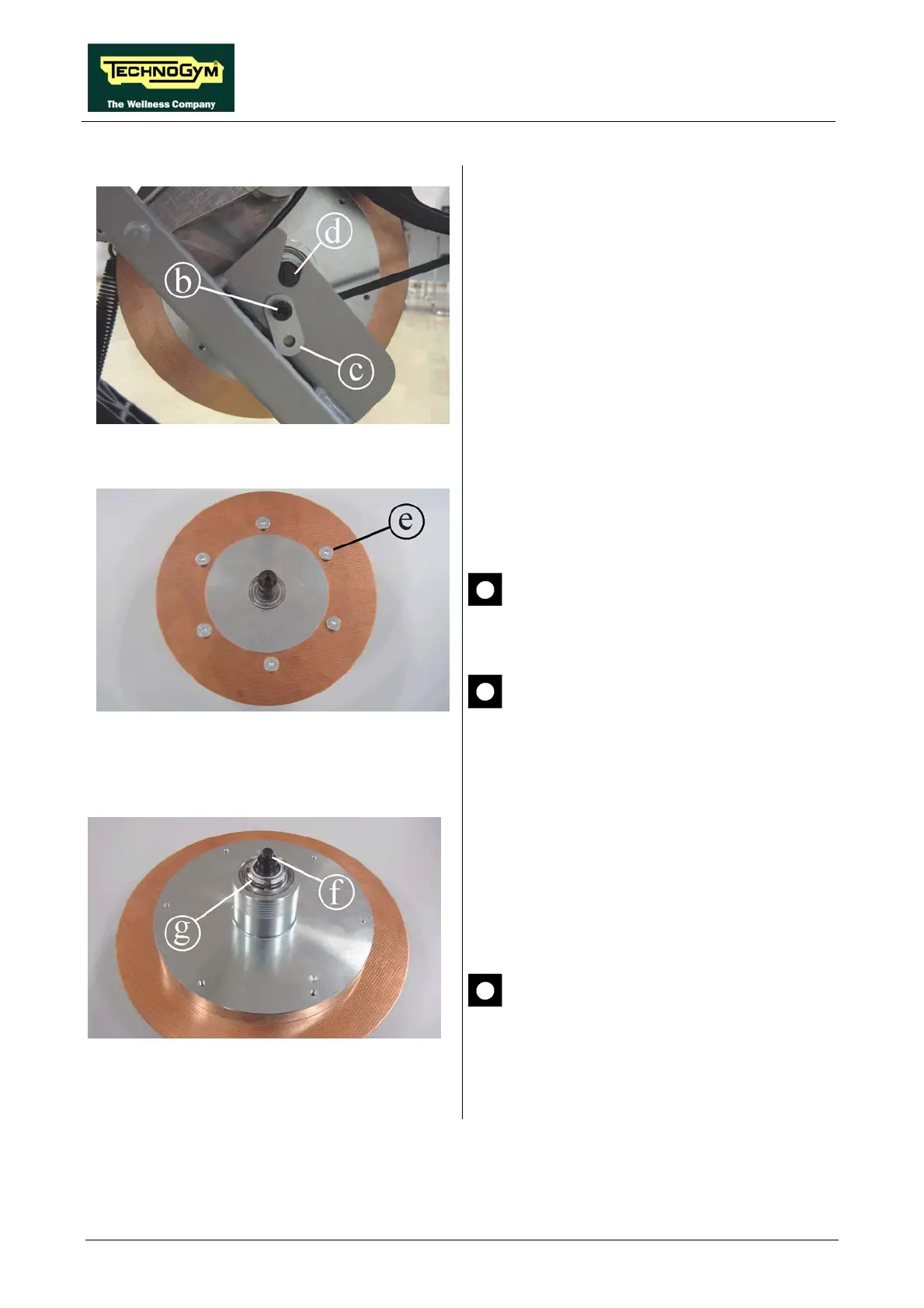

Figure 7.12-4
On the right side of the machine:
2. Back off the screw d using a 6-mm hex
wrench and release the pin d from the plate c,
as shown in the figure.
3. Remove the winding assembly, taking care
not to damage the copper disk.
Figure 7.12-5
To disassemble the copper disk:
1. Back off the 6 screws e using a 4-mm hex
wrench.
Take particular care with the copper
disk, as it bends easily and may then
cause problems after reassembly, by
brushing against the winding block.
During reassembly, lock down the
screws “e” using a torque wrench setting
of 6 Nm.
Figure 7.12-6
To disassemble the pin f:
1. Back off the ring g using a 17-mm ring nut
spanner, locking down the pin f with a 15-
mm wrench from the opposite side
To reassemble the flywheel assembly, follow the
above instructions in reverse order.
After completing the reassembly, adjust
the tension of the belt as described in
paragraph 8.1. “Belt tension” position of
the winding group as described in
paragraph 8.3. “Brake winding
position”.
