STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.33

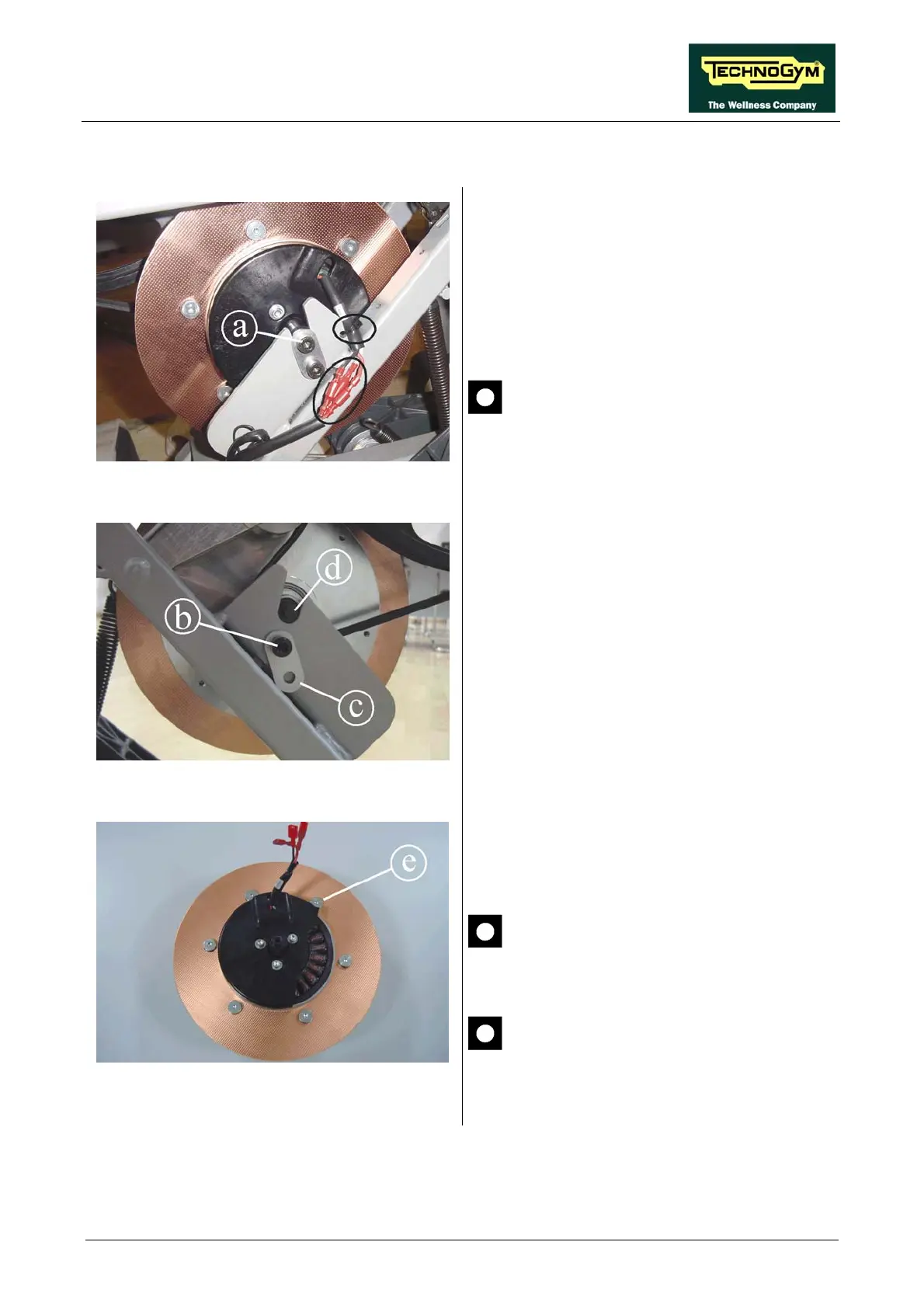

SELF POWERED MODELS 500I, 700I AND 700I E
Figure 7.12-7
On the left side of the machine:
1. Back off the screw a, using a 6-mm hex
wrench.
2. Cut the cable tie and unplug the connectors
shown in the picture to side.
During reassembly, lock down the screw
“a” using a torque wrench setting of 25
Nm.
Figure 7.12-8
On the right side of the machine:
3. Back off the screw b using a 6-mm hex
wrench and release the pin d from the plate c,
as shown in the figure.
4. Remove the winding assembly, taking care
not to damage the copper disk.
Figure 7.12-9
To disassemble the copper disk:
1. Back off the 6 screws e using a 4-mm hex
wrench.
Take particular care with the copper
disk, as it bends easily and may then
cause problems after reassembly, by
brushing against the winding block.
During reassembly, lock down the
screws “e” using a torque wrench setting
of 6 Nm.
Continued on following page →
