STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.34

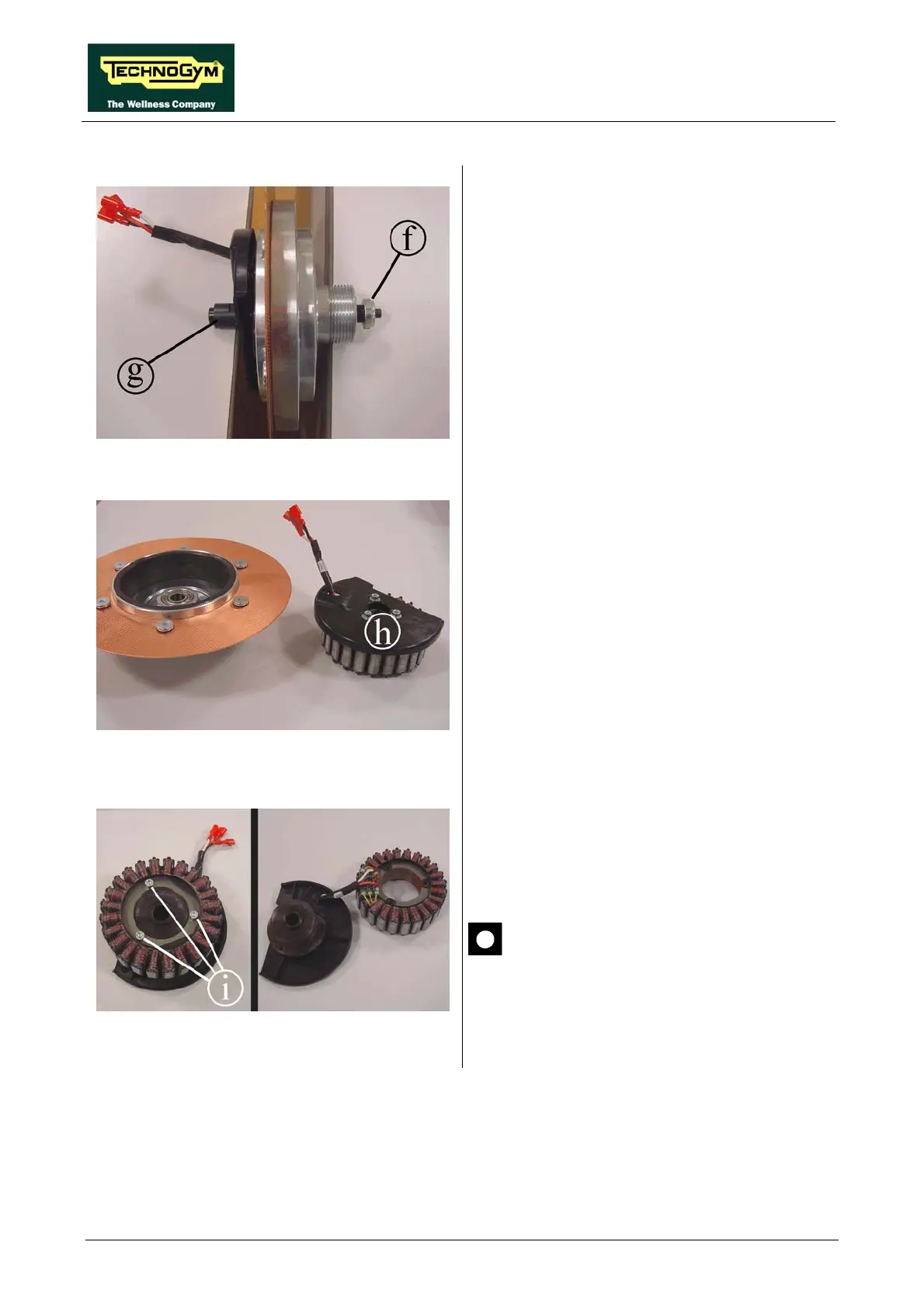

Figure 7.12-10
To disassemble the stator assembly:
1. Back off the ring g using a 17-mm ring nut
spanner, locking down the pin f with a 15-
mm wrench from the opposite side
Figure 7.12-11
2. Remove the stator h, from flywheel
assembly.
Figure 7.12-12
3. Back off the 3 screws i using a 4-mm hex
wrench and separate the winding from the
plastic protection.
To reassemble the flywheel assembly, follow the
above instructions in reverse order.
After completing the reassembly, adjust
the tension of the belt as described in
paragraph 8.1. “Belt tension” position of
the winding group as described in
paragraph 8.3. “Brake winding
position”.
