STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.30
7.11. DISASSEMBLING THE BRAKE WINDING

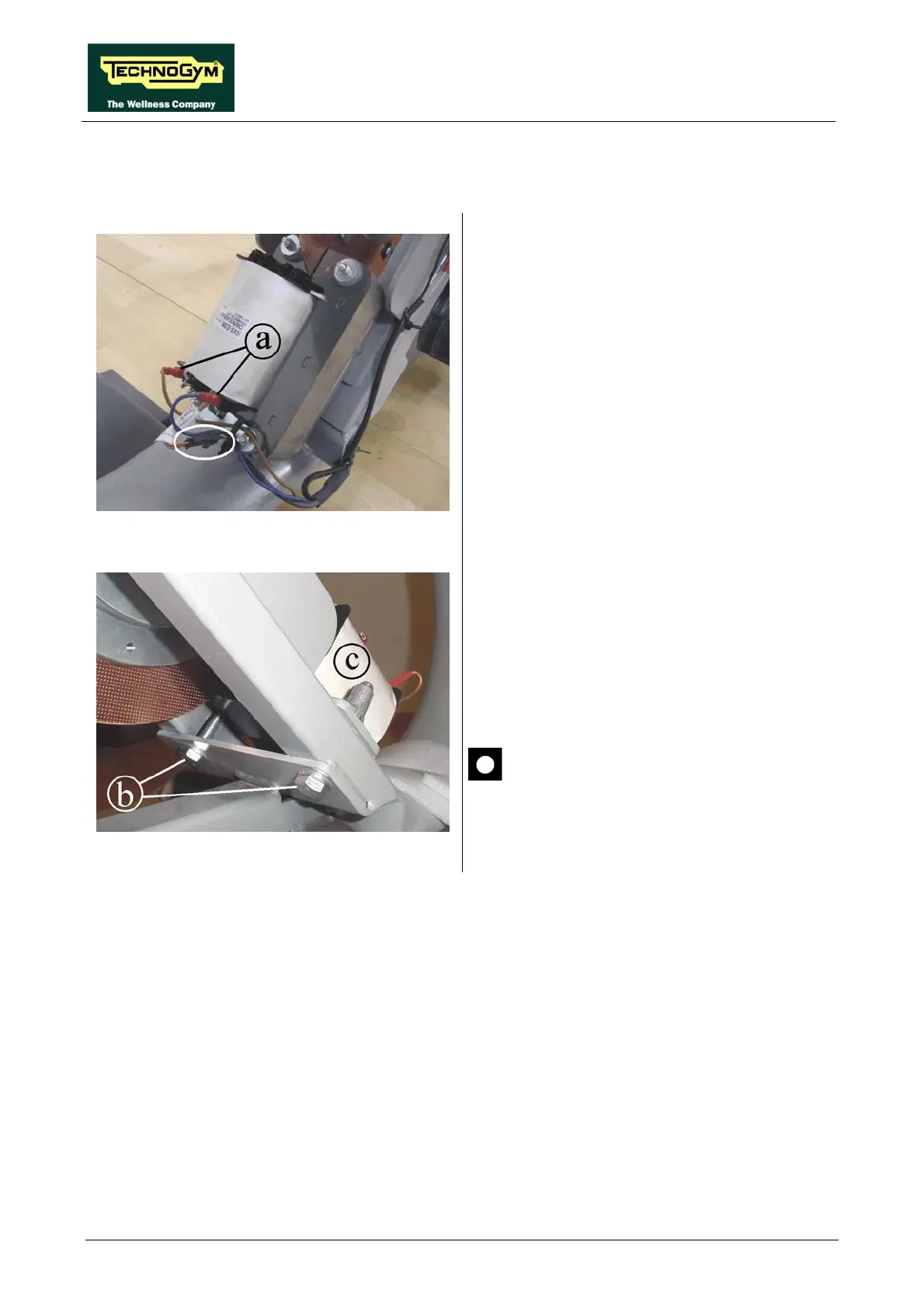

Figure 7.11-1
Carry out the operations described in 7.7.
“Disassembling the guards” for removing the
rear guards.
1. Unplug the two Faston connectors a from the
winding.
2. Unplug the connector circled in the figure at
left.
Figure 7.11-2
3. Back off the 2 screws b using an 17-mm
wrench, supporting the entire brake winding
group c, to avoid damaging the copper disk.
4. Remove the brake winding assembly
To reassemble the brake winding, carry out the
above steps in reverse order.
After completing the reassembly, adjust
the position of the winding group as
described in paragraph 8.3. “Brake
w
inding position”.
