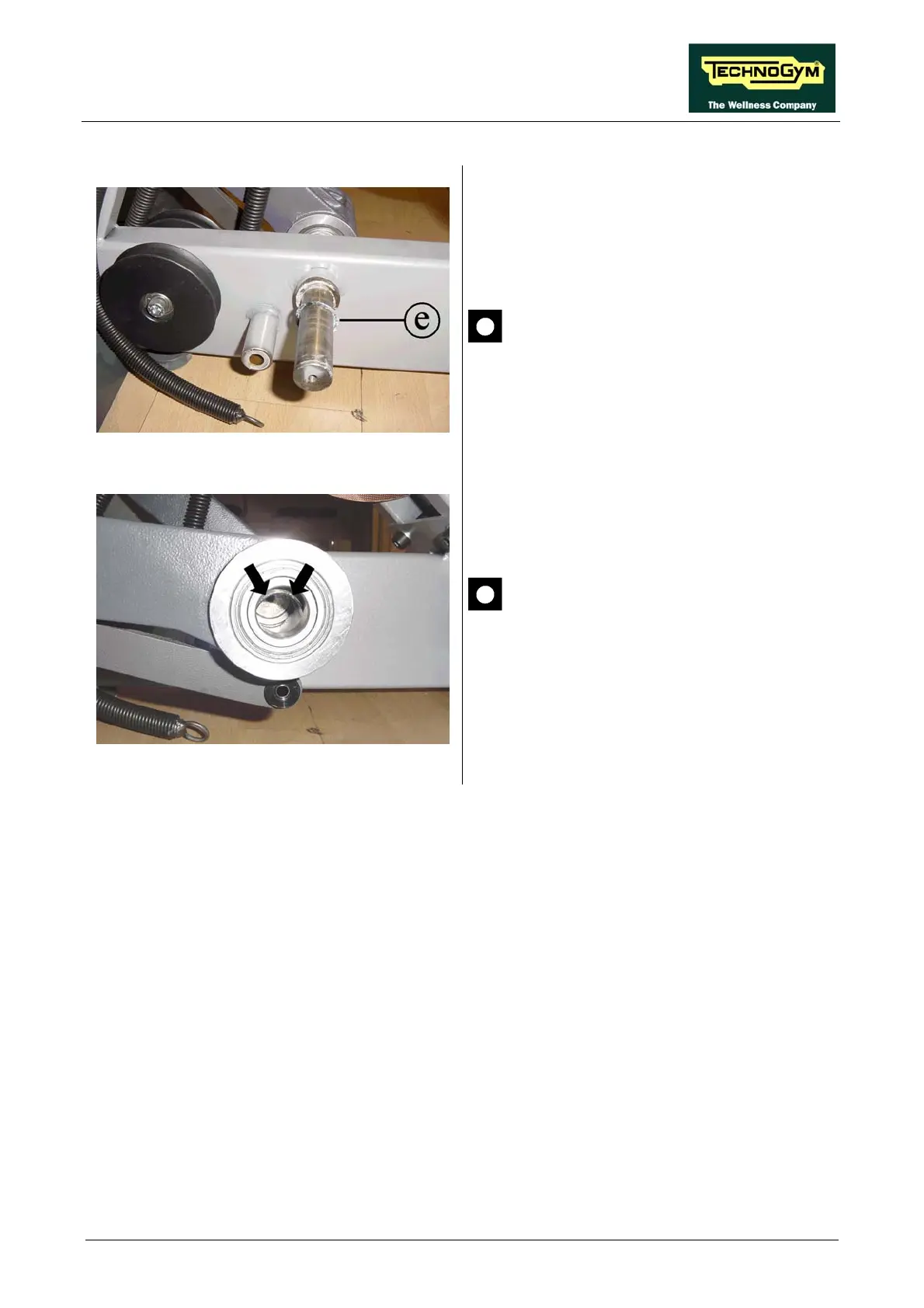

Figure 7.10-4
To reassemble the pedal levers, carry out the
above steps in reverse order.
Before re-inserting the lever on the pins
as shown in the figure, remember to
insert the lock washer “e”.
Figure 7.10-5
To re-insert the lever, align the inner
spacer, indicated by the arrows in the
photo, as this will otherwise impede
assembly.
