Technogym Step 700i E - D Isassembling the Handlebar

STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.21
7.5. DISASSEMBLING THE HANDLEBAR

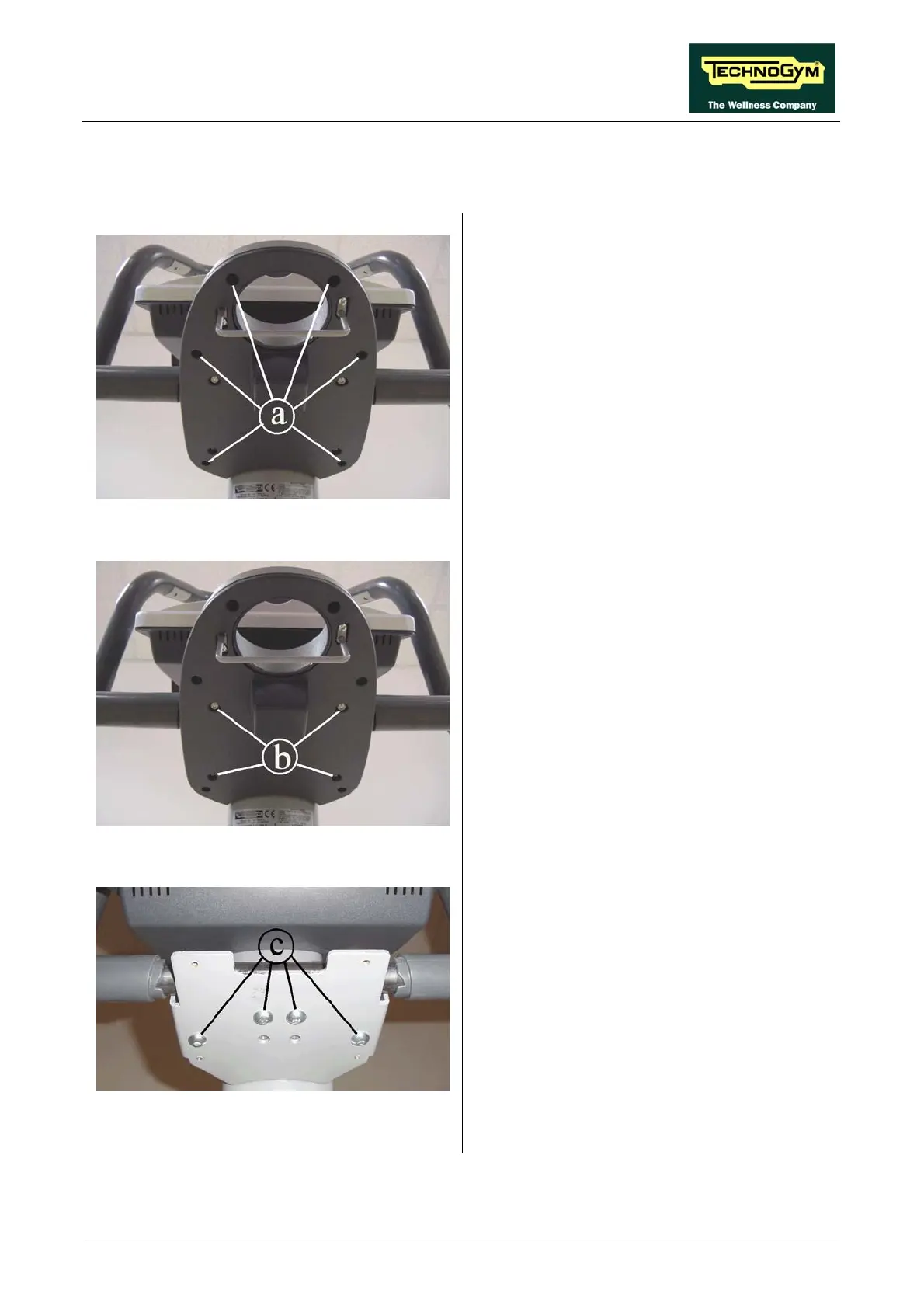

Figure 7.5-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 6 screws a using a medium
Phillips screwdriver.
3. Remove the upper tray.
Figure 7.5-2
4. Back off the 4 screws b using a 4-mm hex
wrench.
5. Remove the lower tray bracket.
Figure 7.5-3
6. Back off the 4 screws c using a 6-mm hex
wrench.
Continued on following page →
