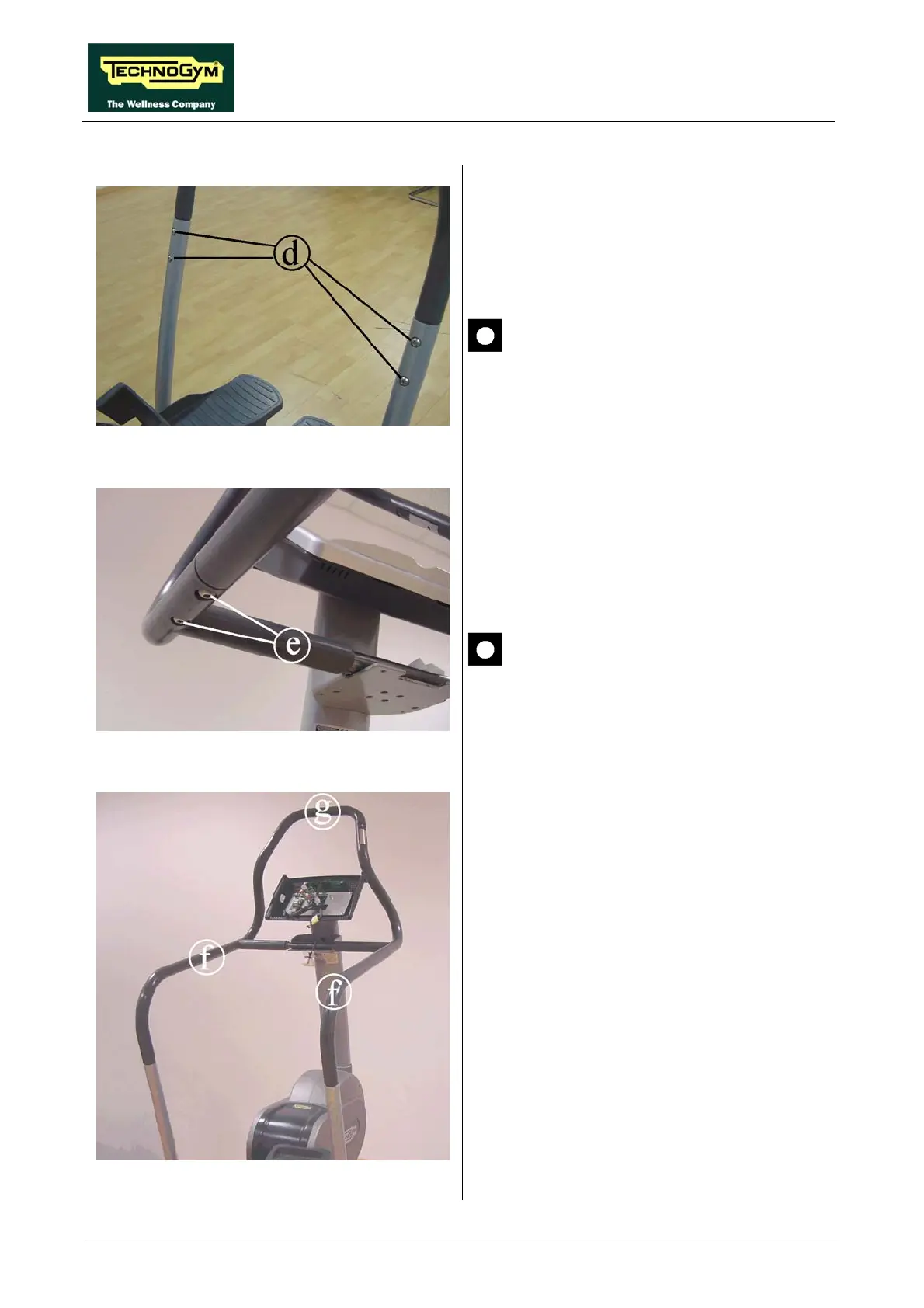

Figure 7.5-4
7. Back off the 4 screws d using a 5-mm hex
wrench.
8. Remove the handgrips.
During reassembly, lock down the
screws “d” using a torque wrench
setting of 30 Nm.
Figure 7.5-5
To disassemble all parts of the handlebar:
1. Back off the 2 screws e using a 6-mm hex
wrench.
During reassembly, lock down the
screws “e” using a torque wrench setting
of 30 Nm.
Figure 7.5-6
It is now possible to separate the two side
handlebars f and the upper central one g.
To reassemble the handlebar, carry out the above
steps in reverse order.
