STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 8.2
8.2. SPEED SENSOR POSITION

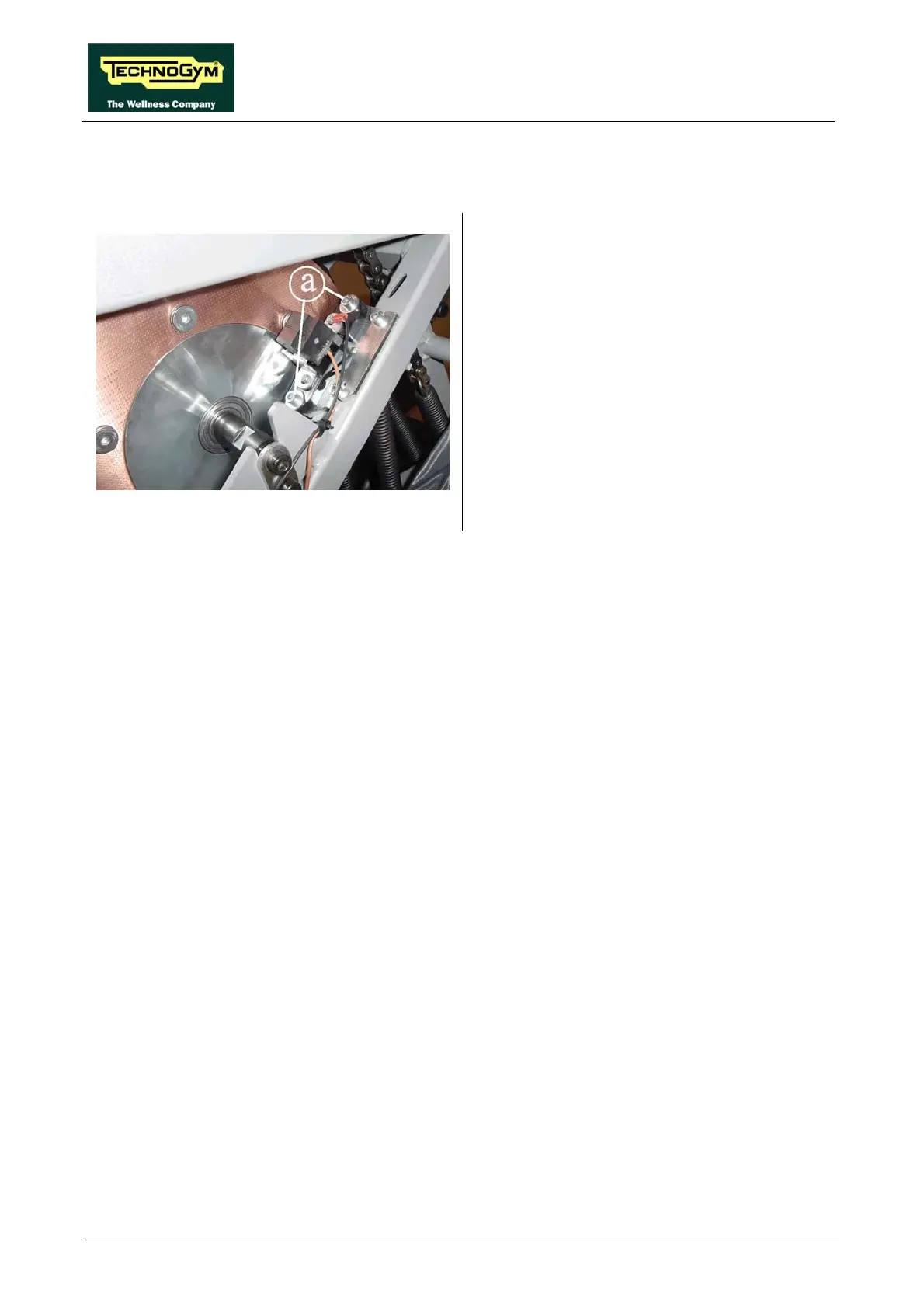

Figure 8.2-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
1. Back off the 2 screws a and shift the speed
sensor support to the side, so that it is 0.7
mm from the screws on the copper disk.
2. Lock the screws back down.
