STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.5

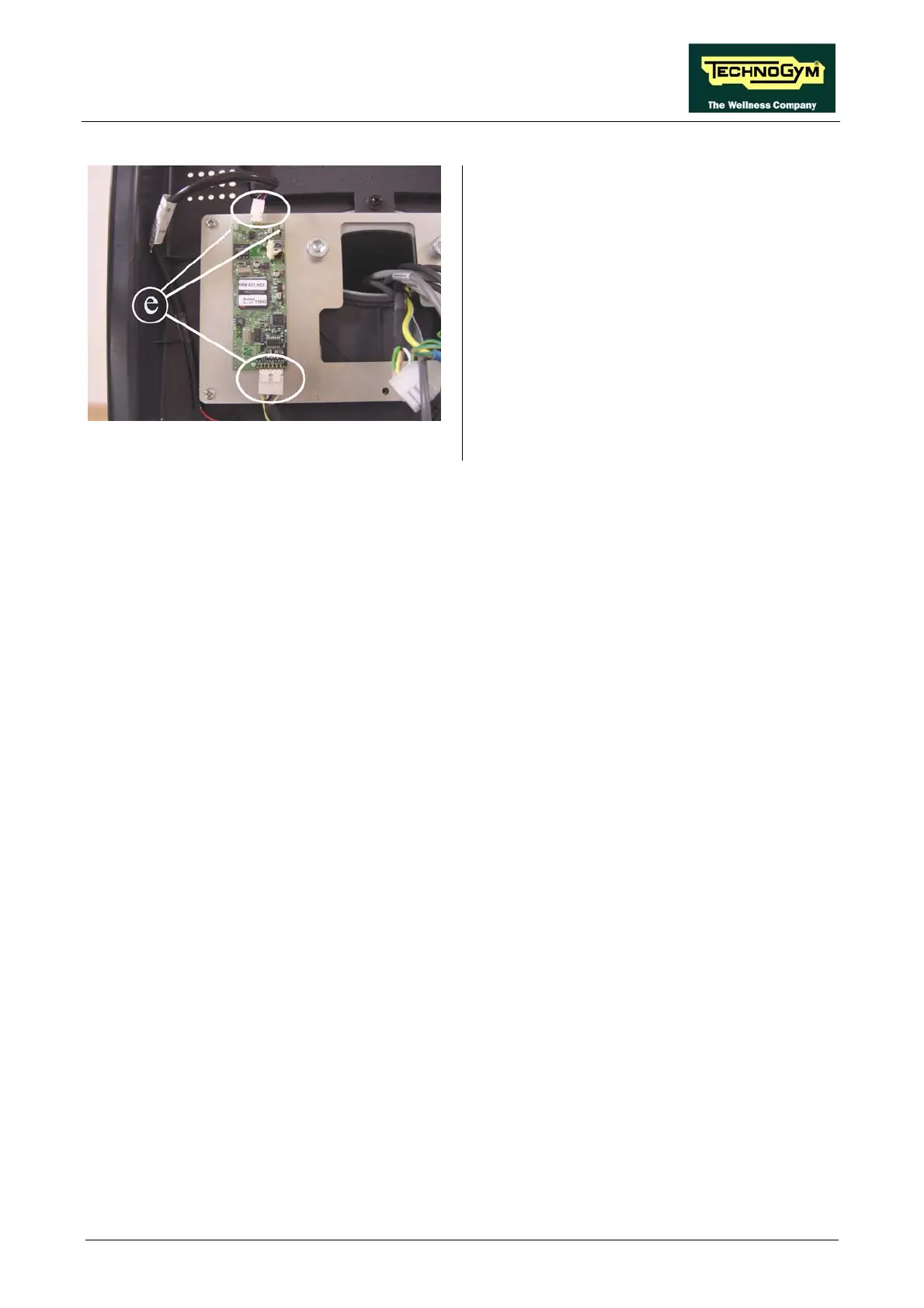

Figure 7.2-4
To remove the hand sensor board:
1. Unplug the 2 connectors indicated in the
figure.
2. Release the 3 clips e and remove the hand
sensor board.
To reassemble the electronics boards, carry out
the above steps in reverse order.
