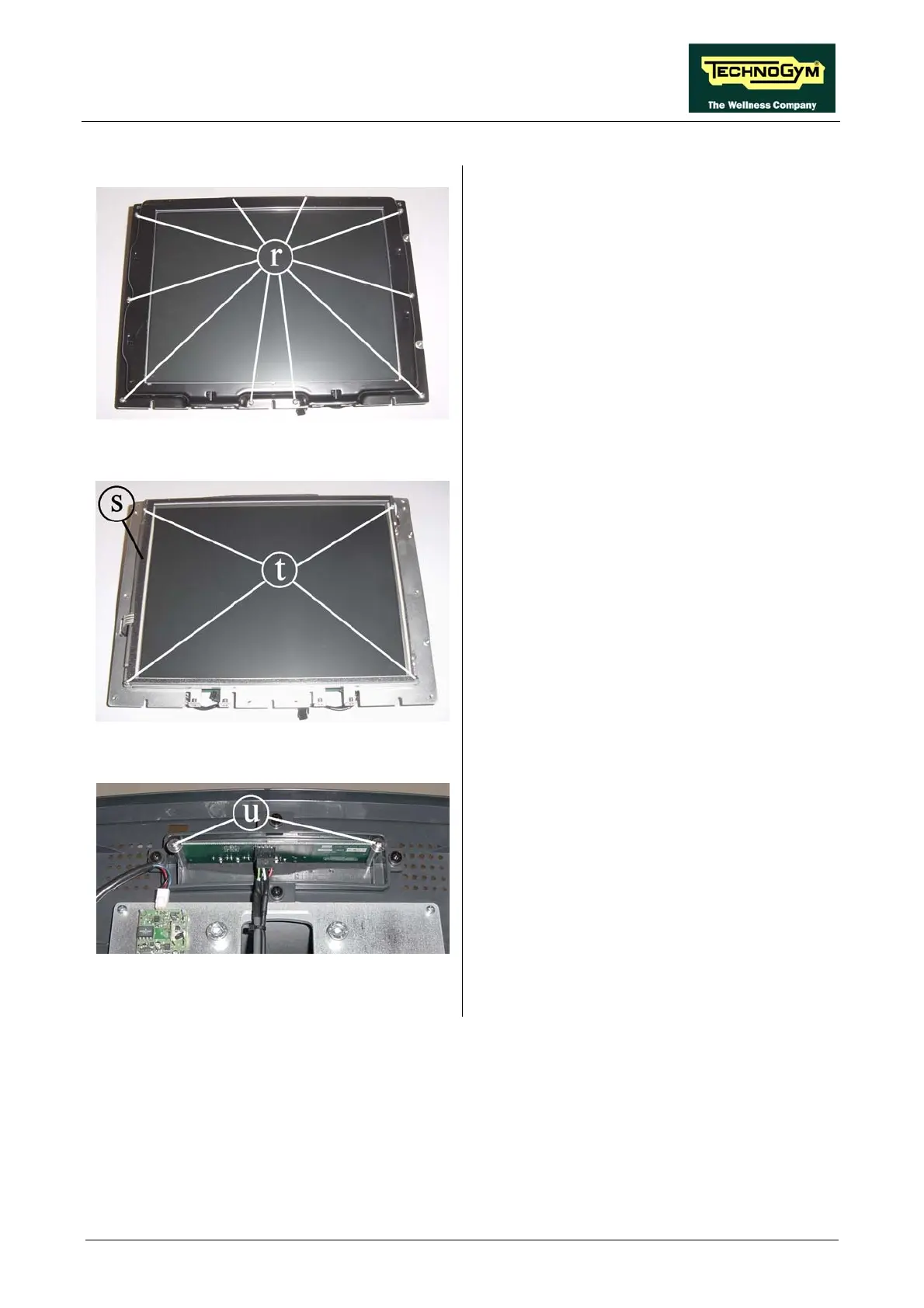

Figure 7.2-20
7. Back off the 10 screws r using a small
Phillips screwdriver.
8. Remove the touch screen protection plate.
Figure 7.2-21
9. Shift on one side, the touch screen s paying
attention to its cable.
10. Back off the 4 screws t using a small Phillips
screwdriver.
11. Lift up and remove the LCD.
Figure 7.2-22
To disassemble the AUX input board:
1. Work on the rear display support.
2. Back off the 2 screws s using a small Phillips
screwdriver.
3. Remove the board from its housing.
Continued on following page →
