Oscilloscope Reference Set up a histogram measurement
To use

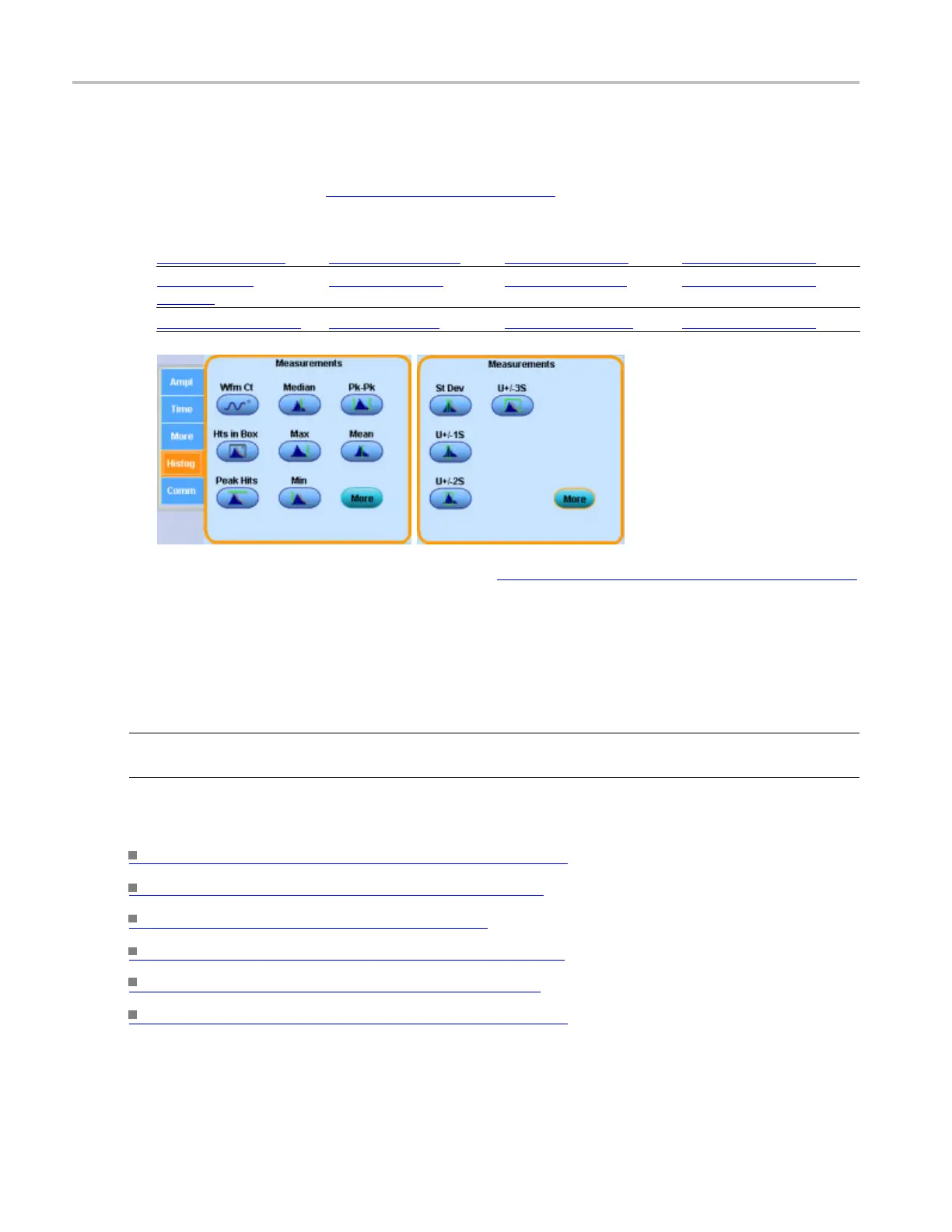

Use the Histog tab to select automatic histogram m easurements.
1. Select a source with the Channels Selector
(see page 258).
2. Click a Measurements button to add a Histogram measurement to the Measure list:
WfmCt (see page 869) Median (see page 869) Pk-Pk (see page 869) U+ /-1S (see page 870)
Hits in Box (see
page 869)
Max (see page 869) Mean (see page 869) U+ /-2S (see page 870)
Peak Hits (see page 869) Min (see page 869) St Dev (see page 869) U+ /-2S (see page 870)
xxx
3. Click Display On in the upper-right corner of the Measurement Setup Control Window (see page 290)
to turn the measurement display on and off.
Behavior
Measurements are updated approximately three times a second, or less for long record lengths.
Measurements are calculated after each acquisition. You can display up to eight automatic measurements.
TIP. Select the individual measurements directly from the Measure menu Histogram Measurements
sub
menu.
What do you want to do next?
Learn about taking amplitude measurements. (see page 270)
L
earn about taking timing measurements.
(see page 273)
Learn about other measurements. (see page 282)
Learn about communications measurements. (see page 278)
Learn more about the Measurements list. (see page 870)
Learn more about the Measurement controls. (see page 286)
868 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
