SPECIFICATIONS
Product Information

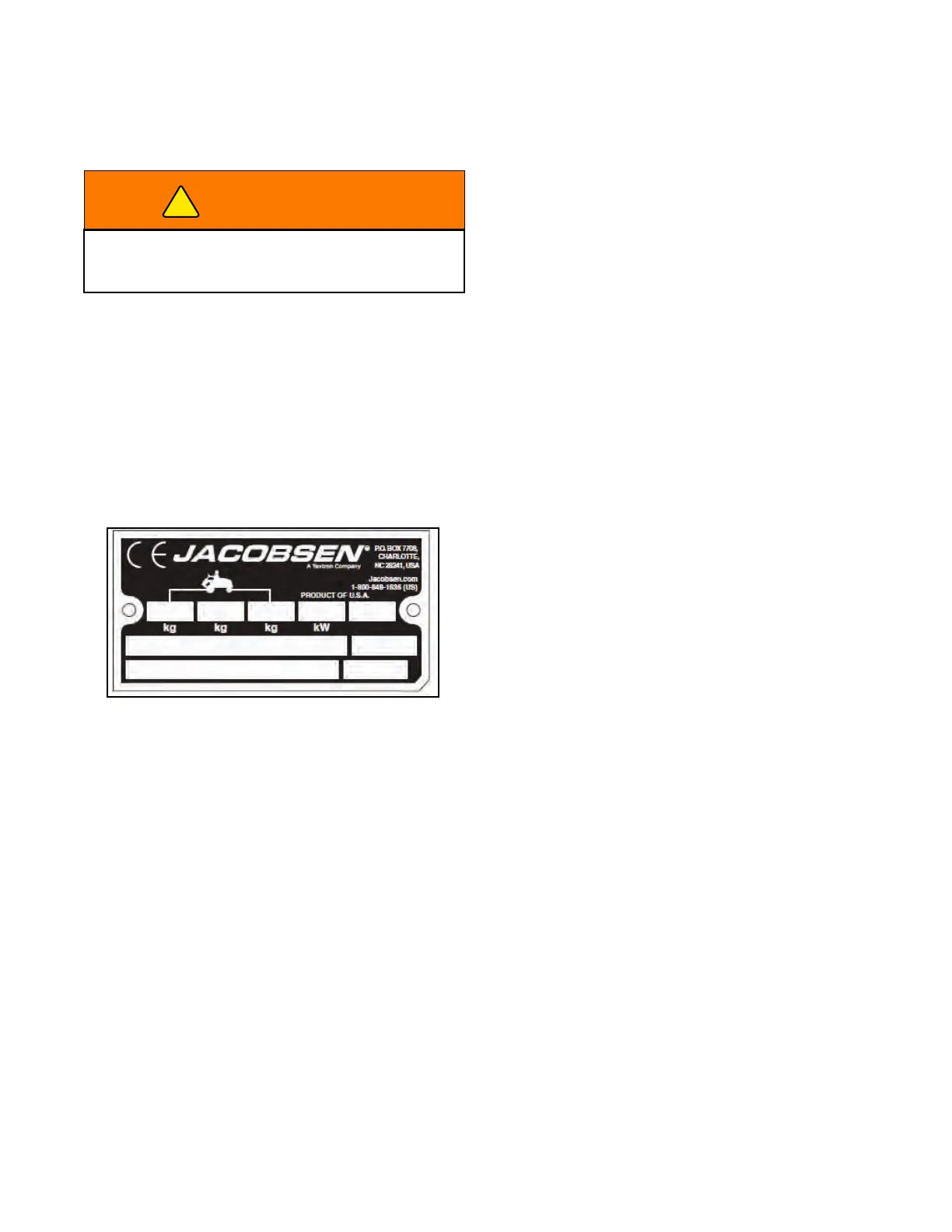

An identification plate, like the one shown, listing the
serial number, is attached to the frame of the tractor
near the center lift arm mount (Figure 1A-2).
Always provide the serial number of the unit when
ordering replacement parts or requesting service infor-
mation.
Figure 1A-1. Serial Plate
Engine
Make/Model..........................D1305-E3B Kubota Diesel
Cylinders..................................................................... 3
Displacement..............................76.95 cu. in. (1261 cc)
Cooling.....Liquid Cooled/w 15 in (381 mm) 8 blade fan
Air filter..............Donaldson dry type w/evacuator valve
Alternator .......................................................... 40 amp
Max rated horsepower ......29.1 (21.7 kW) @ 3000 rpm
Torque......................59.1 ft-lbs (80.1 Nm) @ 2000 rpm
High idle speed .............................................. 3220 rpm
Low idle speed............................................... 1750 rpm
Fuel capacity....................................9 US gal (34 liters)
Hydraulic System
Capacity...........................................6.8 gal (25.7 liters)
Fluid Type ................................................Jac. (10W30)
Cooling (type)..........................................Hyd. oil cooler
Filter micron rating ......10 micron suction filter w/gauge
Traction System
Drive..Hydrostatic Traction Pump to front wheel motors
in a parallel-series flow to rear wheel motors (4WD).
Forward speed ...........................0-10 mph (0-16.1 kph)
Mow speed.....................................0-6 mph (0-9.6 kph)
Reverse speed...............................0-3 mph (0-4.8 kph)
Traction Pump max flow.............. 18.8 gpm (71.16 lpm)
System relief setting......................... 3625 psi (250 bar)
Deck System
Drive...........Hydraulic gear pump and motor w/ electro/
hydraulic control valve
Deck number & size...(1) 63 in or 72 in side discharge,
60 in or 72 in rear discharge, 60 in or 72 in Envirodeck,
or 60 in Fine-cut Flail
Deck section pump flow ................... 14 gpm (52.9 lpm)
Deck section relief setting ............. 3200 psi (220.7 bar)
60 in rear discharge
Number of blades & size per deck ............................(3)
................0.25 in (6.4 mm) thick x 21 in (533 mm) long
Blade tip speed ...................... 12744 ft/min (4189 m/m)
Deck material thickness
.......................................11 gauge 0.1196 in (3.74 mm)
...............................7 gauge skirts 0.1875 in (4.76 mm)
Height of cut range..................1-4.75 in (25.4-121 mm)
63 in side discharge
Number of blades & size per deck ............................(3)
................0.25 in (6.4 mm) thick x 22 in (559 mm) long
Blade tip speed ................... 14399 ft/min (4388.8 m/m)
Deck material thickness
.......................................11 gauge 0.1196 in (3.74 mm)
...............................7 gauge skirts 0.1875 in (4.76 mm)
Height of cut range..................1-4.75 in (25.4-121 mm)
72 in side and rear discharge
Number of blades & size per deck ............................(3)
................0.25 in (6.4 mm) thick x 25 in (635 mm) long
Blade tip speed ...................... 14071 ft/min (4289 m/m)
Deck material thickness
.......................................11 gauge 0.1196 in (3.74 mm)
...............................7 gauge skirts 0.1875 in (4.76 mm)
Height of cut range..................1-4.75 in (25.4-121 mm)
72 in Envirodeck
Number of blades & size per deck ............................(3)
..........0.25 in (6.4 mm) thick x 24.9 in (632.5 mm) long
Blade tip speed ...................... 17540 ft/min (5346 m/m)
Deck material thickness.... 10 gauge 0.135 in (3.4 mm)
Height of cut range..................1-4.75 in (25.4-121 mm)
WARNING
Certain vehicle components contain or emit chemi-
cals known to the state of California to cause cancer
and birth defects or other reproductive harm.
