ENGINE
3D-14
EXHAUST SYSTEM
Inspection
To protect personnel from carbon monoxide poisoning,
inspect the complete exhaust system regularly.
Inspect the exhaust system components for cracks,
holes, distortion, and exhaust leaks (Figure 3D-10).
Tighten or replace the exhaust clamps.

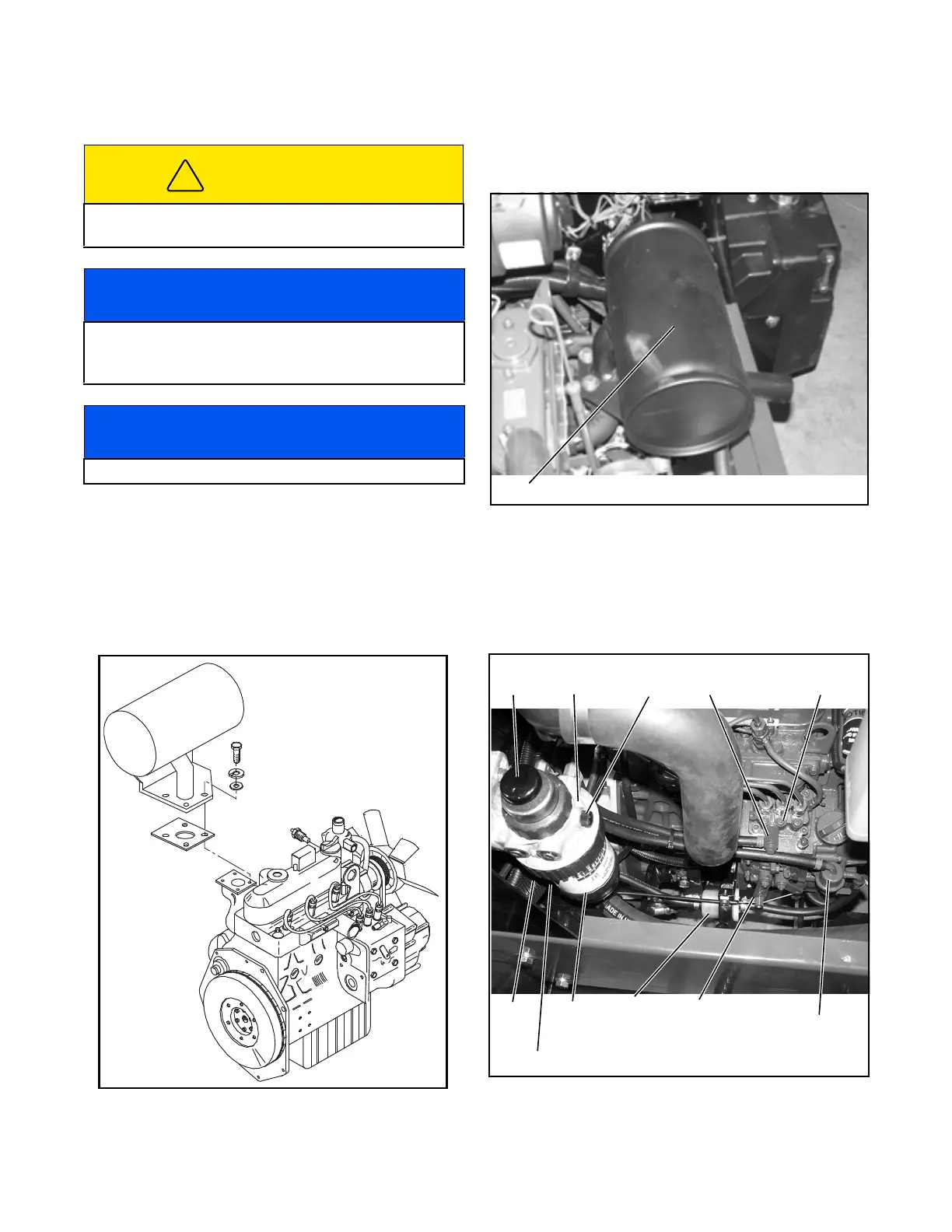

Figure 3D-10. Exhaust System Exploded View
Removal and Installation
Remove and install the exhaust system components as
shown in Figure 3D-11.
Figure 3D-11. Exhaust System Location
FUEL SYSTEM
The fuel system includes the fuel tank, inline fuel filter,
mechanical fuel pump, fuel/water separator, and
engine injection system (Figure 3D-12).
Figure 3D-12. Fuel System Component Location
CAUTION
Do not attempt to service the exhaust system when
the engine is hot. Serious personal injury can occur.
NOTICE
If a change in the color or sound of the exhaust
occurs, stop the engine immediately, identify the
problem and repair as necessary.
NOTICE
Tighten all exhaust manifold hardware evenly.
Muffler
Mounting
Hardware
Exhaust
Manifold
Gasket
Clamp
Ring
Filter
Bowl
Inline
Filter
Throttle
Cable and
Lever
Fuel Pump
Primer
Button
Fuel/Water
Separator
Air
Vent
Injection Pump
Air Vent
Injection
Pump
To Next Page
