HYDRAULICS
8D-18
ASSEMBLY
Swashblock
Position the hydrodynamic bearing in the housing so
that the pin is at the 8 o’clock position between protru-
sion and pump housing to assure CCW rotation
(Figure 8D-12).

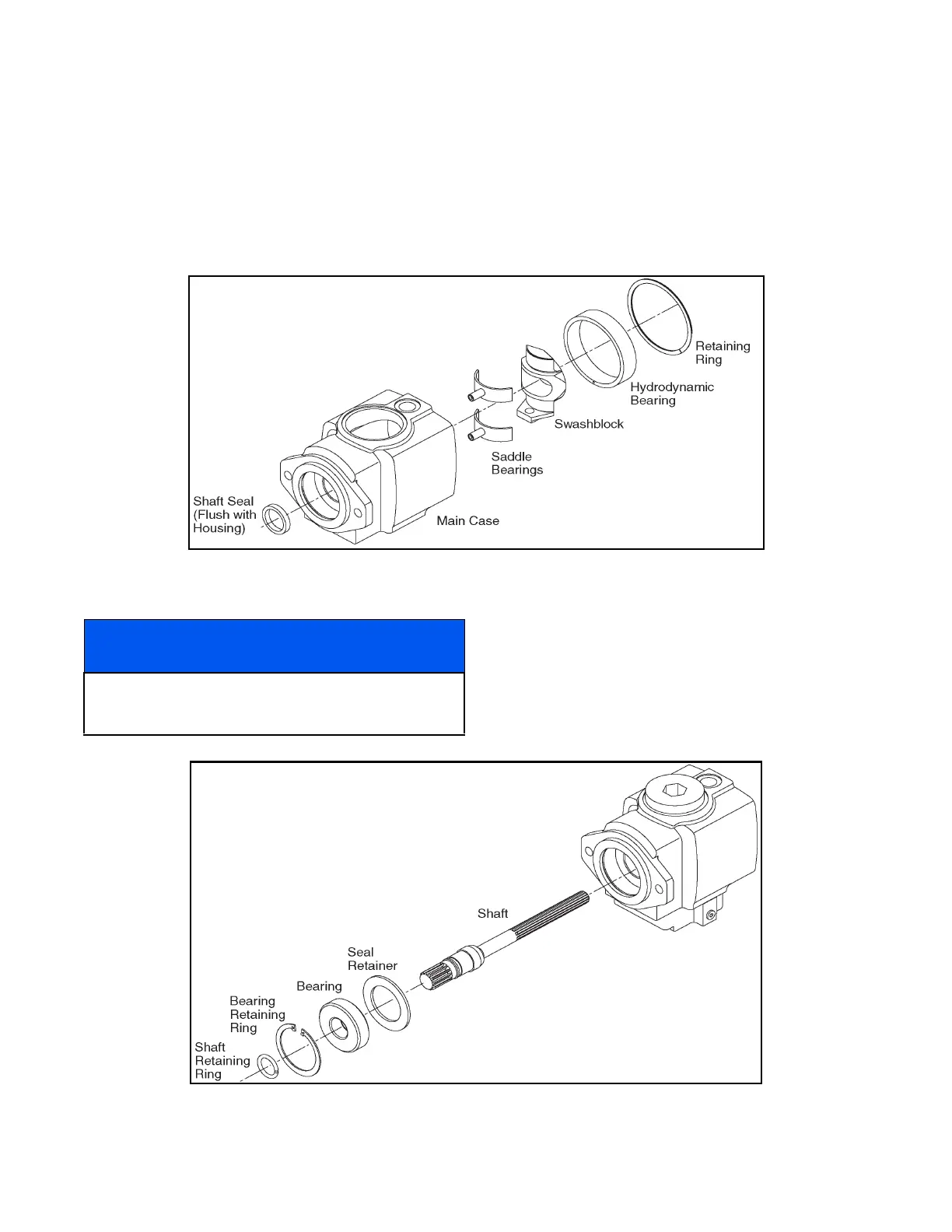

Figure 8D-12. Swashblock Group Assembly
Drive Shaft Group
Figure 8D-13. Drive Shaft Group Assembly
NOTICE
When installing the bearing, press on the outer
face. Install with numbers on bearing to the out-
side (Figure 8D-13).
