HYDRAULICS
8D-19

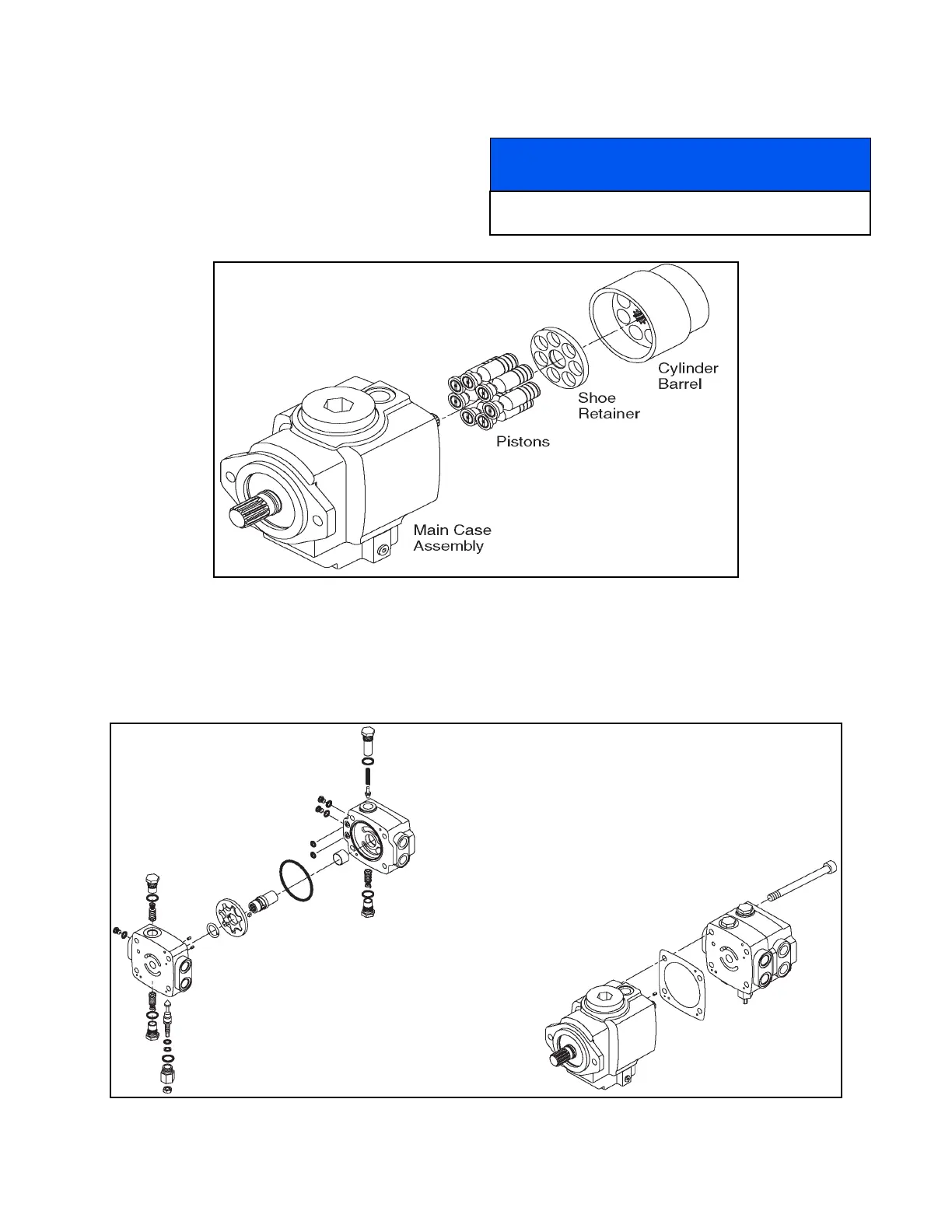

Rotating Group Assembly
Install the shoe retainer with the center curved surface
toward the fulcrum ball (Figure 8D-14).
Figure 8D-14. Rotating Group Assembly
Valve Plate, Gerotor Pump, Rear Plate
Assembly
See Figure 8D-15 for valve plate, gerotor pump, and
rear plate assembly.
Figure 8D-15. Valve Plate, Gerotor Pump, and Rear Plate Assembly
NOTICE
Do not force pistons into barrel. The pistons should
fit loosely.
