HYDRAULICS
8J-50

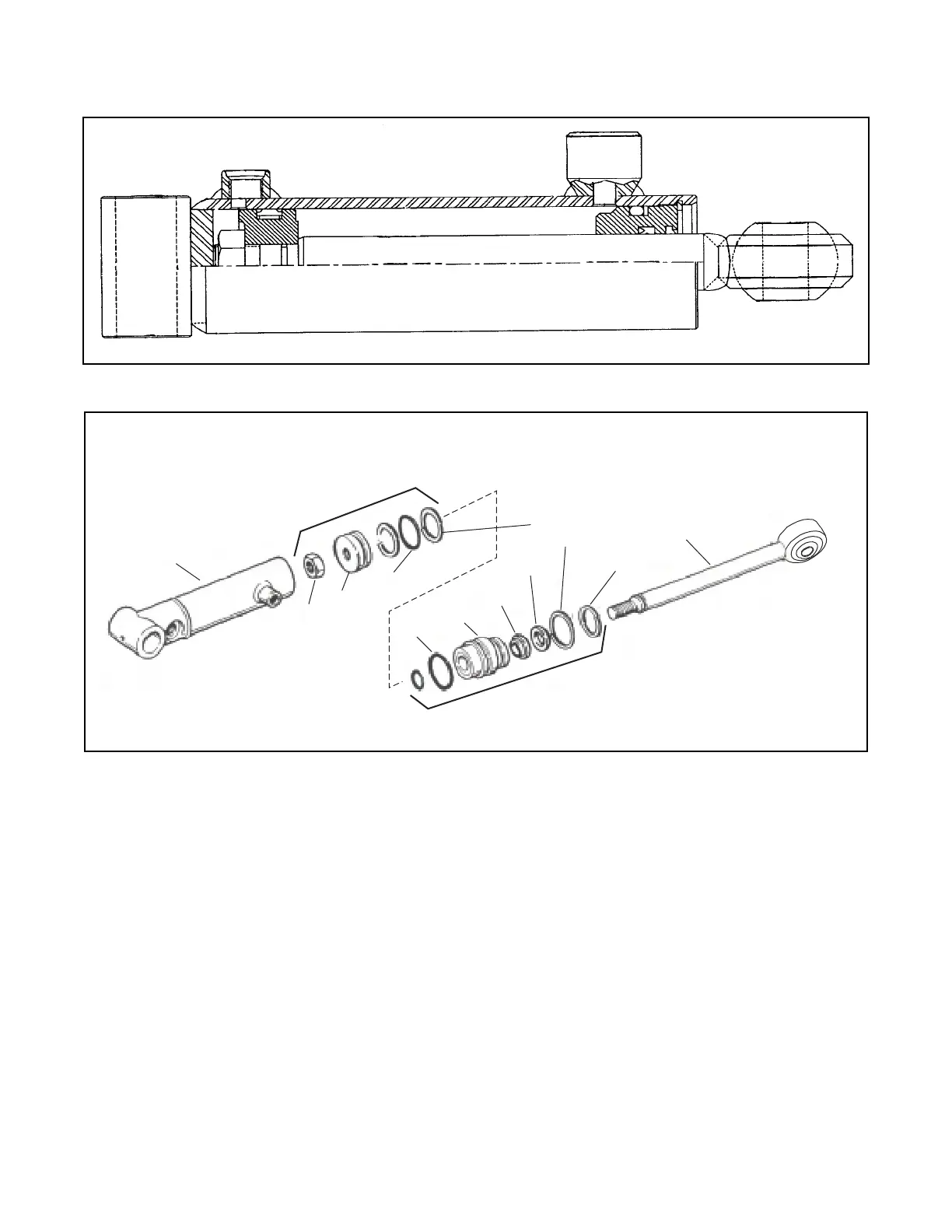

Figure 8J-2. Seal Kit Installation
Figure 8J-3. Lift Cylinder Assembly
INSTALLATION
See Section 9E.
Nut
Piston
O-Ring
O-Ring
Wiper
Lock
Ring
Barrel
Backup
Ring
Rod
Rod
Guide
Rod
Seal
STEP 1
Assemble piston
as shown.
STEP 2
Assemble rod guide
and install on rod.
STEP 3
Lubricate assembly.
Push rod into barrel.
Using a spanner wrench,
tighten the rod guide.
