CONTROLS
2C-5
SECTION 2C. CONTROL ADJUSTMENTS
GENERAL
Repair of controls is limited to adjustment of linkages
and cables, straightening of bent rods, or replacement.
Replace, do not adjust, worn or damaged components.
A qualified technician should perform adjustments. If
proper adjustment cannot be made, contact an autho-
rized Jacobsen dealer.
THROTTLE
Located to the right of the operator’s seat, the throttle
control is used to regulate engine rpm. Replace a worn
throttle cable as shown in Figure 2C-1.
Adjustment
Check throttle adjustment if engine runs below recom-
mended rpm with throttle lever in the high-speed posi-
tion.
1. Shut down the engine and remove the ignition
key.
2. Unlatch the seat platform. Pivot the seat and seat
platform to the full upward position.
3. Loosen the throttle cable swivel clamp on the
injection pump.
4. Position the throttle lever in the high-speed posi-
tion with 0.0625 - 0.25 inch (2-6 mm) gap between
lever and panel.
5. Place the engine throttle lever against the max
speed screw.
6. Tighten the throttle cable swivel clamp on the
injection pump.

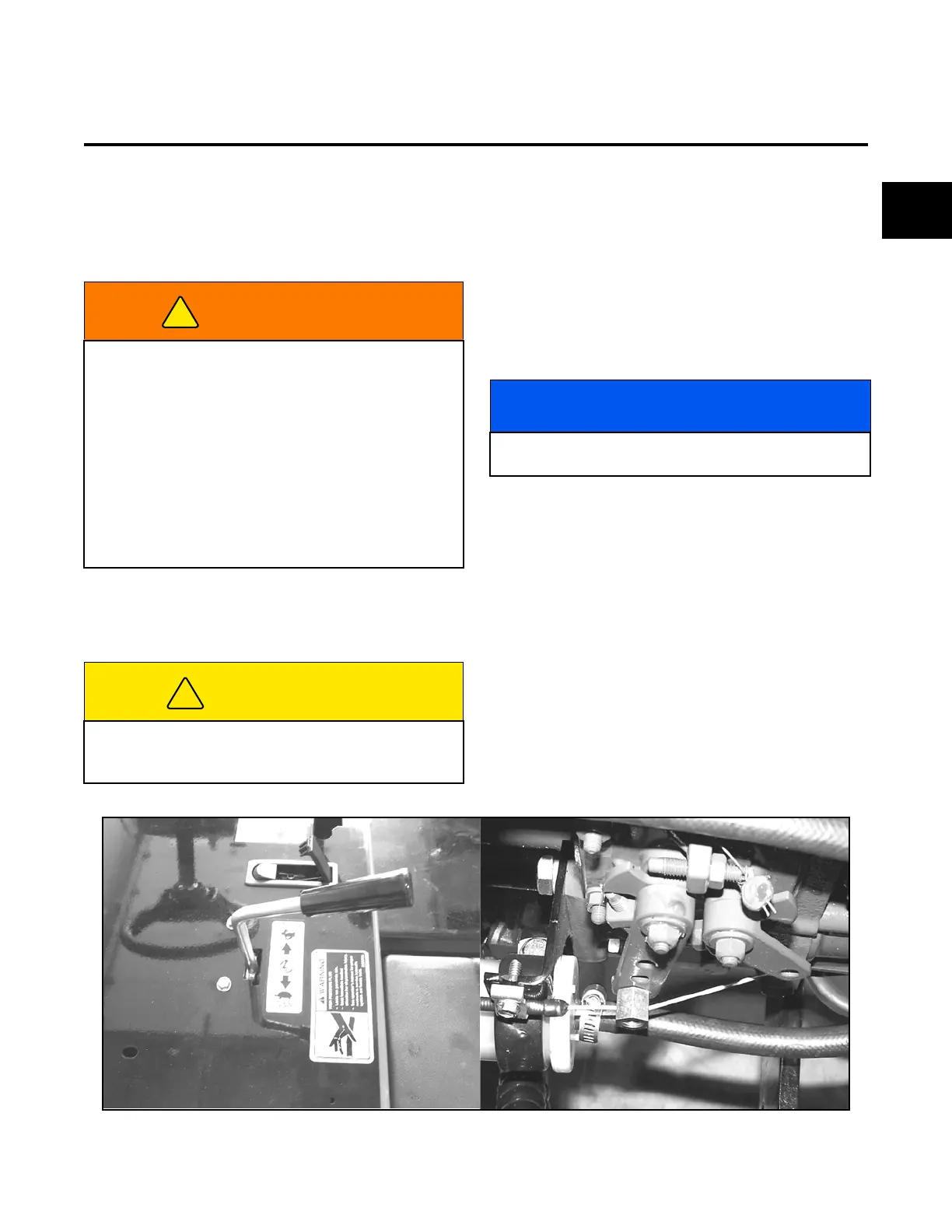

Figure 2C-1. Throttle Control Adjustment
WARNING
To prevent injury, lower implements to the ground,
disengage all drives, engage parking brake, stop
engine, and remove the key from the ignition switch
before making any adjustments or performing main-
tenance.
Make sure the tractor is parked on a solid and level
surface. Never work on a tractor that is supported
only by a jack. Always use jack stands.
If only the front or rear of the tractor is raised, place
chocks in front of and behind the wheels that are not
raised.
CAUTION
Be careful to prevent entrapment of the hands and
fingers between moving and fixed components of
the machine.
NOTICE
Refer to the Engine Owner’s Manual supplied by the
engine manufacturer.
2C
