SECTION 8A. REPAIR, SERVICE TOOLS, AND MATERIALS
MATERIALS REQUIRED
l

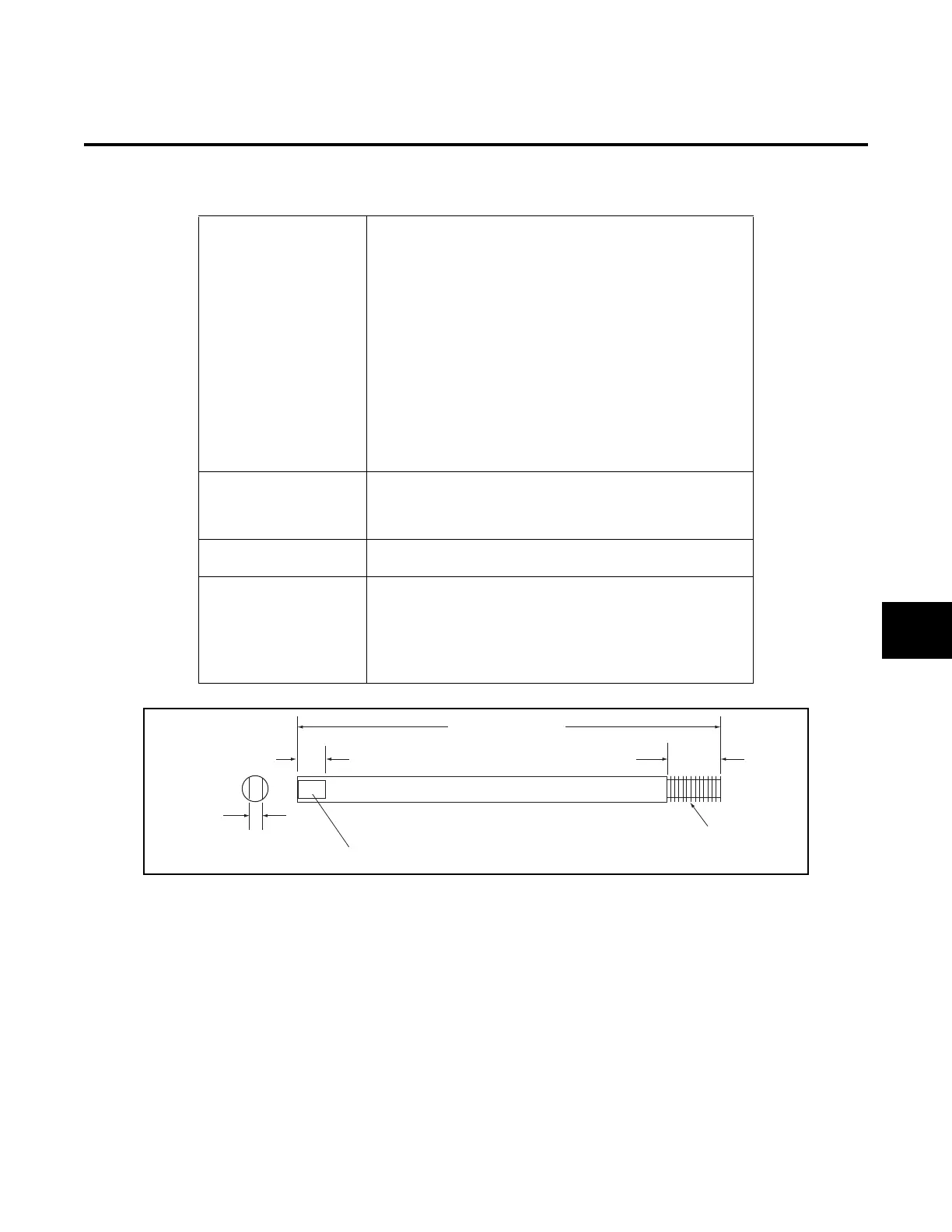

Figure 8A-1. Alignment Studs
Tools required:
Standard automotive hand tools, including torque
wrench, seal drivers, snap ring pliers, and bearing
driver
Hydraulic fitting and gauge kit (#JAC5001A)
Tachometer
Hydra sleuth or in-line tester equipped with load valve
(#JAC5095)
Wheel restraint (Figure 8A-2)
Hydraulic press
Portable in-line filter (#JAC5097)
Shaft face seal installation tool (Eaton Tool 600421-2)
Fabricated hydro lock linkage
Bullet for 1 -1/4”diameter shafts (Eaton Tool 600463)
Cleaning materials:
Stoddard solvent or equivalent
Detergent and water
Loctite “Locquic” Primer “T”
Lubricants:
Refer to Section 11
Other service items:
Seal and Repair Kits (available from Jacobsen deal-
ers)
Liquid gasket
Loctite 242 Blue
Alignment studs (See Figure 8A-1)
200 mm (8 inch)
Approx. 13 (0.5)
25 mm
(1 inch)
7/16–20 UNF
6.3 (0.25)
11 mm (7/16 inch) Dia. Steel Rod
Grind Flat Spots on Each Side
