Rotating Group

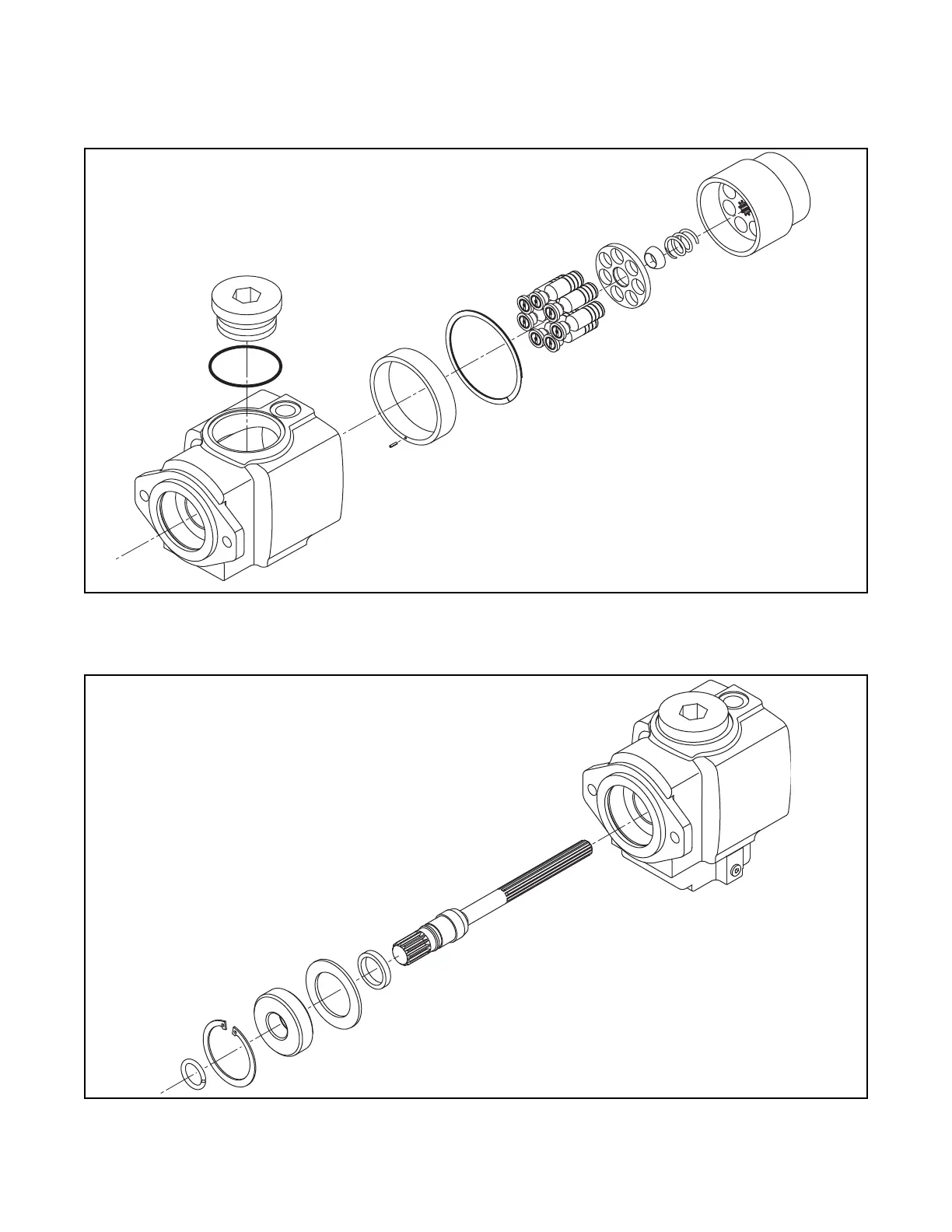

Figure 8D-8. Rotating Group Disassembly
Drive Shaft Group
Figure 8D-9. Drive Shaft Group Disassembly
Cylinder
Barrel
Shoe
Retainer
Spring
Ball
Fulcrum
Shoe
Retainer
Pistons
Retaining
Ring
Hydrodynamic
Bearing
O-Ring
